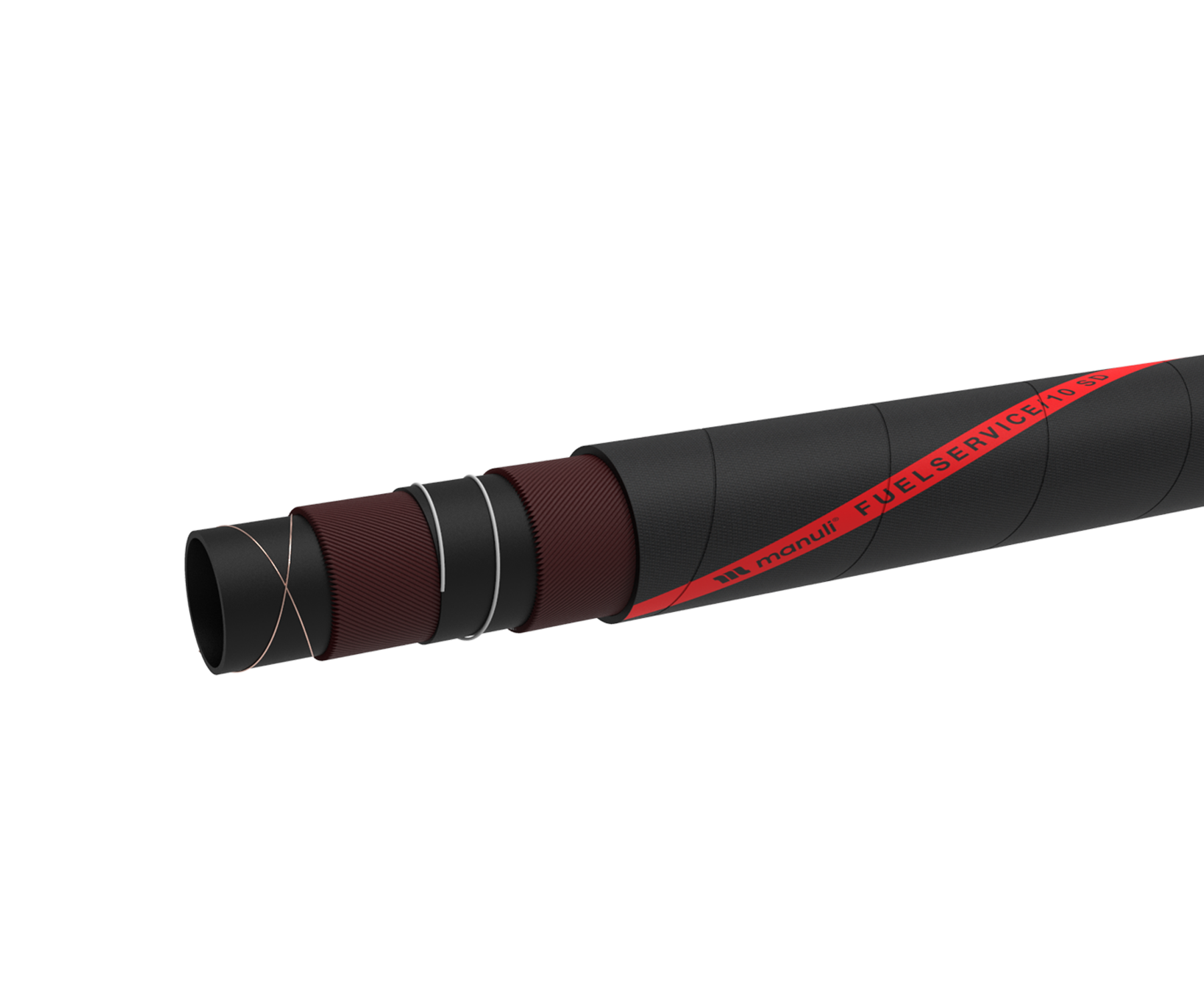

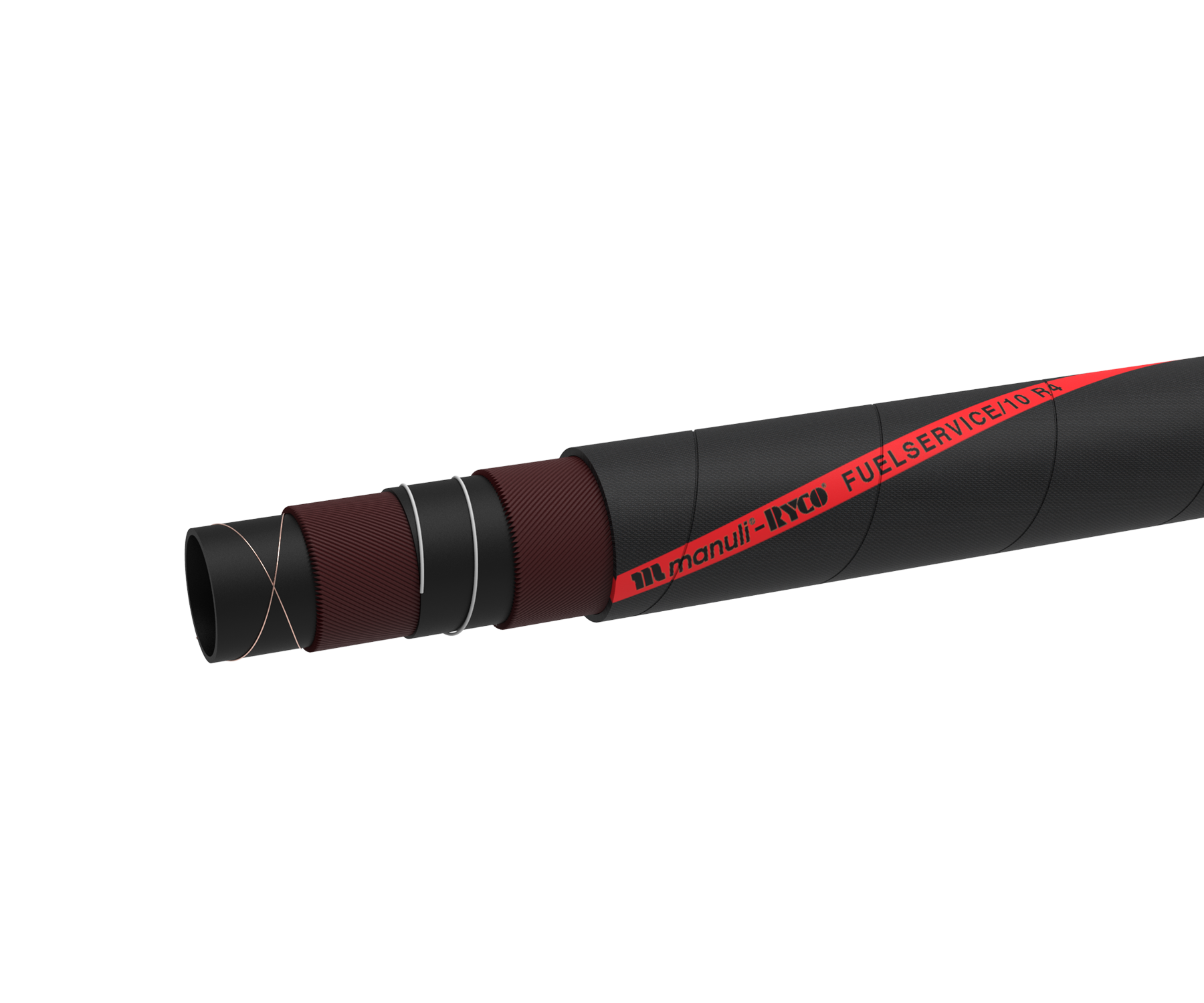

FUELSERVICE/10 R4
FUEL & OIL HOSE
KEY FEATURES
• Suitable as SAE J517 Type 100R4
• Hardwall suction and delivery structure
• Compact, lightweight and flexible
• Robust hose structure for longer life in severe applications
• Long length assemblies available – Max length: 60m
• Vacuum resistance: -0.9 bar
APPLICATIONS & FLUIDS
• Fuels & oils with aromatic content up to 50%
| CONTINUOUS SERVICE TEMPERATURE RANGE -30 °C, -22 °F 90 °C, 194 °F TUBE Black NBR rubber REINFORCEMENT COVER APPLICABLE SPECS STANDARD PACKAGING |

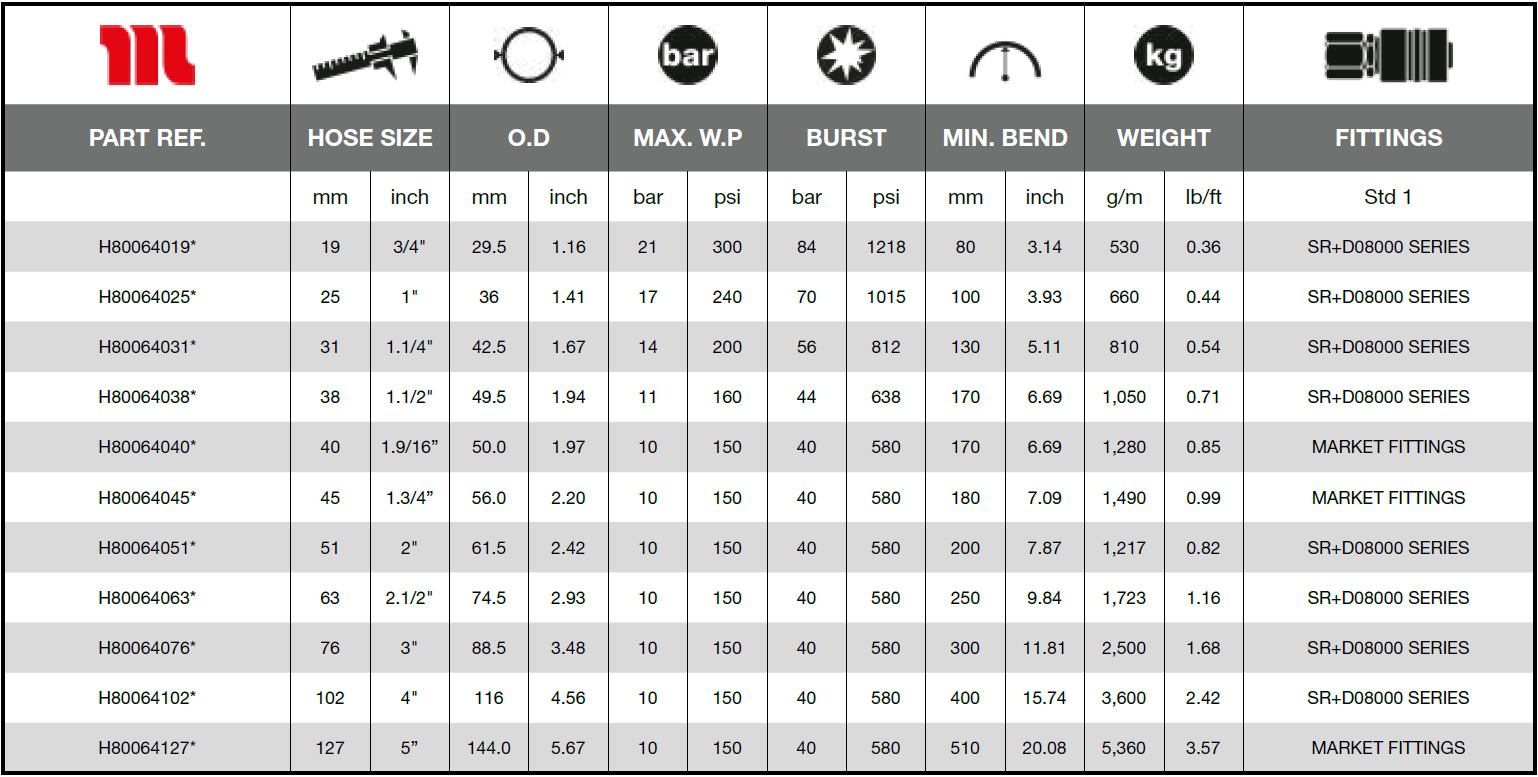

| TECHNICAL DATA | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
||||||
| PART REF. | HOSE SIZE | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | ||||||
| mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | |
| H80064019* | 19 | 3/4″ | 29.5 | 1.16 | 21 | 300 | 84 | 1,218 | 80 | 3.14 | 530 | 0.36 | SR+D08000 SERIES |
| H80064025* | 25 | 1″ | 36 | 1.41 | 17 | 240 | 70 | 1015 | 100 | 3.93 | 660 | 0.44 | SR+D08000 SERIES |
| H80064031* | 31 | 1.1/4″ | 42.5 | 1.67 | 14 | 200 | 56 | 812 | 130 | 5.11 | 810 | 0.54 | SR+D08000 SERIES |
| H80064038* | 38 | 1.1/2″ | 49.5 | 1.94 | 11 | 160 | 44 | 638 | 170 | 6.69 | 1,050 | 0.71 | SR+D08000 SERIES |
| H80064040* | 40 | 1.9/16” | 50.0 | 1.97 | 10 | 150 | 40 | 580 | 170 | 6.69 | 1,280 | 0.85 | MARKET FITTINGS |
| H80064045* | 45 | 1.3/4” | 56.0 | 2.2 | 10 | 150 | 40 | 580 | 180 | 7.09 | 1,490 | 0.99 | MARKET FITTINGS |
| H80064051* | 51 | 2″ | 61.5 | 2.42 | 10 | 150 | 40 | 580 | 200 | 7.87 | 1,217 | 0.82 | SR+D08000 SERIES |
| H80064063* | 63 | 2.1/2″ | 74.5 | 2.93 | 10 | 150 | 40 | 580 | 250 | 9.84 | 1,723 | 1.16 | SR+D08000 SERIES |
| H80064076* | 76 | 3″ | 88.5 | 3.48 | 10 | 150 | 40 | 580 | 300 | 11.81 | 2,500 | 1.68 | SR+D08000 SERIES |
| H80064102* | 102 | 4″ | 116 | 4.56 | 10 | 150 | 40 | 580 | 400 | 15.74 | 3,600 | 2.42 | SR+D08000 SERIES |
| H80064127* | 127 | 5” | 144.0 | 5.67 | 10 | 150 | 40 | 580 | 510 | 20.08 | 5,360 | 3.57 | MARKET FITTINGS |
