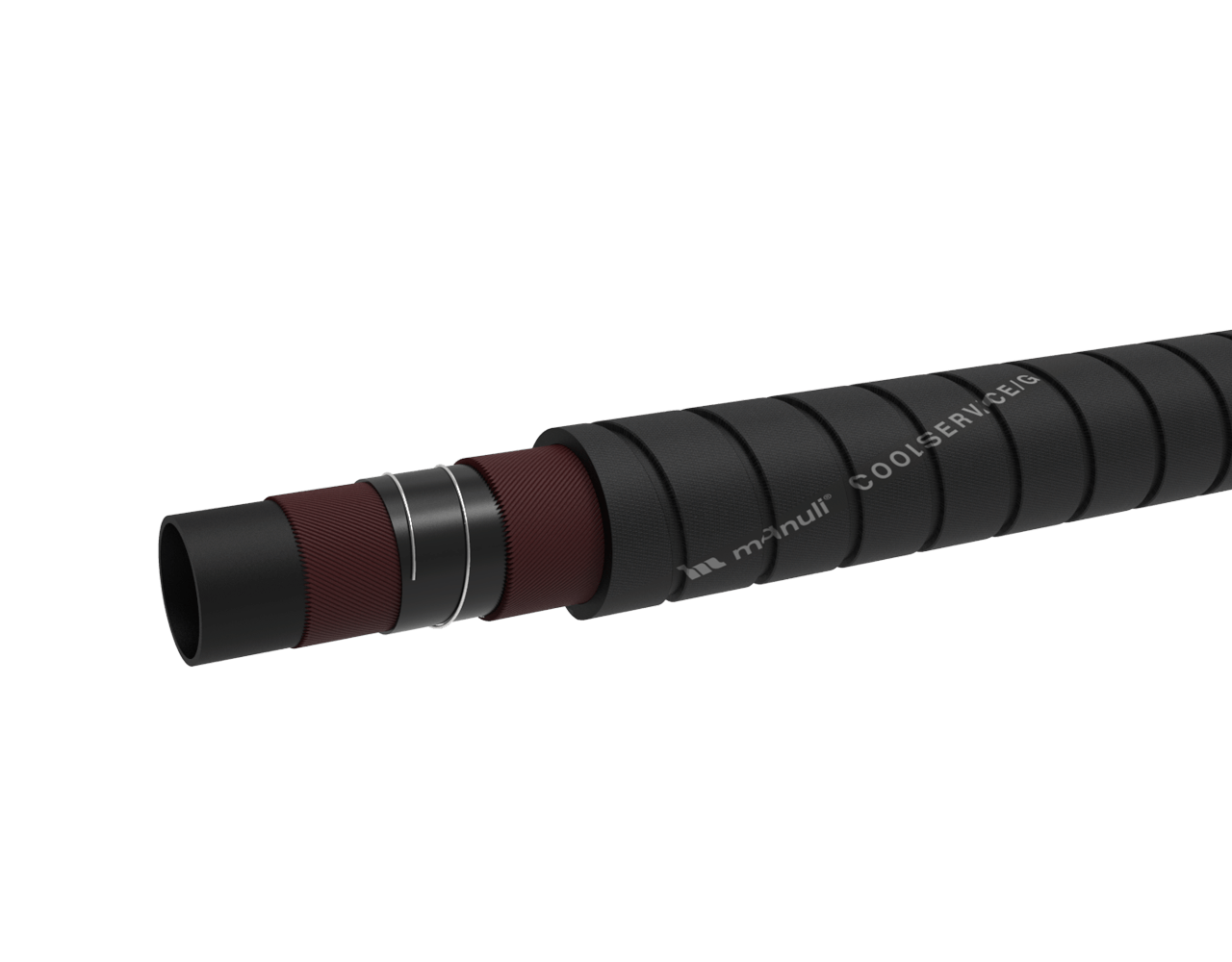

COOLSERVICE/G
HIGH FLEXIBILITY WATER GLYCOL COOLING SUCTION & DELIVERY HOSE
KEY FEATURES
• Hardwall hose used for the suction and delivery of waterglycol cooling lines at high temperature
• Flat corrugated (grooved) cover for improved flexibility and reduced bend radius
• Long lasting in severe applications
• Resistance to Vacuum
• Max. length: 40m
APPLICATIONS & FLUIDS
• Suction and Delivery hose for hot water and coolant fluids, applied in engine cooling and heating systems
• Radiator hose
• Outstanding flexibility, installation in very narrow spaces
• Water and water-glycol solutions
|
CONTINUOUS SERVICE TEMPERATURE RANGE TUBE REINFORCEMENT COVER APPLICABLE SPECS STANDARD PACKAGING |

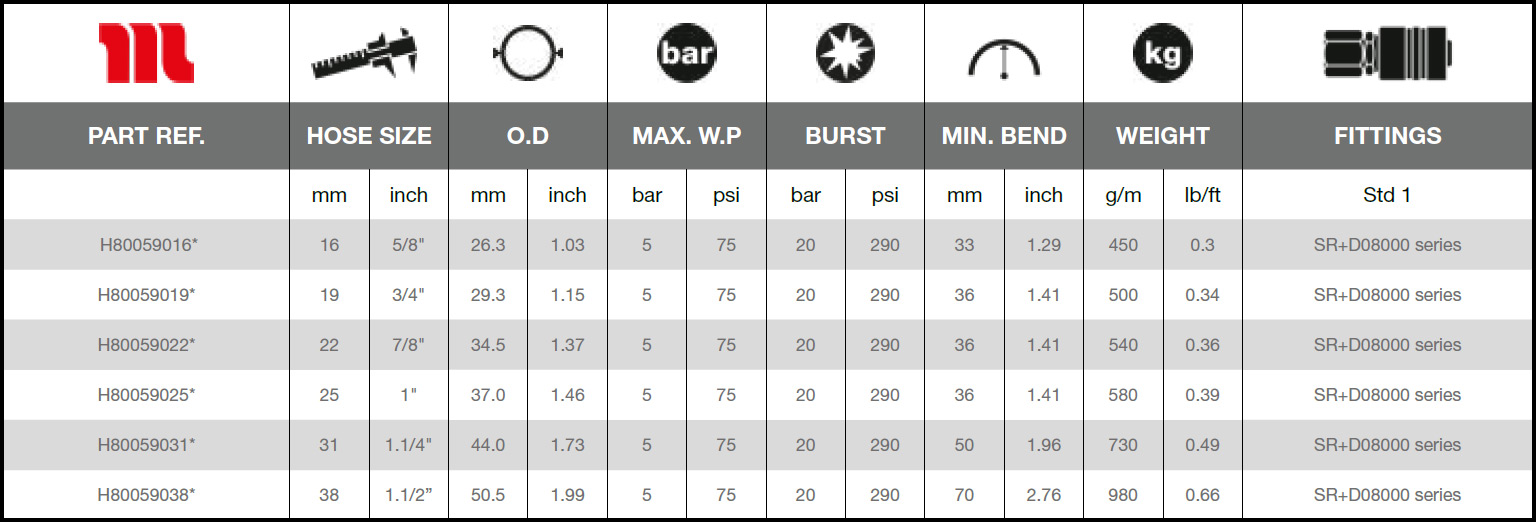

| TECHNICAL DATA | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
||||||
| PART REF. | HOSE SIZE | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | ||||||
| mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | |
| H80059016* | 16 | 5/8″ | 26.3 | 1.03 | 5 | 75 | 20 | 290 | 33 | 1.29 | 450 | 0.30 | SR+D08000 series |
| H80059019* | 19 | 3/4″ | 29.3 | 1.15 | 5 | 75 | 20 | 290 | 36 | 1.41 | 500 | 0.34 | SR+D08000 series |
| H80059022* | 22 | 7/8″ | 34.5 | 1.37 | 5 | 75 | 20 | 290 | 36 | 1.41 | 540 | 0.36 | SR+D08000 series |
| H80059025* | 25 | 1″ | 37.0 | 1.46 | 5 | 75 | 20 | 290 | 36 | 1.41 | 580 | 0.39 | SR+D08000 series |
| H80059031* | 31 | 1.1/4″ | 44.0 | 1.73 | 5 | 75 | 20 | 290 | 50 | 1.96 | 730 | 0.49 | SR+D08000 series |
| H80059038* | 38 | 1.1/2” | 50.5 | 1.99 | 5 | 75 | 20 | 290 | 70 | 2.76 | 980 | 0.66 | SR+D08000 series |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
