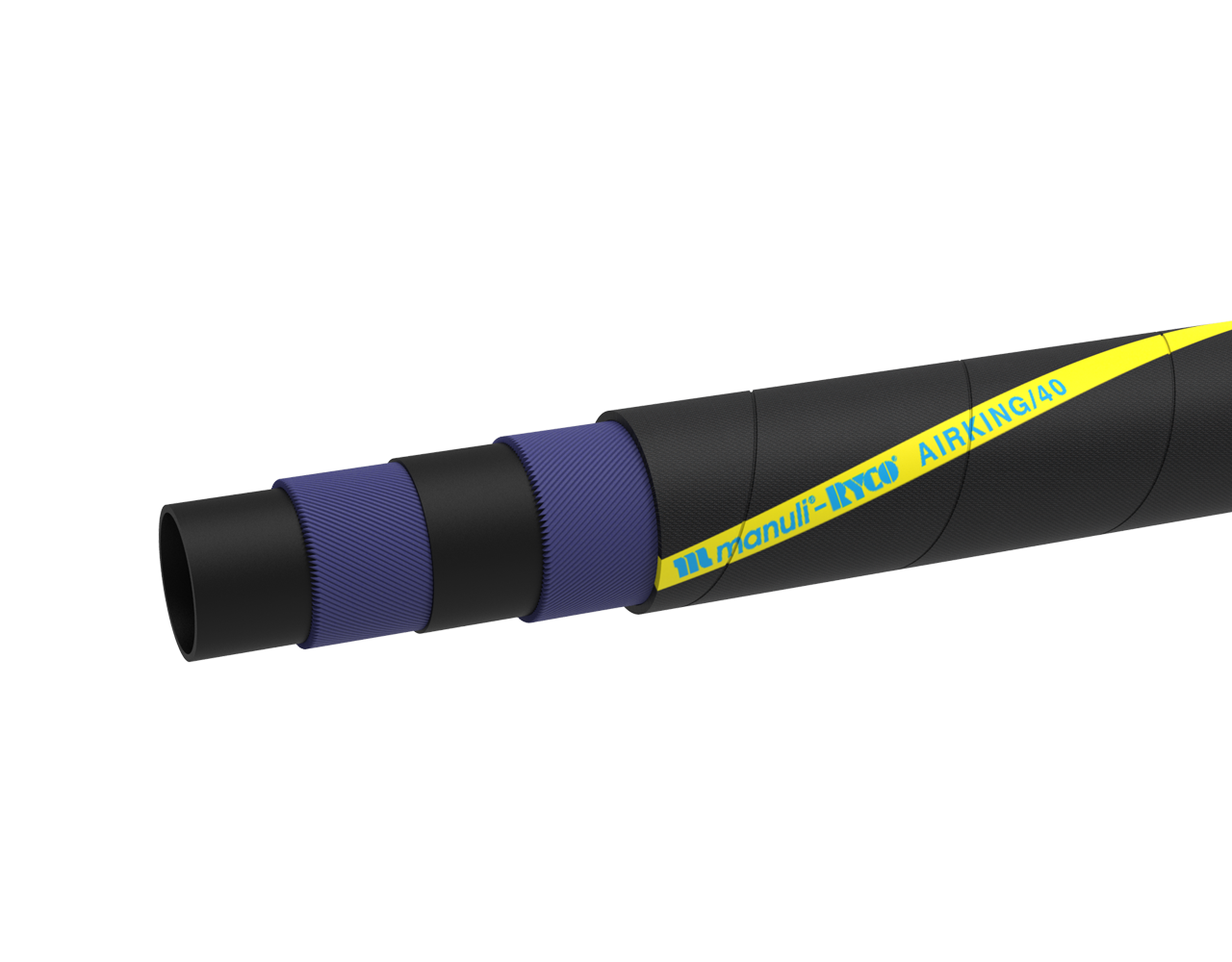

AIRKING/40

HEAVY-DUTY PNEUMATIC TOOLS IN ROAD CONSTRUCTION, RAILWAYS, TUNNELLING, MINING ETC.

KEY FEATURES
• Hardwall delivery structure
• Compact and flexible
• Robust hose structure for longer life in severe applications
• Long length assemblies available – Max length: 60m

APPLICATIONS & FLUIDS
• Delivery hose for high temperature compressed air suitable for heavy duty pneumatic tools in road construction, railway works, tunnelling and mining

CONTINUOUS SERVICE TEMPERATURE RANGE
-30 °C, -22 °F
160 °C, 320 °F

TUBE
Black EPM rubber

REINFORCEMENT
High tensile synthetic cord

COVER
Black EPDM rubber, abrasion and weathering resistant (yellow cover available on request). Cover is pin-pricked.

APPLICABLE SPECS
Manuli design, safety factor 3:1

STANDARD PACKAGING
Coil

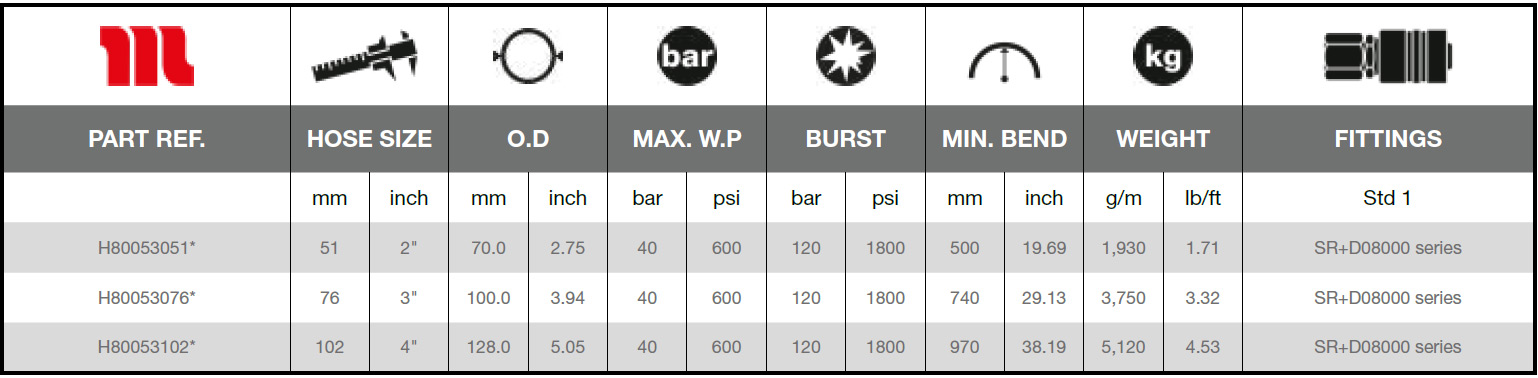

TECHNICAL DATA

PART REF.	HOSE SIZE		O.D		MAX. W.P		BURST		MIN. BEND		WEIGHT		FITTINGS
	mm	inch	mm	inch	bar	psi	bar	psi	mm	inch	g/m	lb/ft	Std 1
H80053051*	51	2″	70.0	2.75	40	600	120	1,800	500	19.69	1,930	1.71	SR+D08000 series
H80053076*	76	3″	100.0	3.94	40	600	120	1,800	740	29.13	3,750	3.32	SR+D08000 series
H80053102*	102	4″	128.0	5.05	40	600	120	1,800	970	38.19	5,120	4.53	SR+D08000 series

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
