WATERFLAT 5/10
LAYFLAT DELIVERY HOSE FOR GENERAL PURPOSE WATER
KEY FEATURES
• Layflat delivery hose
• Compact, lightweight and flexible
• Robust hose structure for longer life in severe applications
• 10 bar: Max length: 61m (DN51 – DN152); 40m (DN203); 20m (DN254 – DN305)
• 5 bar: Max length: 12m
APPLICATIONS & FLUIDS
• Water, liquid fertilizer and non-corrosive inert fluids for irrigation
• Submersible pumps and general industrial applications
| CONTINUOUS SERVICE TEMPERATURE RANGE -30 °C, -22 °F 80 °C, 176 °F TUBE REINFORCEMENT COVER APPLICABLE SPECS STANDARD PACKAGING |

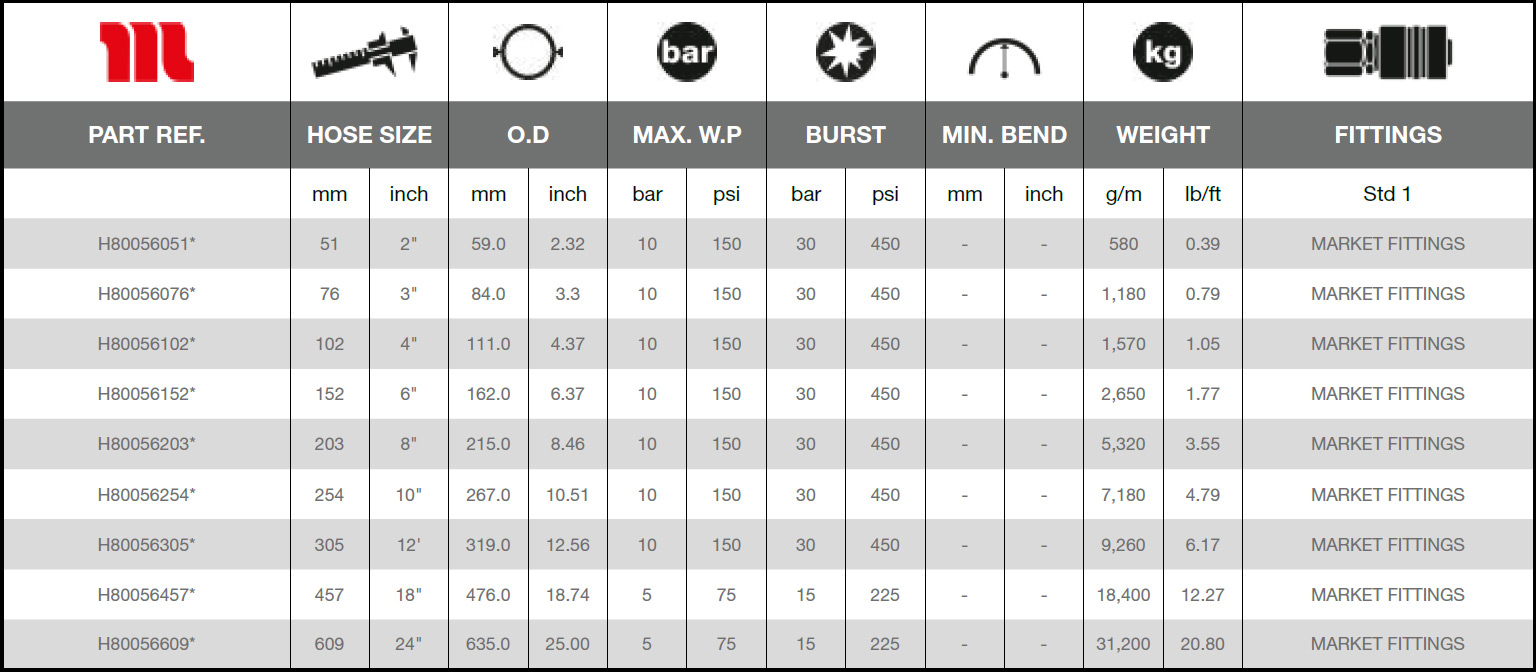

| TECHNICAL DATA | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
||||||
| PART REF. | HOSE SIZE | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | ||||||
| mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | |
| H80056051* | 51 | 2″ | 59.0 | 2.32 | 10 | 150 | 30 | 450 | – | – | 580 | 0.39 | MARKET FITTINGS |
| H80056076* | 76 | 3″ | 84.0 | 3.30 | 10 | 150 | 30 | 450 | – | – | 1,180 | 0.79 | MARKET FITTINGS |
| H80056102* | 102 | 4″ | 111.0 | 4.37 | 10 | 150 | 30 | 450 | – | – | 1,570 | 1.05 | MARKET FITTINGS |
| H80056152* | 152 | 6″ | 162.0 | 6.37 | 10 | 150 | 30 | 450 | – | – | 2,650 | 1.77 | MARKET FITTINGS |
| H80056203* | 203 | 8″ | 215.0 | 8.46 | 10 | 150 | 30 | 450 | – | – | 5,320 | 3.55 | MARKET FITTINGS |
| H80056254* | 254 | 10″ | 267.0 | 10.51 | 10 | 150 | 30 | 450 | – | – | 7,180 | 4.79 | MARKET FITTINGS |
| H80056305* | 305 | 12′ | 319.0 | 12.56 | 10 | 150 | 30 | 450 | – | – | 9,260 | 6.17 | MARKET FITTINGS |
| H80056457* | 457 | 18″ | 476.0 | 18.74 | 5 | 75 | 15 | 225 | – | – | 18,400 | 12.27 | MARKET FITTINGS |
| H80056609* | 609 | 24″ | 635.0 | 25.00 | 5 | 75 | 15 | 225 | – | – | 31,200 | 20.80 | MARKET FITTINGS |
