AIRSERVICE/27

WATER AND AIR COMPRESSOR HOSE, HEAVY DUTY

KEY FEATURES
• Softwall delivery structure
• Robust heavy duty hose structure
• Long lasting in severe applications
• Long length assemblies available – Max length: 60m

APPLICATIONS & FLUIDS
• Water or compressed air with oil traces, to be used in mining, construction, etc.

CONTINUOUS SERVICE TEMPERATURE RANGE
-35 °C, -31 °F
80 °C, 176 °F

TUBE
Black, synthetic SBR rubber, resistant to oil traces

REINFORCEMENT
High tensile textile layers

COVER
Yellow synthetic NBR/PVC rubber, long lasting, weathering and ozone resistant. Cover is pin-pricked.

APPLICABLE SPECS
Manuli design: safety factor 3:1

STANDARD PACKAGING
Coil

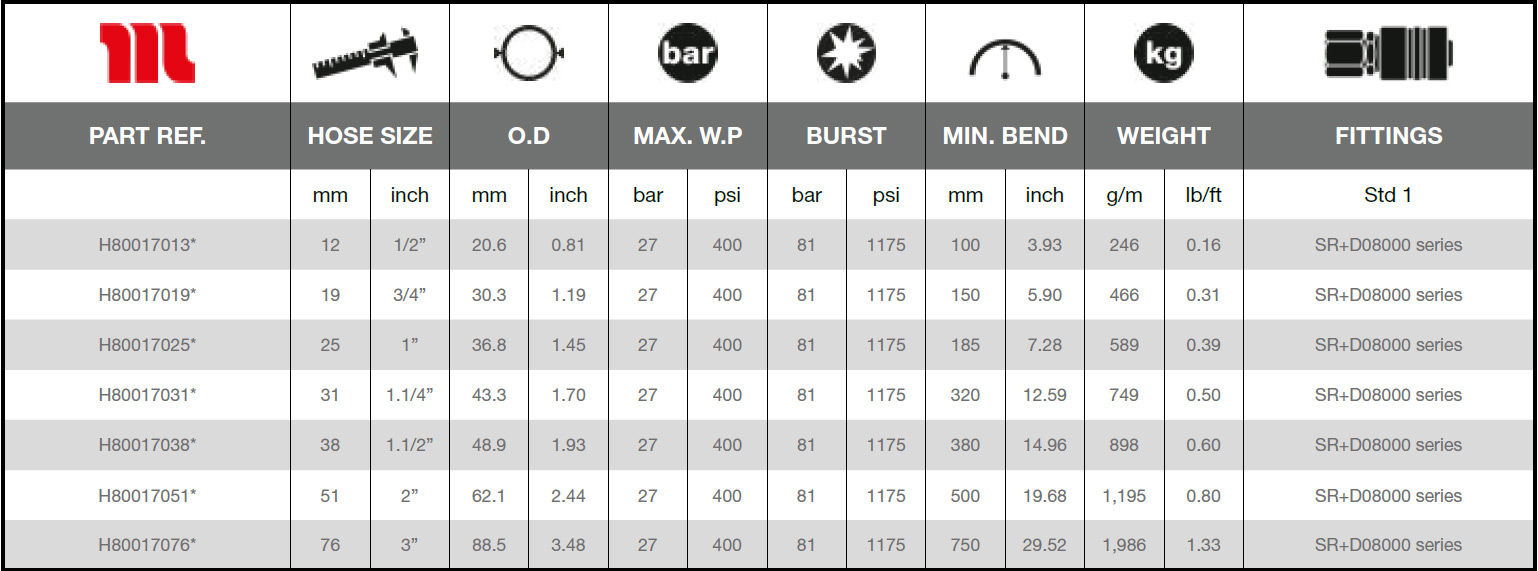

TECHNICAL DATA

PART REF.	HOSE SIZE		O.D		MAX. W.P		BURST		MIN. BEND		WEIGHT		FITTINGS
	mm	inch	mm	inch	bar	psi	bar	psi	mm	inch	g/m	lb/ft	Std 1
H80017013*	12	1/2”	20.6	0.81	27	400	81	1,175	100	3.93	246	0.16	SR+D08000 series
H80017019*	19	3/4”	30.3	1.19	27	400	81	1,175	150	5.9	466	0.31	SR+D08000 series
H80017025*	25	1”	36.8	1.45	27	400	81	1,175	185	7.28	589	0.39	SR+D08000 series
H80017031*	31	1.1/4”	43.3	1.70	27	400	81	1,175	320	12.59	749	0.50	SR+D08000 series
H80017038*	38	1.1/2”	48.9	1.93	27	400	81	1,175	380	14.96	898	0.60	SR+D08000 series
H80017051*	51	2”	62.1	2.44	27	400	81	1175	500	19.68	1,195	0.80	SR+D08000 series
H80017076*	76	3”	88.5	3.48	27	400	81	1175	750	29.52	1,986	1.33	SR+D08000 series

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
