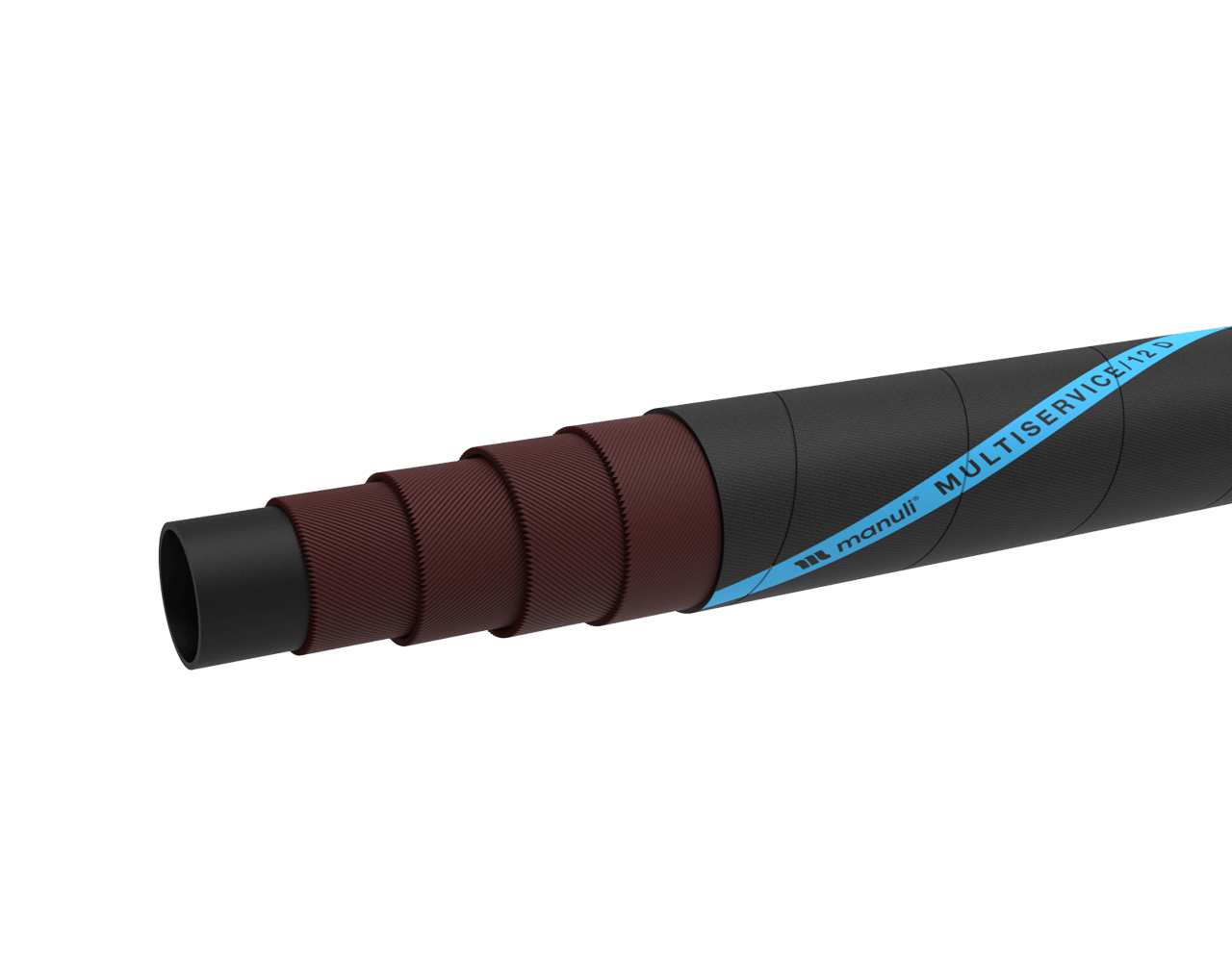

MULTISERVICE/12 D

WATER & AIR HOSE

KEY FEATURES
• Softwall delivery structure
• Highly robust hose structure
• Long lasting in severe applications
• Long length assemblies available – Max length: 60m

APPLICATIONS & FLUIDS
• Water or compressed air, to be used in mining, construction, shipyards, etc.

CONTINUOUS SERVICE TEMPERATURE RANGE
-35 °C, -31 °F
80 °C, 176 °F

TUBE
Black, smooth, synthetic SBR rubber

REINFORCEMENT
High tensile synthetic cord

COVER
Black synthetic SBR rubber, long lasting, weathering and ozone resistant. Cover is pin-pricked.

APPLICABLE SPECS
Manuli design, safety factor 3:1

STANDARD PACKAGING
Coil

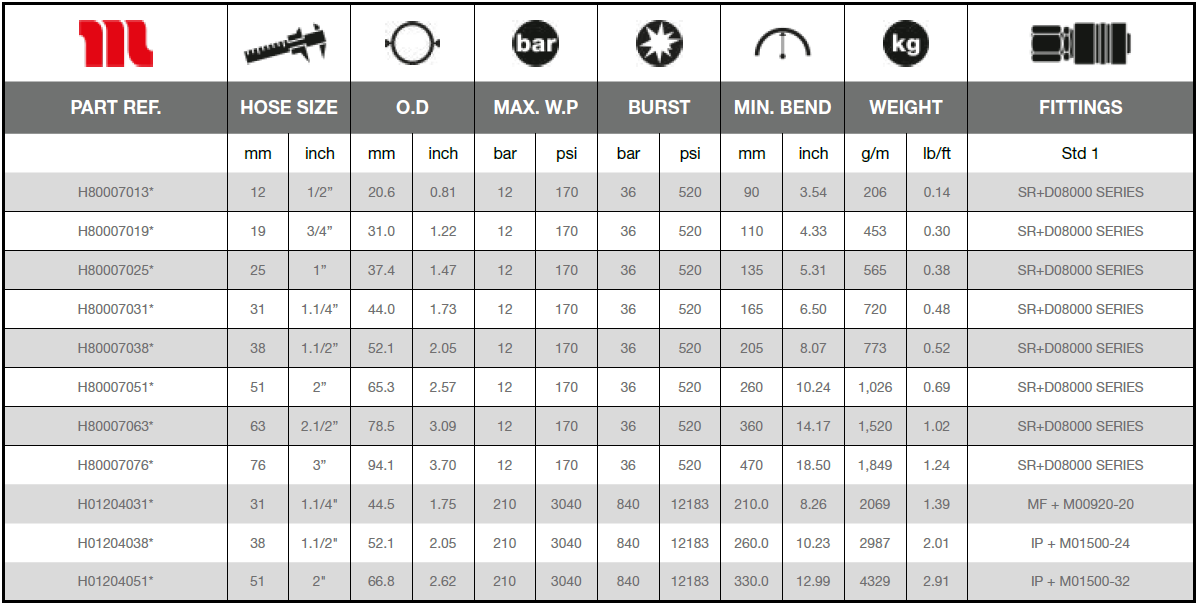

TECHNICAL DATA

PART REF.	HOSE SIZE		O.D		MAX. W.P		BURST		MIN. BEND		WEIGHT		FITTINGS
	mm	inch	mm	inch	bar	psi	bar	psi	mm	inch	g/m	lb/ft	Std 1
H80007013*	12	1/2”	20.6	0.81	12	170	36	520	90	3.54	206	0.14	SR+D08000 SERIES
H80007019*	19	3/4”	31.0	1.22	12	170	36	520	110	4.33	453	0.30	SR+D08000 SERIES
H80007025*	25	1”	37.4	1.47	12	170	36	520	135	5.31	565	0.38	SR+D08000 SERIES
H80007031*	31	1.1/4”	44.0	1.73	12	170	36	520	165	6.50	720	0.48	SR+D08000 SERIES
H80007038*	38	1.1/2”	52.1	2.05	12	170	36	520	205	8.07	773	0.52	SR+D08000 SERIES
H80007051*	51	2”	65.3	2.57	12	170	36	520	260	10.24	1,026	0.69	SR+D08000 SERIES
H80007063*	63	2.1/2”	78.5	3.09	12	170	36	520	360	14.17	1,520	1.02	SR+D08000 SERIES
H80007076*	76	3”	94.1	3.70	12	170	36	520	470	18.50	1,849	1.24	SR+D08000 SERIES
H01204031*	31	1.1/4″	44.5	1.75	210	3,040	840	12,183	210	8.26	2,069	1.39	MF + M00920-20
H01204038*	38	1.1/2″	52.1	2.05	210	3,040	840	12,183	260	10.23	2,987	2.01	IP + M01500-24
H01204051*	51	2″	66.8	2.62	210	3,040	840	12,183	330	12.99	4329	2.91	IP + M01500-32

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
