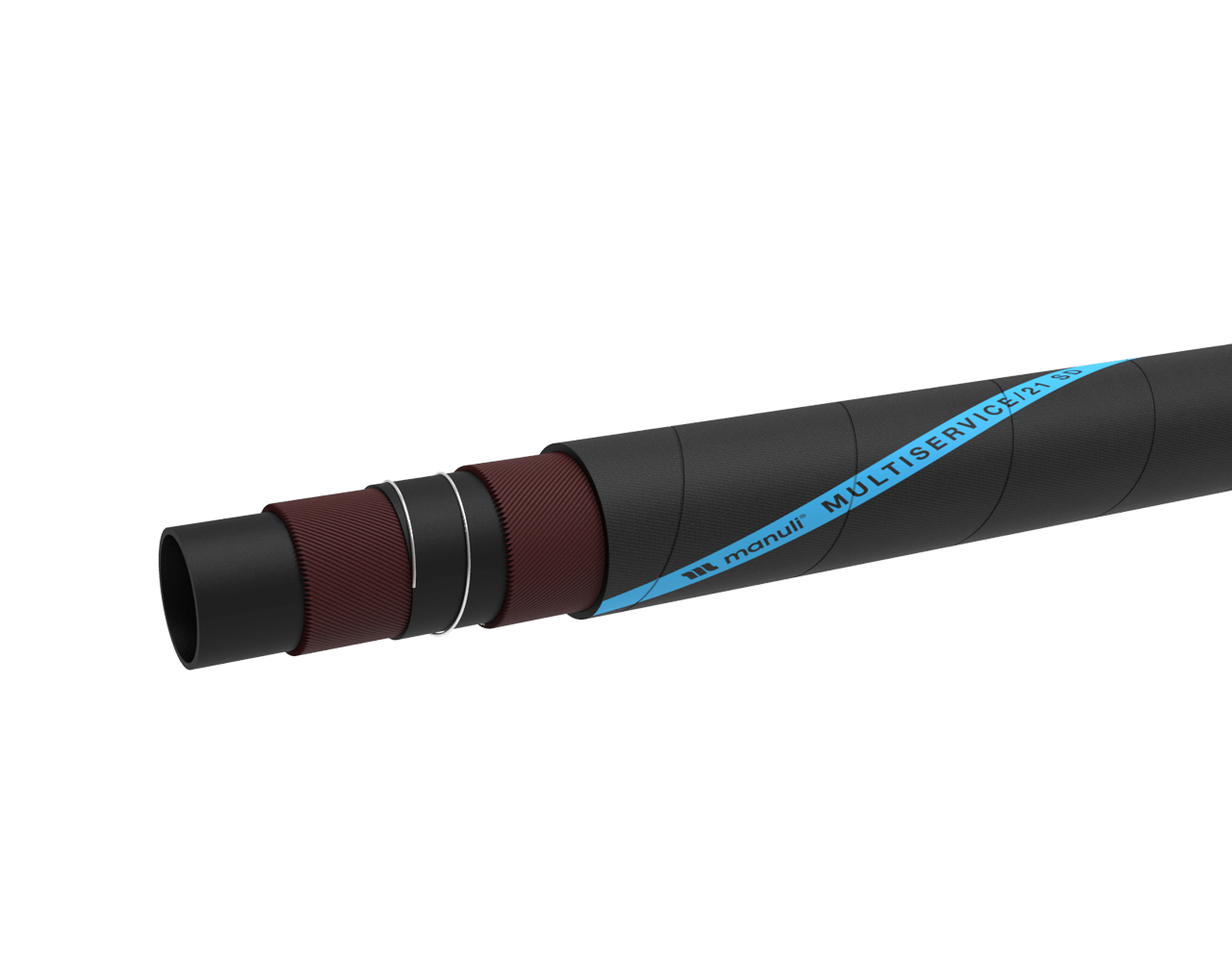

MULTISERVICE/21 SD

WATER & AIR HOSE, HEAVY DUTGY

KEY FEATURES
• Hardwall suction and delivery structure
• Compact, lightweight and flexible
• Robust hose structure for longer life in severe applications
• Long length assemblies available – Max length: 60m

APPLICATIONS & FLUIDS
• Water or compressed air, to be used in mining, construction, shipyards, etc.

CONTINUOUS SERVICE TEMPERATURE RANGE
-35 °C, -31 °F
80 °C, 176 °F

TUBE
Black, smooth, synthetic SBR rubber

REINFORCEMENT
High tensile synthetic cord and steel helix body wire

COVER
Black synthetic SBR rubber, long lasting, weathering and ozone resistant. Cover is pin-pricked.

APPLICABLE SPECS
Manuli design, safety factor 3:1

STANDARD PACKAGING
Coil

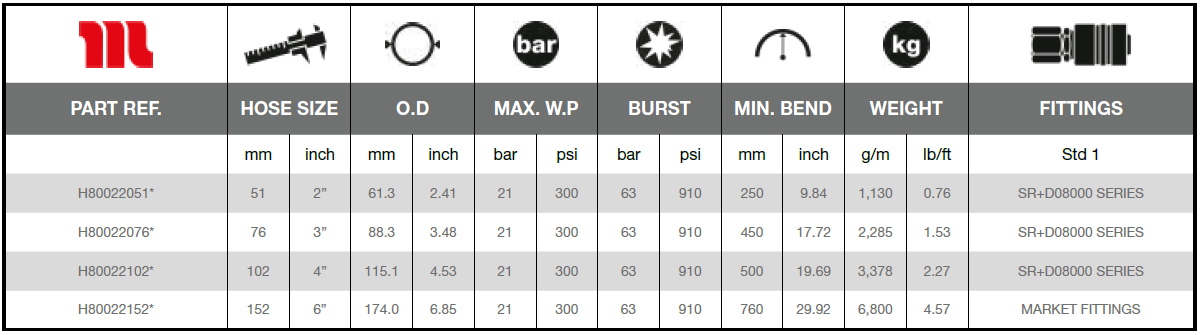

TECHNICAL DATA

PART REF.	HOSE SIZE		O.D		MAX. W.P		BURST		MIN. BEND		WEIGHT		FITTINGS
	mm	inch	mm	inch	bar	psi	bar	psi	mm	inch	g/m	lb/ft	Std 1
H80022051*	51	2”	61.3	2.41	21	300	63	910	250	9.84	1,130	0.76	SR+D08000 SERIES
H80022076*	76	3”	88.3	3.48	21	300	63	910	450	17.72	2,285	1.53	SR+D08000 SERIES
H80022102*	102	4”	115.1	4.53	21	300	63	910	500	19.69	3,378	2.27	SR+D08000 SERIES
H80022152*	152	6”	174.0	6.85	21	300	63	910	760	29.92	6,800	4.57	MARKET FITTINGS

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
