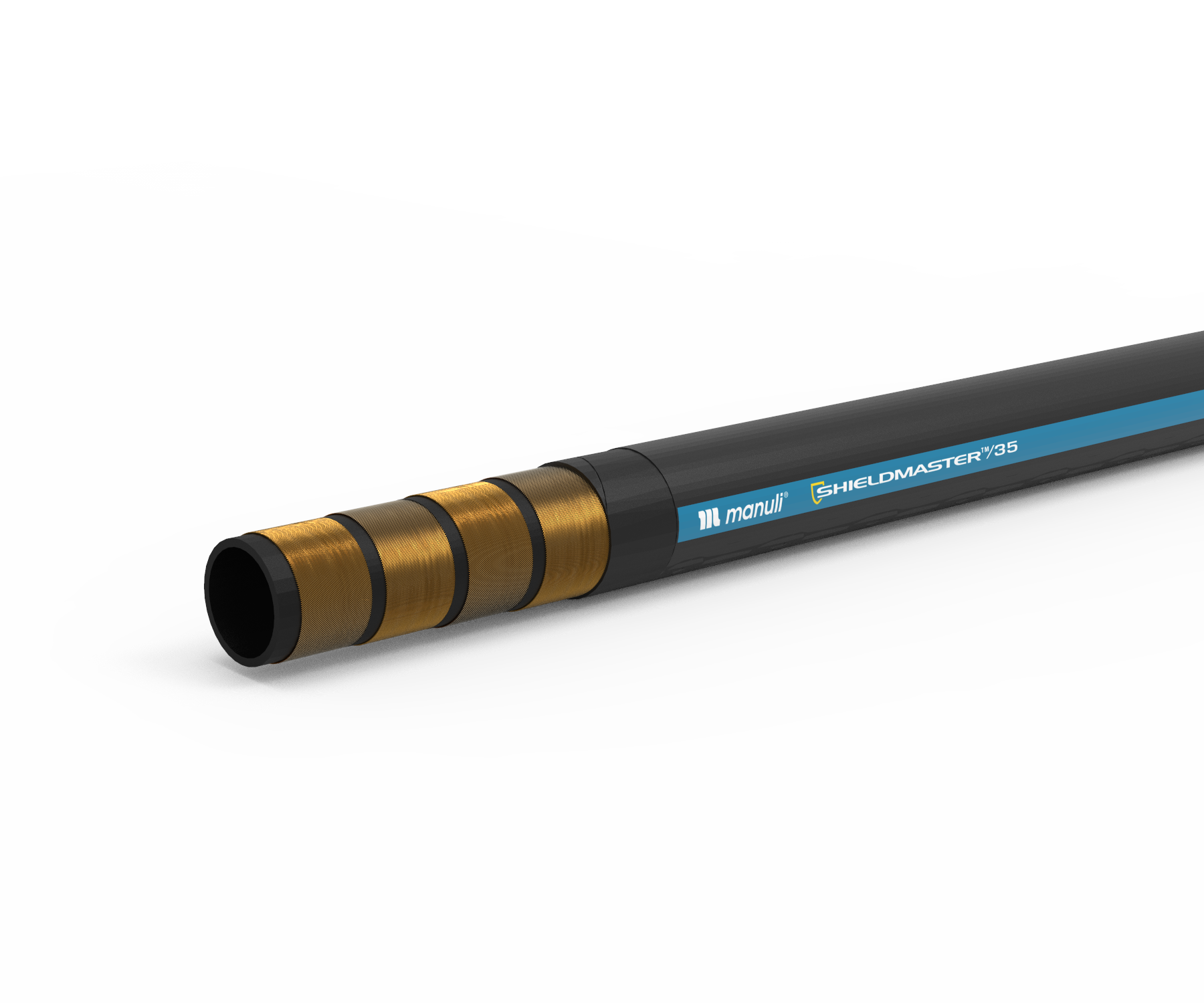

SHIELDMASTER/35

OUTSTANDING WEAR RESISTANCE

TECHNICAL DATA
# # # # # # # # #
PART REF. HOSE SIZE R.O.D O.D MAX. W.P BURST MIN. BEND WEIGHT FITTINGS
DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft Std 1 Std 2
H10119006* 6 -4 1/4” 11.3 0.44 13.1 0.52 350 5,070 1,400 20,300 45 1.77 288 0.19 MF+M00120-04 OPF-04
H10119008* 8 -5 5/16” 12.9 0.51 14.9 0.59 350 5,070 1,400 20,300 55 2.17 330 0.22 MF+M00120-05 OPF-05
H10119010* 10 -6 3/8” 15.0 0.59 16.8 0.66 350 5,070 1,400 20,300 65 2.56 393 0.26 MF+M00120-06 OPF-06
H10119012* 12 -8 1/2” 18.6 0.73 20.4 0.80 350 5,070 1,400 20,300 80 3.15 556 0.37 MF+M00120-08 OPK-08
H10119016* 16 -10 5/8” 23.5 0.93 25.9 1.02 350 5,070 1,400 20,300 100 3.94 964 0.65 MF+M00910-10 OPK-10
H10119019* 19 -12 3/4” 27.5 1.08 29.9 1.18 350 5,070 1,400 20,300 120 4.72 1,229 0.83 IP+M01500-12 SP+M05400-12
H10119025* 25 -16 1” 34.6 1.36 37.0 1.46 350 5,070 1,400 20,300 150 5.91 1,795 1.21 IP+M01500-16 SP+M05400-16
H10119031* 31 -20 1.1/4” 42.1 1.66 44.9 1.77 350 5,070 1,400 20,300 230 9.06 2,369 1.59 IP+M01500-20 SP+M05400-20
H10119038* 38 -24 1.1/2” 51.2 2.02 56.1 2.21 350 5,070 1,400 20,300 300 11.81 4,214 2.83 IP+M01600-24 SP+M05500-24
H10119051* 51 -32 2” 66.8 2.62 70.4 2.77 350 5,070 1,400 20,300 360 14.17 6,205 4.17 IP+M01800-32 SP+M05500-32

KEY FEATURES

• Outstanding abrasion and ozone resistance
• Compact and light structures
• Very low bend radius makes the product suitable for difficult installations
• Easy assembling and mounting operations (no protection sleeves required)
• Isobaric pressure rating
• Suitable for very cold environments

APPLICATIONS & FLUIDS

• High pressure hydraulic lines
• High resistance to abrasion conditions, including rubbing among hoses in bunches, alternative to spring guards, easy cleaning in dusty environments
• For severe environmental conditions, long resistance to ozone and weathering, cold temperatures, dirty industrial environments
• Skive and no-skive fitting solutions
• Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water

CONTINUOUS SERVICE TEMPERATURE RANGE

-46 °C, -50 °F
100 °C, 212 °F

TUBE

Oil resistant synthetic rubber

REINFORCEMENT

Two high tensile steel braids (DN 6-12); Four high tensile steel spirals (DN 16-31); Six high tensile steel spirals (DN 38-51)

COVER

SHIELD
Composite bi-layer structure with outstanding abrasion and ozone resistance

APPLICABLE SPECS

ISO 18752 Type B

TYPE APPROVALS

MSHA, FRAS (requested); CU-TR

REMARKS

Applications with material projections or winding on low bend radius pulley systems should be field tested before use; high abrasion resistant rubber cover hoses are appropriate in most cases
