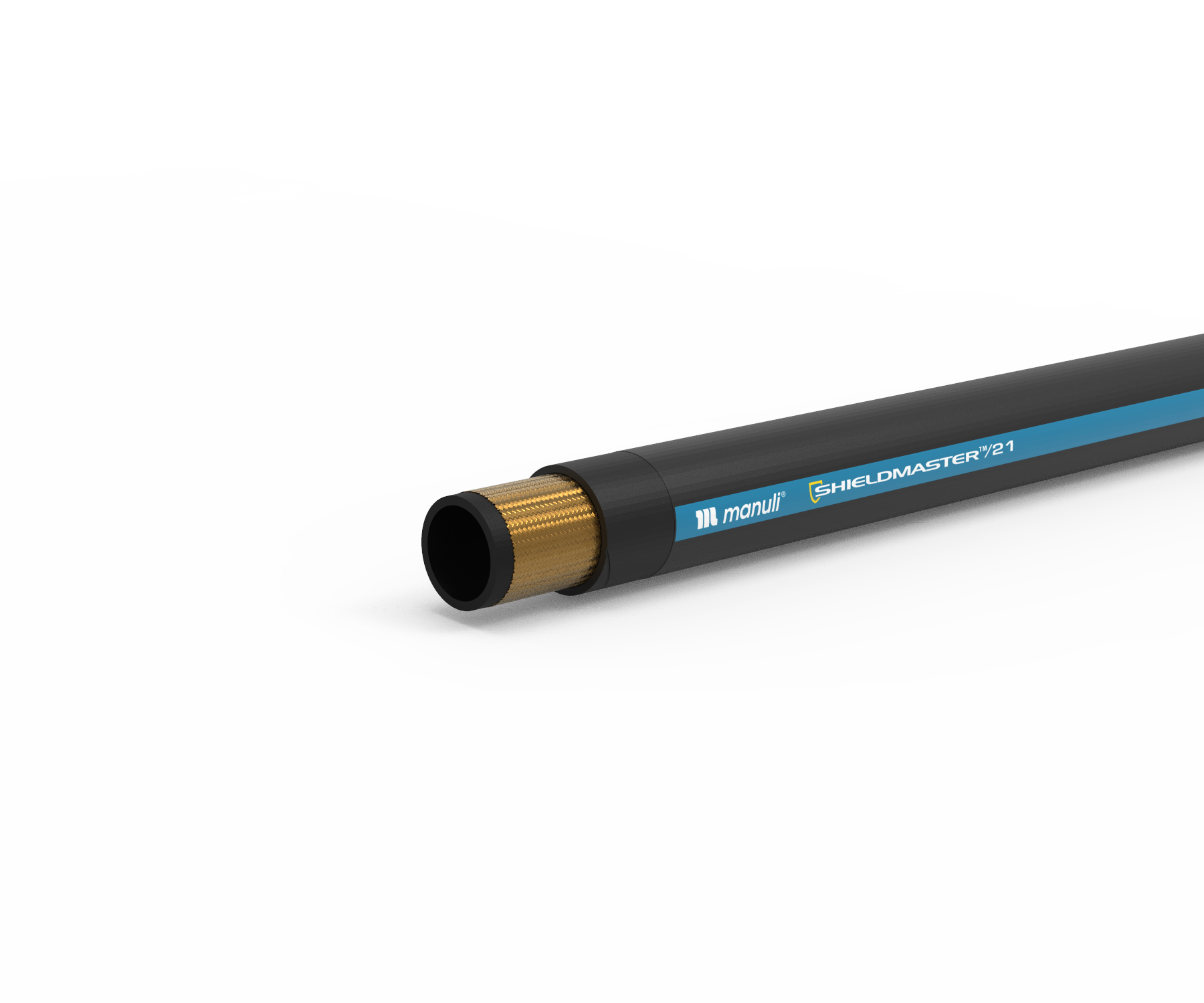

SHIELDMASTER/21
OUTSTANDING WEAR RESISTANCE
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01154006* | 6 | -4 | 1/4" | 10,2 | 0,40 | 12,2 | 0,48 | 210 | 3,040 | 840 | 12,180 | 50 | 1,97 | 188 | 0,13 | MF+M00120-04 | OPF-04 |
| H01154008* | 8 | -5 | 5/16" | 11,5 | 0,45 | 13,6 | 0,54 | 210 | 3,040 | 840 | 12,180 | 55 | 2,17 | 212 | 0,14 | MF+M00120-05 | OPF-05 |
| H01154010* | 10 | -6 | 3/8" | 14,4 | 0,57 | 16,0 | 0,63 | 210 | 3,040 | 840 | 12,180 | 65 | 2,56 | 306 | 0,21 | MF+M00120-06 | OPF-06 |
| H01154012* | 12 | -8 | 1/2" | 18,1 | 0,71 | 20,1 | 0,79 | 210 | 3,040 | 840 | 12,180 | 90 | 3,54 | 444 | 0,30 | MF+M00120-08 | OPK-08 |
| H01154016* | 16 | -10 | 5/8" | 22,2 | 0,87 | 24,2 | 0,95 | 210 | 3,040 | 840 | 12,180 | 100 | 3,94 | 624 | 0,42 | MF+M00120-10 | OPF-10 |
| H01154019* | 19 | -12 | 3/4” | 25.6 | 1.01 | 27.7 | 1.09 | 210 | 3,040 | 840 | 12,180 | 120 | 4.72 | 771 | 0.52 | MF+M00120-12 | OPF-12 |
| H01154025* | 25 | -16 | 1” | 33.0 | 1.30 | 34.8 | 1.37 | 210 | 3,040 | 840 | 12,180 | 150 | 5.91 | 1,193 | 0.80 | MF+M00130-16 | OPF-16 |
KEY FEATURES
• Outstanding abrasion and ozone resistance
• Compact and light structure
• Very low bend radius makes this product suitable for difficult installations
• Easy assembling and mounting operations (no protection sleeves required)
• Isobaric pressure rating
• Suitable for very cold environments
APPLICATIONS & FLUIDS
• Low, medium pressure hydraulic lines
• High resistance to abrasion conditions, including rubbing amongst hoses in bunches, alternative to spring guards, ease of cleaning in dusty environments
• For severe environmental conditions, long resistance to ozone and weathering, cold temperatures, dirty industrial environments
• Skive and no-skive fitting solutions
• Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-46 °C, -50 °F
100 °C, 212 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
One high tensile wire braid (DN 5 to 12)
COVER
SHIELD
Composite bi-layer structure with outstanding abrasion and ozone resistance
APPLICABLE SPECS
ISO 18752 Type B
TYPE APPROVALS
MSHA, FRAS (requested); CU-TR
REMARKS
Applications with material projections or winding on low bend radius pulley systems should be field tested before use; high abrasion resistant rubber cover hoses are appropriate in most cases
