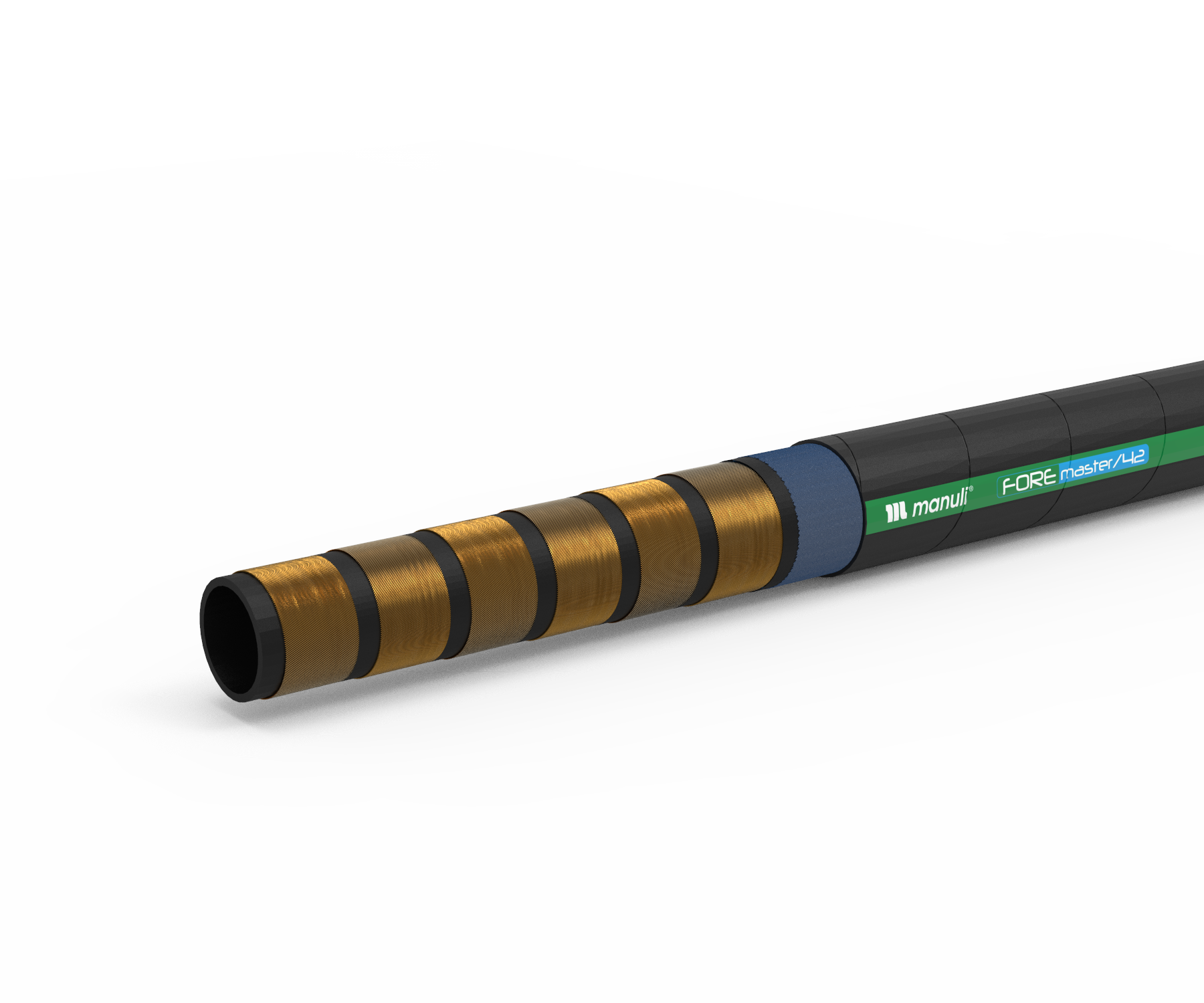

FOREMASTER/42
EXTREME SCRATCHING RESISTANCE
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H10134006* | 6 | – 4 | 1/4" | 11.3 | 0.44 | 13.1 | 0.51 | 420 | 6,090 | 1,680 | 24,366 | 45.0 | 1.77 | 284 | 0.19 | MF + M00120-04 | – |
| H10134010* | 10 | – 6 | 3/8" | 17.6 | 0.69 | 20.0 | 0.78 | 420 | 6,090 | 1,680 | 24,366 | 100.0 | 3.93 | 684 | 0.46 | MF + M00920-06 | – |
| H10134012* | 12 | – 8 | 1/2" | 20.3 | 0.79 | 22.7 | 0.89 | 420 | 6,090 | 1,680 | 24,366 | 120.0 | 4.72 | 797 | 0.54 | MF + M00910-08 | MF + M03500-08 |
| H10134016* | 16 | – 10 | 5/8" | 23.9 | 0.94 | 26.4 | 1.03 | 420 | 6,090 | 1,680 | 24,366 | 140.0 | 5.51 | 982 | 0.66 | IP + M01500-10 | SP + M05400-10 |
| H10134019* | 19 | – 12 | 3/4" | 27.7 | 1.09 | 31.9 | 1.25 | 420 | 6,090 | 1,680 | 24,366 | 150.0 | 5.9 | 1,356 | 0.91 | IP + M01500-12 | – |
| H10134025* | 25 | – 16 | 1" | 35.0 | 1.37 | 39.0 | 1.53 | 420 | 6,090 | 1,680 | 24,366 | 210.0 | 8.26 | 2,079 | 1.4 | IP + M01500-16 | – |
| H10134031* | 31 | – 20 | 1.1/4" | 42.2 | 1.66 | 46.6 | 1.83 | 420 | 6,090 | 1,680 | 24,366 | 260.0 | 10.23 | 2,472 | 1.66 | IP + M01500-20 | – |
| H10134038* | 38 | – 24 | 1.1/2" | 53.2 | 2.09 | 58.2 | 2.29 | 420 | 6,090 | 1,680 | 24,366 | 310.0 | 12.2 | 4,536 | 3.05 | IP + M01600-24 | – |
| H10134051* | 51 | – 32 | 2" | 68.9 | 2.71 | 73.5 | 2.89 | 420 | 6,090 | 1,680 | 24,366 | 500.0 | 19.68 | 7,325 | 4.92 | IS + M02700-32 | – |
KEY FEATURES
• Extremely high abrasion resistance, long life before reinforcement scratching
• Special composite cover layer with textile reinforcement for maximum resistance in harsh environments
• Very low bend radius to suit restricted space installations
• Good flexibility across the whole temperature range
• Easy mounting in any installation
• Highly robust and compact hose structure compared to rated pressure
• High resistance to environmental agents
• High impulse resistance according to ISO 18752 requirements
APPLICATIONS & FLUIDS
• High pressure power lines for general hydraulics
• Designed for forestry machines, booms and harvester heads, harsh environments and severe abrasion
• Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-46 °C, -50 °F
121 °C, 250 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
DN 6: two wire braids, DN 10 to 31: four high tensile steel spirals; DN 38 , 51: six high tensile steel spirals
COVER
DN 6-16 – R.O.C.
Synthetic rubber with extreme abrasion and ozone resistance
DN 19 and larger – ARMOURED
Synthetic rubber composite cover with textile reinforcement, high abrasion and very high scratch resistance
APPLICABLE SPECS
Manuli® Design, ref. ISO 18752-C
TYPE APPROVALS
MSHA; CU-TR
