ABRASERVICE/10 SD

ABRASIVE FLUID HOSE, HEAVY DUTY

KEY FEATURES
• Hardwall suction and delivery structure
• High resistance to continuous abrasion
• Long length assemblies available – Max length: 60m

APPLICATIONS & FLUIDS
• Dry and liquid abrasive mix transfer

CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
80 °C, 176 °F

TUBE
NR/SBR rubber, abrasion resistant, thick tube

REINFORCEMENT
High tensile synthetic cord and steel helix body wire, and 2 crossing copper wires for grounding

COVER
Black NR/SBR abrasion resistant rubber

APPLICABLE SPECS
Manuli design, safety factor 3:1

STANDARD PACKAGING
Coil

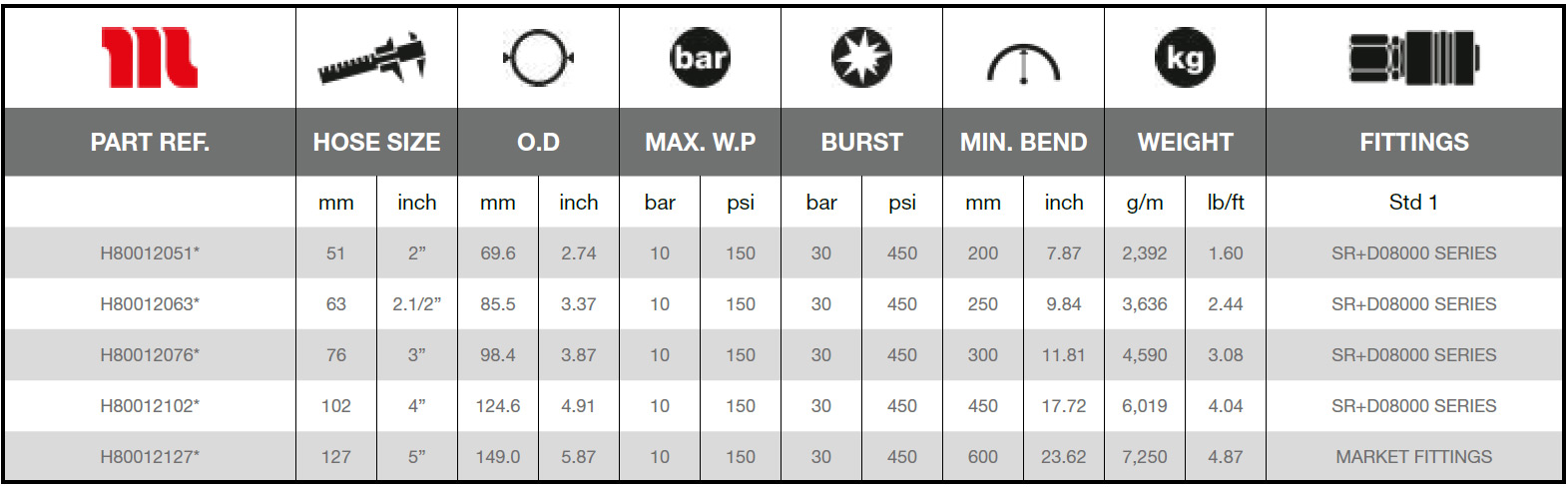

TECHNICAL DATA

PART REF.	HOSE SIZE		O.D		MAX. W.P		BURST		MIN. BEND		WEIGHT		FITTINGS
	mm	inch	mm	inch	bar	psi	bar	psi	mm	inch	g/m	lb/ft	Std 1
H80012051*	51	2”	69.6	2.74	10	150	30	450	200	7.87	2,392	1.6	SR+D08000 SERIES
H80012063*	63	2.1/2”	85.5	3.37	10	150	30	450	250	9.84	3,636	2.44	SR+D08000 SERIES
H80012076*	76	3”	98.4	3.87	10	150	30	450	300	11.81	4,590	3.08	SR+D08000 SERIES
H80012102*	102	4”	124.6	4.91	10	150	30	450	450	17.72	6,019	4.04	SR+D08000 SERIES
H80012127*	127	5”	149.0	5.87	10	150	30	450	600	23.62	7,250	4.87	MARKET FITTINGS

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
