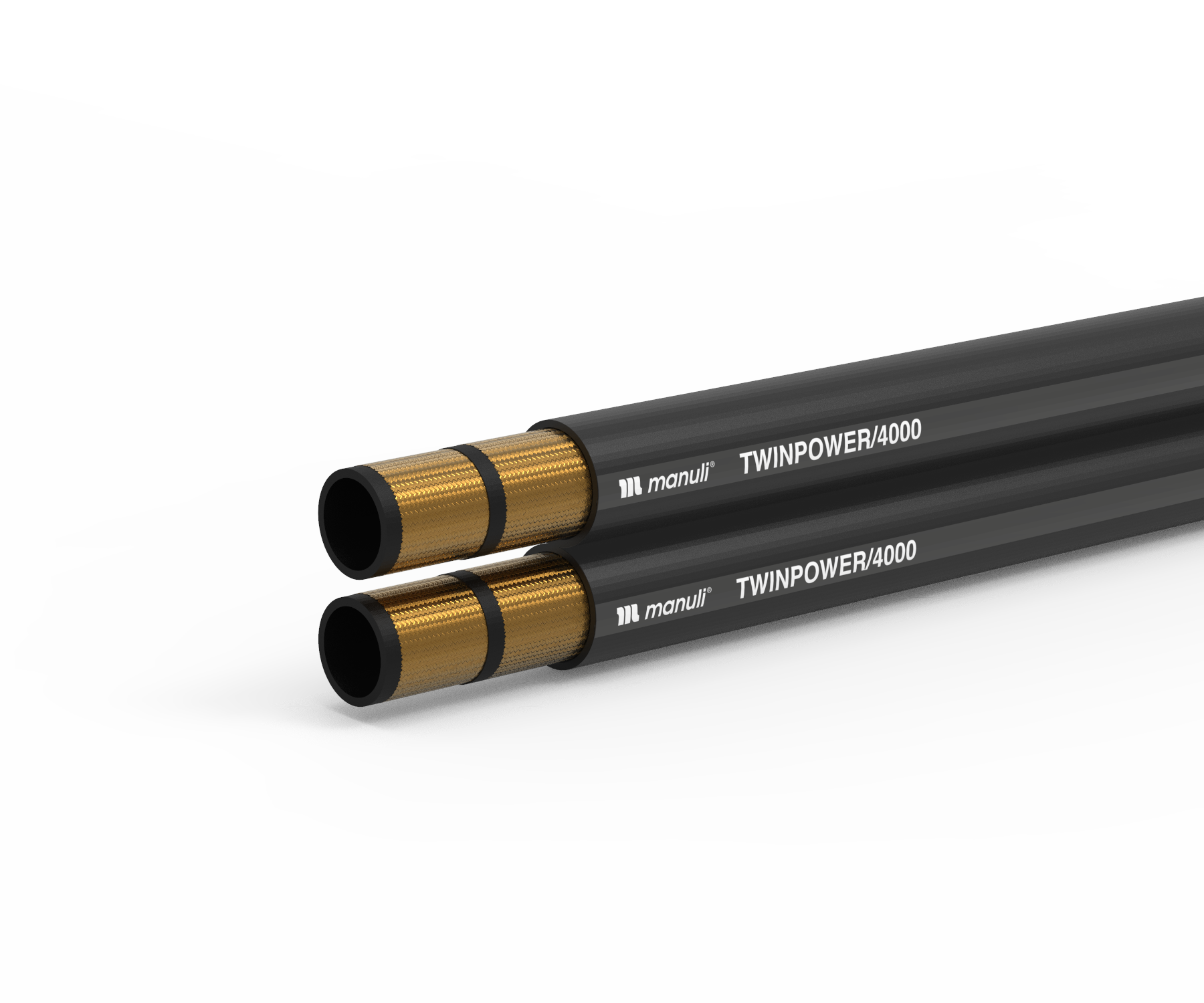

TWINPOWER/4000
EASY INSTALLATION FOR OEMS
KEY FEATURES
• Compact hose structure and reduced bend radius
• Isobaric rating for easy selection
• Smooth cover hose ensuring user friendly installation inside the booms
• Unique hose assembly solution for pressure and discharge line on the same body valve
• Reduced installation time compared to two separated assembly hose solutions
• Reduced risk of abrasion of the line inside the booms due to twin hose alignment
• Elimination of clamps to connect the two hose lines, with consequent easiness of insertion
• Warehouse/logistic optimization with reduced codes in stock
APPLICATIONS & FLUIDS
- Hydraulics: hose range dedicated to aerial lifts, platforms, forklift trucks and telescopic booms applications
- Mineral oils, vegetable oils and synthetic ester based oils, glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
100 °C, 212 °F
TUBE
Synthetic rubber
REINFORCEMENT
Two high tensile steel wire braids
COVER
Weather resistant synthetic rubber
APPLICABLE SPECS
DN 10: ISO 11237 R19; SAE J517 Type100R19. DN 12: ISO 11237 2SC; EN 857 2SC, SAE J517 Type 100R16
TYPE APPOVALS
CU-TR
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01119010* | 10 | -6 | 3/8″ | 15.4 | 0.61 | 18.0 | 0.71 | 280 | 4,060 | 1,120 | 16,240 | 65 | 2.56 | 830 | 0.56 | MF+M00120-06 | – |
| H01119012* | 12 | -8 | 1/2″ | 18.5 | 0.73 | 21.5 | 0.85 | 280 | 4,060 | 1,120 | 16,240 | 80 | 3.15 | 1,100 | 0.74 | MF+M00120-08 | – |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
