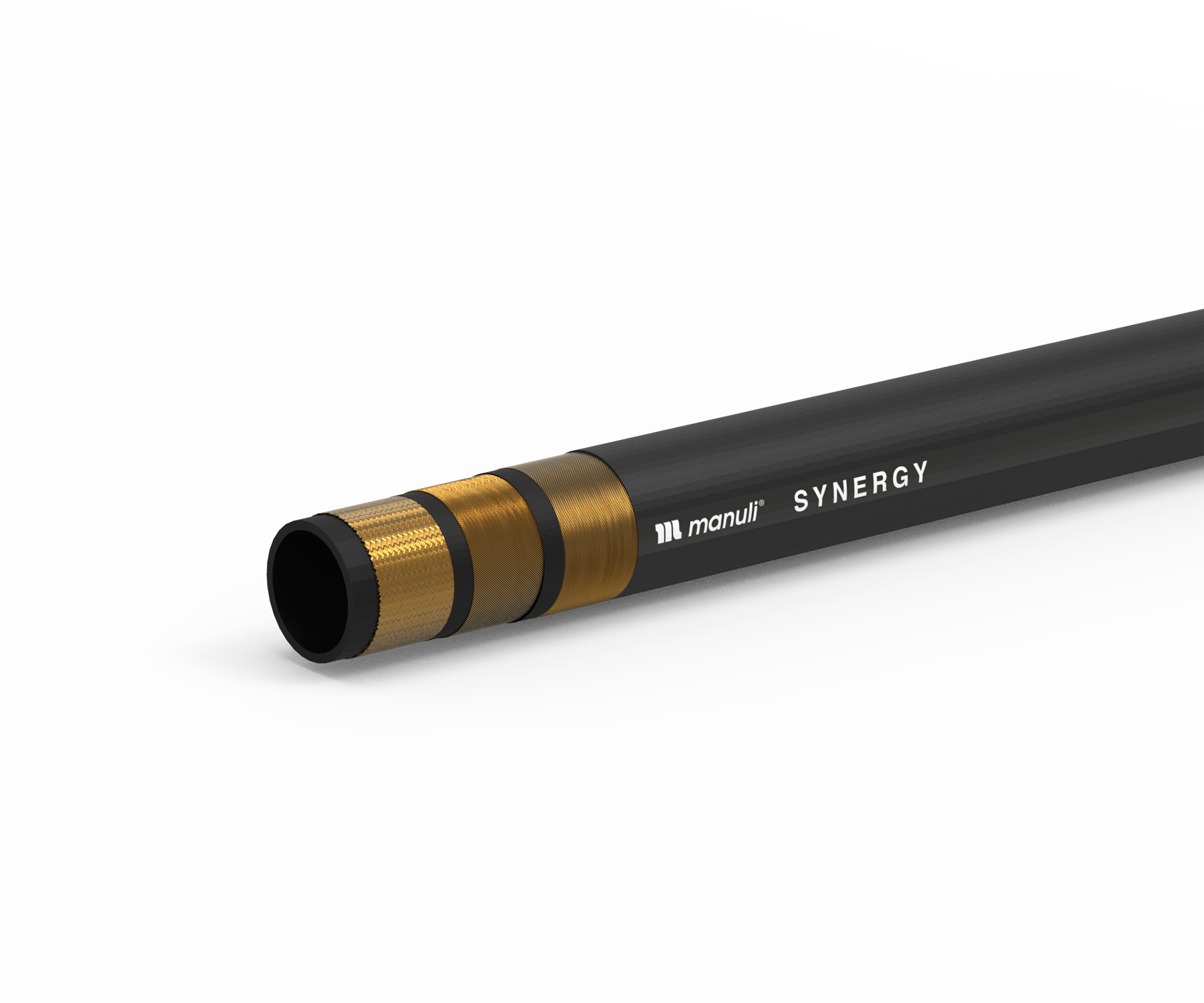

SYNERGY
HIGH PRESSURE HYDRAULICS
KEY FEATURES
• Long life resistance in severe hydraulic applications
• High abrasion resistance
• High ozone and weather resistance
• Flame retardant and antistatic cover
• High flexibility and durability
• Low bend radii
• Compact dimensions
APPLICATIONS & FLUIDS
- Hydraulics: very high pressure hydraulic lines in severe environmental conditions, specific installations with tough abrasion conditions, marine applications, underground and open pit mining;
- Mineral oils, vegetable oils and synthetic ester based oils, glycols and polyglycols, mineral oils in aqueous emulsion, water.
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
121 °C, 250 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
One wire braid and two wire spirals, high tensile steel
COVER
STRONG – TYPE “SC”
Synthetic rubber with high abrasion, ozone, weather and heat resistance and an extended operational temperature range
APPLICABLE SPECS
Manuli® Design, exceeds 4SP performance
TYPE APPOVALS
MSHA, CU-TR
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H10137006* | 6 | – 4 | 1/4″ | 13.5 | 0.53 | 16.8 | 0.66 | 450 | 6,525 | 1,800 | 26,107 | 100.0 | 3.93 | 504 | 0.34 | MF + M00910-04 | – |
| H10137010* | 10 | – 6 | 3/8″ | 16.2 | 0.63 | 18.4 | 0.72 | 450 | 6,525 | 1,800 | 26,107 | 125.0 | 4.92 | 552 | 0.37 | MF + M03500-06 | MF + M00910-06 |
| H10137012* | 12 | – 08 | 1/2″ | 20.5 | 0.8 | 23.3 | 0.91 | 420 | 6,090 | 1,680 | 24,366 | 160.0 | 6.29 | 845 | 0.57 | MF + M03500-08 | MF + M00910-08 |
| H10137019* | 19 | – 12 | 3/4″ | 28.0 | 1.1 | 31.8 | 1.25 | 365 | 5,292 | 1,460 | 21,175 | 240.0 | 9.44 | 1,389 | 0.93 | SP + M05400-12 | MF + M00930-12 |
| H10137025* | 25 | – 16 | 1″ | 34.9 | 1.37 | 38.7 | 1.52 | 300 | 4,350 | 1,200 | 17,404 | 340.0 | 13.38 | 1,906 | 1.28 | SP + M05400-16 | MF + M00930-16 |
| H10137031* | 31 | – 20 | 1.1/4″ | 43.2 | 1.7 | 46.2 | 1.81 | 210 | 3,045 | 840 | 12,183 | 460.0 | 18.11 | 2,329 | 1.57 | SP + M05400-20 | MF + M00920-20 |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
