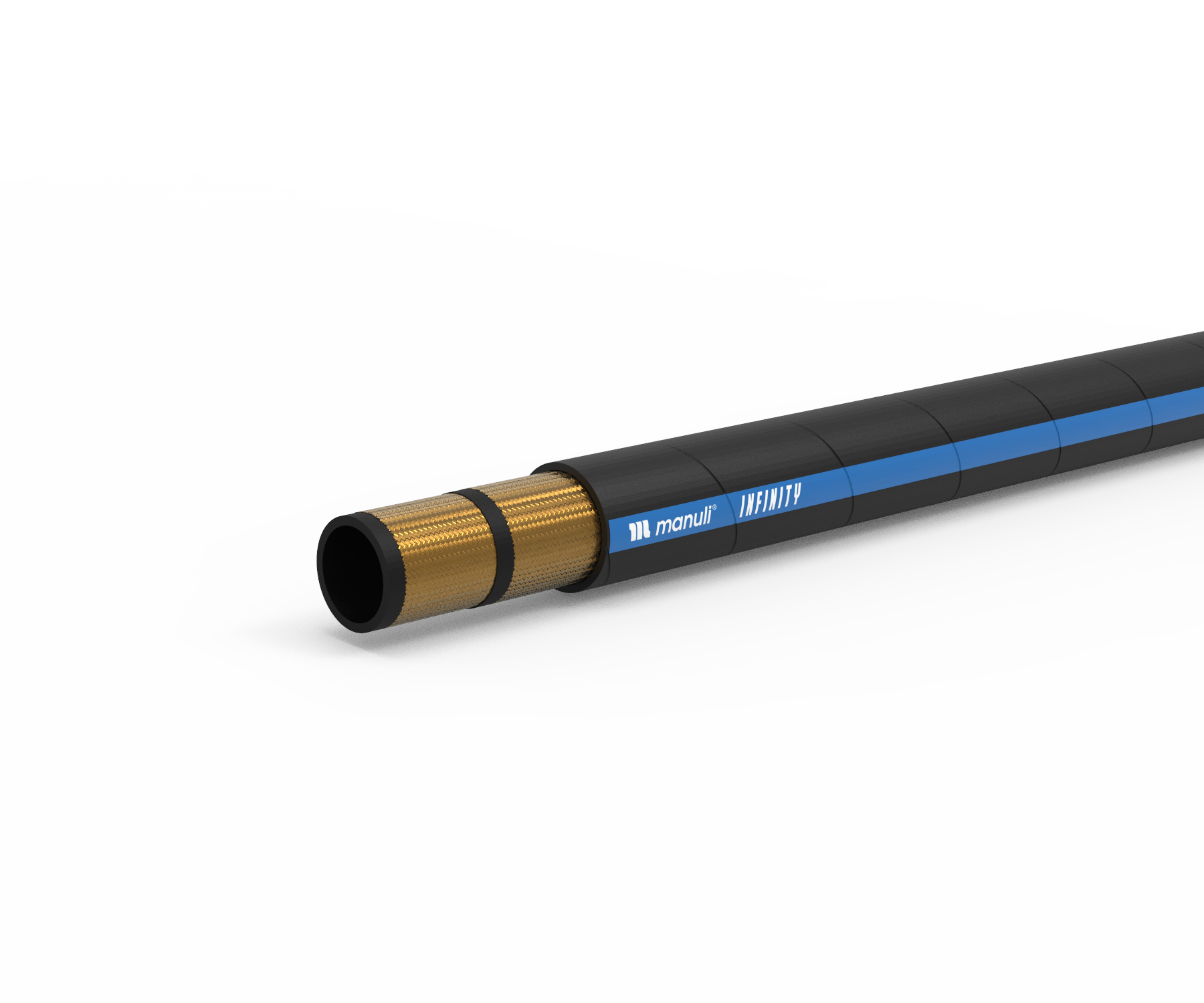

INFINITY
LONG SERVICE LIFE AND HIGH RELIABILITY
KEY FEATURES
• The high-performance solution for toughest OEM specifications
• Performance far exceeds EN 857-2SC
• Extended service life and resistance to fatigue
• High temperature and environmental resistance
• Enhanced flex impulse resistance with M00120 skive ferrule
• Wide chemical compatibility with hydraulic fluids
APPLICATIONS & FLUIDS
- Hydraulics: high pressure lines with installation constraints in severe OEM applications
- Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
121 °C, 250 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Two high tensile steel braids
COVER
STRONG – TYPE “SC”
Synthetic rubber with high abrasion, ozone, weather and heat resistance and an extended operational temperature range
APPLICABLE SPECS
Exceed EN 857 2SC, SAE 100R16, ISO 11237-2SC
TYPE APPOVALS
MSHA; CU-TR; FRAS; B
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01164006* | 6 | – 4 | 1/4″ | 11.3 | 0.44 | 13.1 | 0.51 | 450 | 6,520 | 1,800 | 26,107 | 45.0 | 1.77 | 284 | 0.19 | MF + M00120-04 | OPF-04 |
| H01164008* | 8 | – 5 | 5/16″ | 12.9 | 0.5 | 14.7 | 0.57 | 400 | 5,800 | 1,600 | 23,206 | 55.0 | 2.16 | 319 | 0.21 | MF + M00120-05 | OPF-05 |
| H01164010* | 10 | – 6 | 3/8″ | 15.5 | 0.61 | 17.1 | 0.67 | 400 | 5,800 | 1,600 | 23,206 | 65.0 | 2.55 | 440 | 0.3 | MF + M00120-06 | OPF-06 |
| H01164012* | 12 | – 8 | 1/2″ | 18.6 | 0.73 | 20.6 | 0.81 | 360 | 5,220 | 1,440 | 20,885 | 80.0 | 3.14 | 573 | 0.39 | MF + M00120-08 | OPF-08 |
| H01164016* | 16 | – 10 | 5/8″ | 22.9 | 0.9 | 24.7 | 0.97 | 320 | 4,640 | 1,280 | 18,565 | 90.0 | 3.54 | 736 | 0.49 | MF + M00120-10 | OPK-10 |
| H01164019* | 19 | – 12 | 3/4″ | 27.4 | 1.07 | 29.3 | 1.15 | 320 | 4,640 | 1,280 | 18,565 | 120.0 | 4.72 | 1,046 | 0.7 | MF + M00120-12 | OPK-12 |
| H01164025* | 25 | – 16 | 1″ | 33.9 | 1.33 | 36.1 | 1.42 | 225 | 3,263 | 900 | 13,053 | 160.0 | 6.29 | 1,372 | 0.92 | MF + M00130-16 | OPK-16 |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
