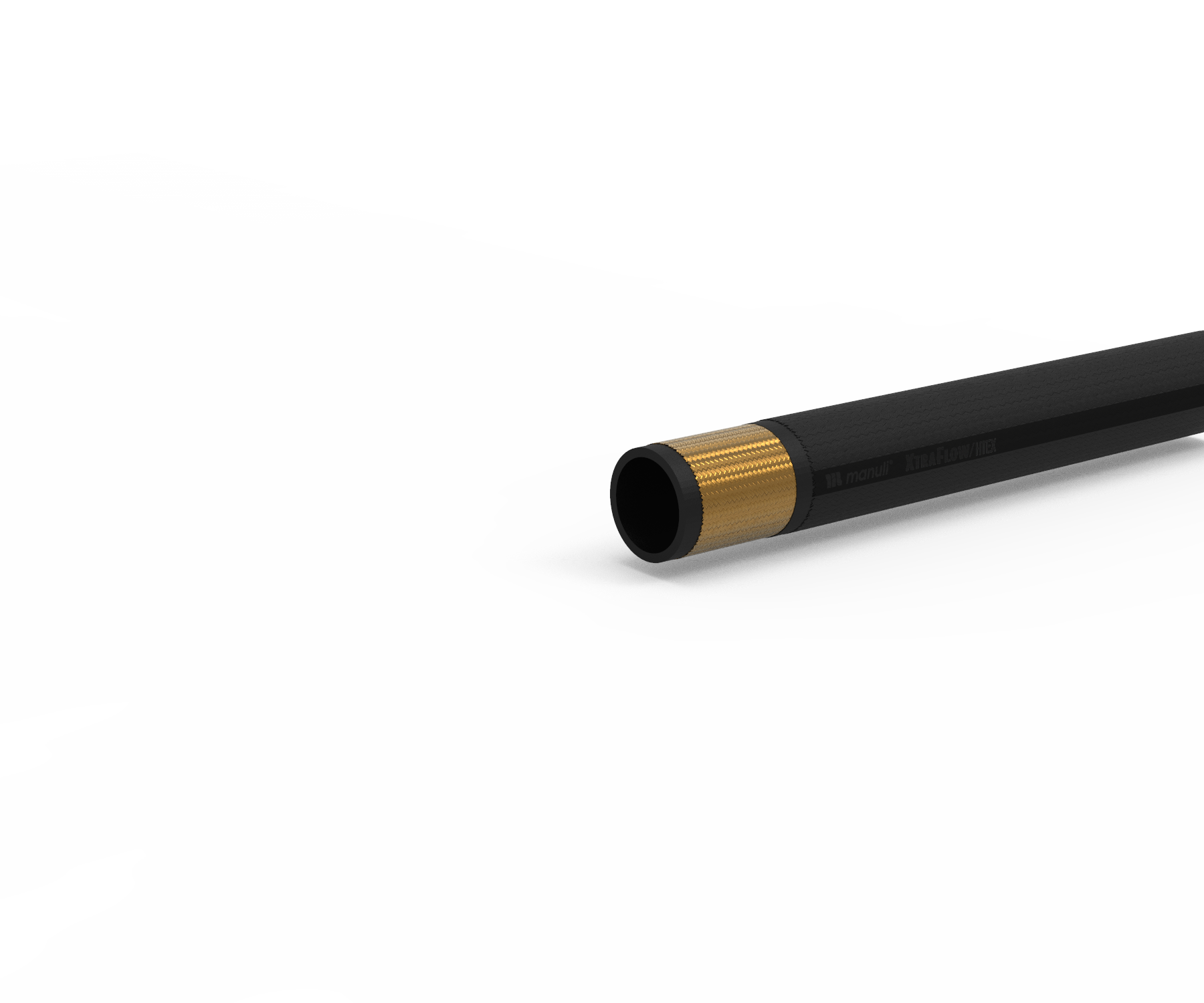

XTRAFLOW/HTEX
HIGH TEMPERATURE SUCTION & RETURN LINES
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01161063* | 63 | -40 | 2.1/2" | 73.3 | 2.89 | 76.7 | 3.02 | 35 | 500 | 140 | 2,030 | 400 | 15.75 | 2,502 | 1.68 | MF+M03400-40 | – |
KEY FEATURES
• Vacuum resistance exceeding SAE 100R4 performance
• Extreme high temperature and heat aging resistance
• High flow rates
• Reduced bend radii compared to SAE 100R4
• Easier heat dissipation
APPLICATIONS & FLUIDS
• Suction and return lines in hydraulic systems with high temperature fluids, low pressure hydraulic systems in mining equipment.
• Mineral oils, glycols and polyglycols, transmission fluids, mineral oils in aqueous emulsion (up to 212°F 100°C), air with oil vapours.
CONTINUOUS SERVICE TEMPERATURE RANGE
-55 °C, -67 °F
135 °C, 275 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
One high tensile steel braid
COVER
Black textile braid with high ozone, weather and heat resistance
APPLICABLE SPECS
Manuli® Design
