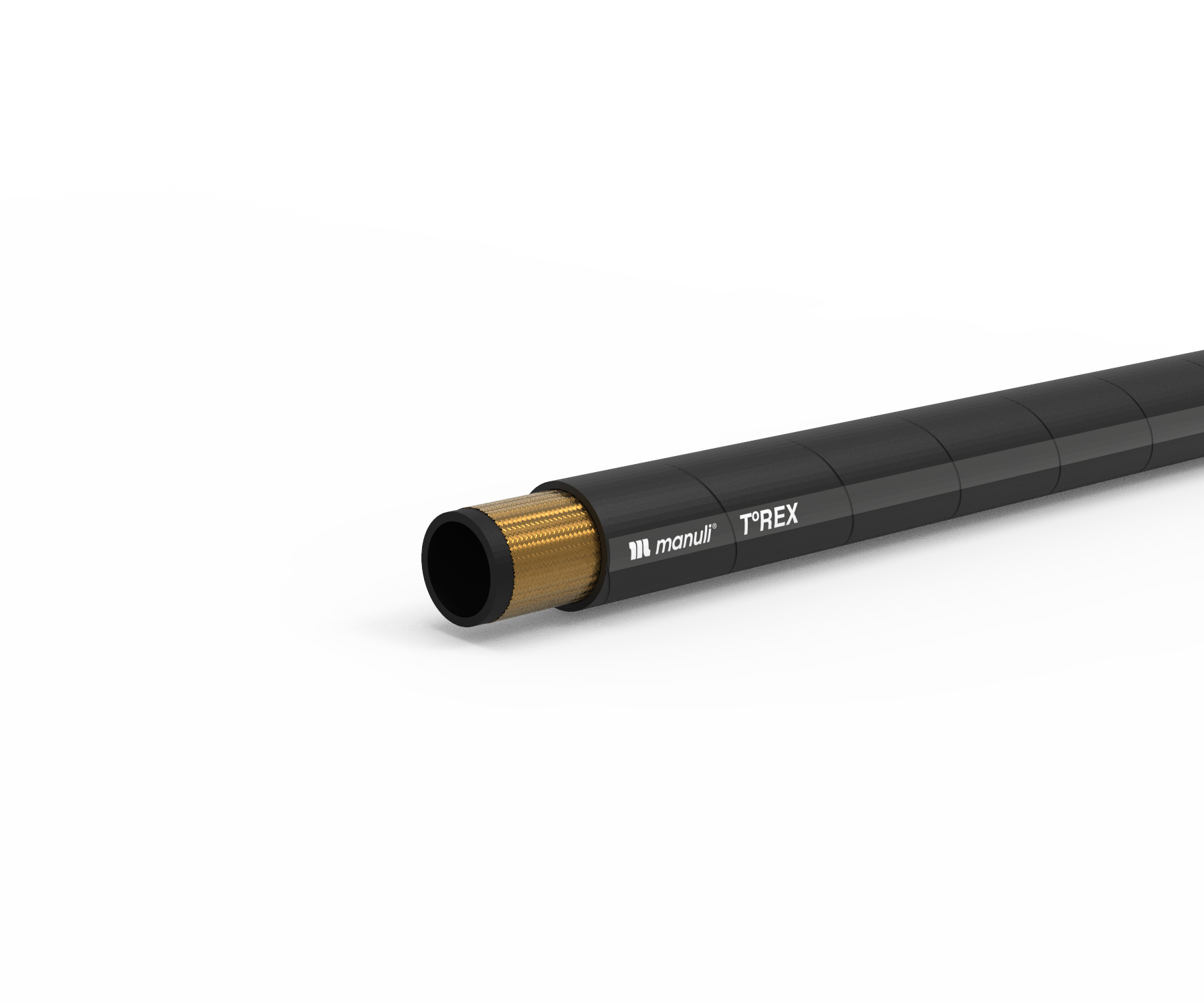

T°REX
EXTREME TEMPERATURE
KEY FEATURES
• Extreme high temperature and aging resistance
• High flexibility
• Long service duration
APPLICATIONS & FLUIDS
- Oil cooling systems, automatic transmissions with very high temperature of the oil, low pressure high temperature applications in hydraulic systems.
- Mineral oils, Synthetic Hydrocarbons oils, glycols and polyglycols (up to 121°C, 250°F)
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
160 °C, 320 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
One high tensile steel wire braid
COVER
Synthetic rubber with extremely high heat resistance
APPLICABLE SPECS
Manuli® Design
TYPE APPOVALS
CU-TR
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01127031* | 31 | -20 | 1.1/4″ | 0.0 | 0.00 | 40.7 | 1.60 | 43 | 620 | 172 | 2,490 | 203 | 7.99 | 925 | 0.62 | MF+M00110-20TX | – |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
