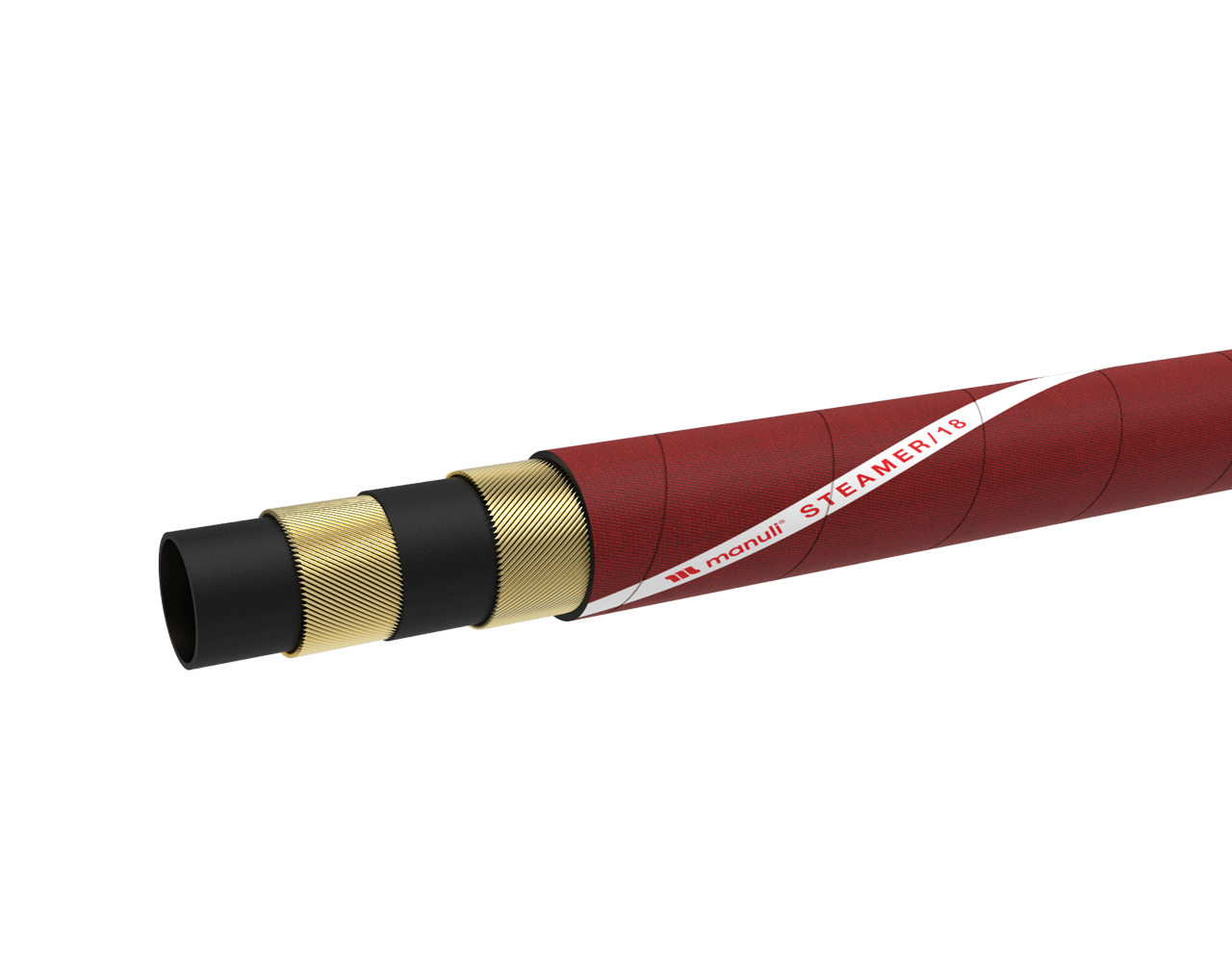

STEAMER/18
STEAM & VAPOUR HOSE
KEY FEATURES
• Hardwall delivery structure
• Compact, lightweight and flexible
• Robust hose structure for longer life in severe applications
• Long length assemblies available – Max length: 40m (DN12 to DN16); 61m (DN19 to DN102)
APPLICATIONS & FLUIDS
• Delivery of high pressure saturated steam
• Suitable for steam cleaning of tanks and pipelines in the petrochemical industry
|
CONTINUOUS SERVICE TEMPERATURE RANGE TUBE REINFORCEMENT COVER APPLICABLE SPECS STANDARD PACKAGING |

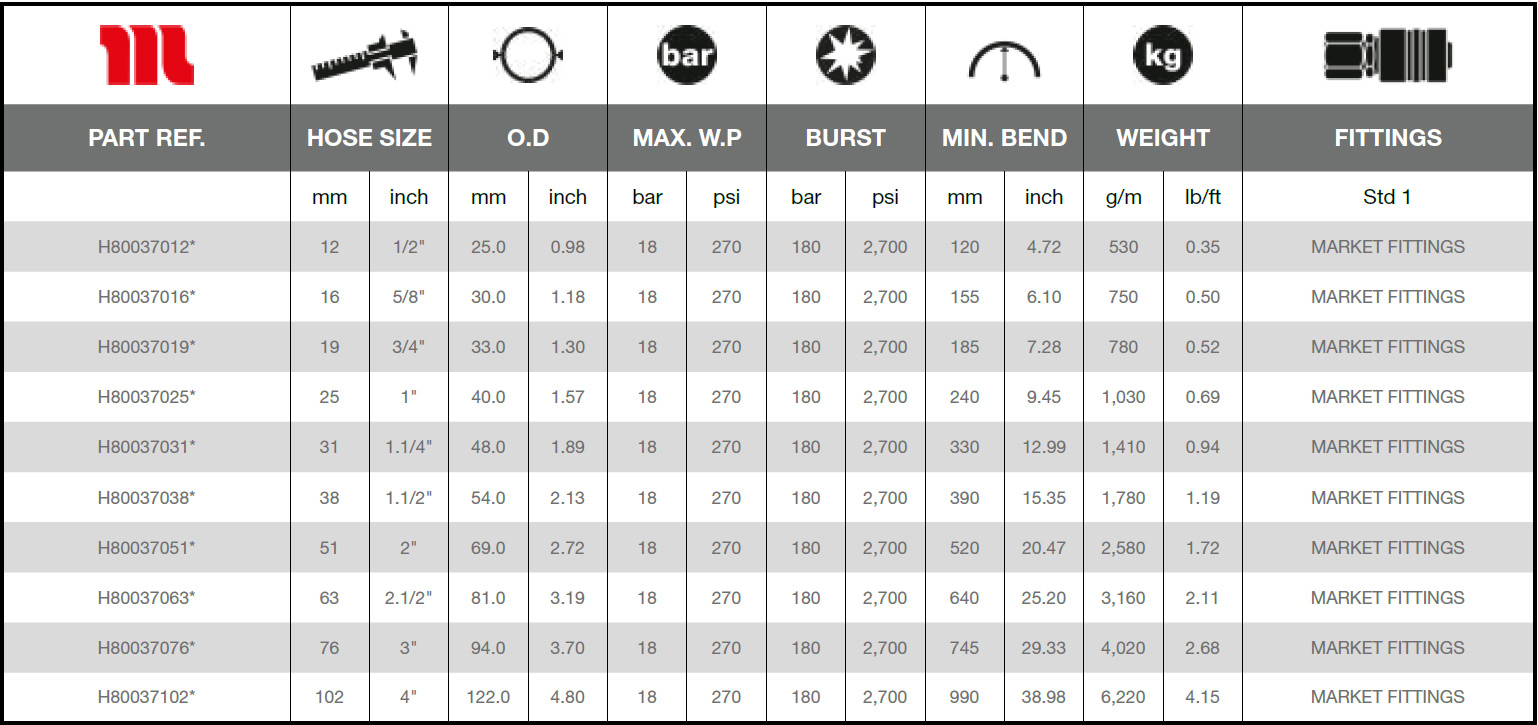

| TECHNICAL DATA | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
||||||
| PART REF. | HOSE SIZE | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | ||||||
| mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | |
| H80037012* | 12 | 1/2″ | 25.0 | 0.98 | 18 | 270 | 180 | 2,700 | 120 | 4.72 | 530 | 0.35 | MARKET FITTINGS |
| H80037016* | 16 | 5/8″ | 30.0 | 1.18 | 18 | 270 | 180 | 2,700 | 155 | 6.1 | 750 | 0.50 | MARKET FITTINGS |
| H80037019* | 19 | 3/4″ | 33.0 | 1.30 | 18 | 270 | 180 | 2,700 | 185 | 7.28 | 780 | 0.52 | MARKET FITTINGS |
| H80037025* | 25 | 1″ | 40.0 | 1.57 | 18 | 270 | 180 | 2,700 | 240 | 9.45 | 1,030 | 0.69 | MARKET FITTINGS |
| H80037031* | 31 | 1.1/4″ | 48.0 | 1.89 | 18 | 270 | 180 | 2,700 | 330 | 12.99 | 1,410 | 0.94 | MARKET FITTINGS |
| H80037038* | 38 | 1.1/2″ | 54.0 | 2.13 | 18 | 270 | 180 | 2,700 | 390 | 15.35 | 1,780 | 1.19 | MARKET FITTINGS |
| H80037051* | 51 | 2″ | 69.0 | 2.72 | 18 | 270 | 180 | 2,700 | 520 | 20.47 | 2,580 | 1.72 | MARKET FITTINGS |
| H80037063* | 63 | 2.1/2″ | 81.0 | 3.19 | 18 | 270 | 180 | 2,700 | 640 | 25.2 | 3,160 | 2.11 | MARKET FITTINGS |
| H80037076* | 76 | 3″ | 94.0 | 3.70 | 18 | 270 | 180 | 2,700 | 745 | 29.33 | 4,020 | 2.68 | MARKET FITTINGS |
| H80037102* | 102 | 4″ | 122.0 | 4.80 | 18 | 270 | 180 | 2,700 | 990 | 38.98 | 6,220 | 4.15 | MARKET FITTINGS |
