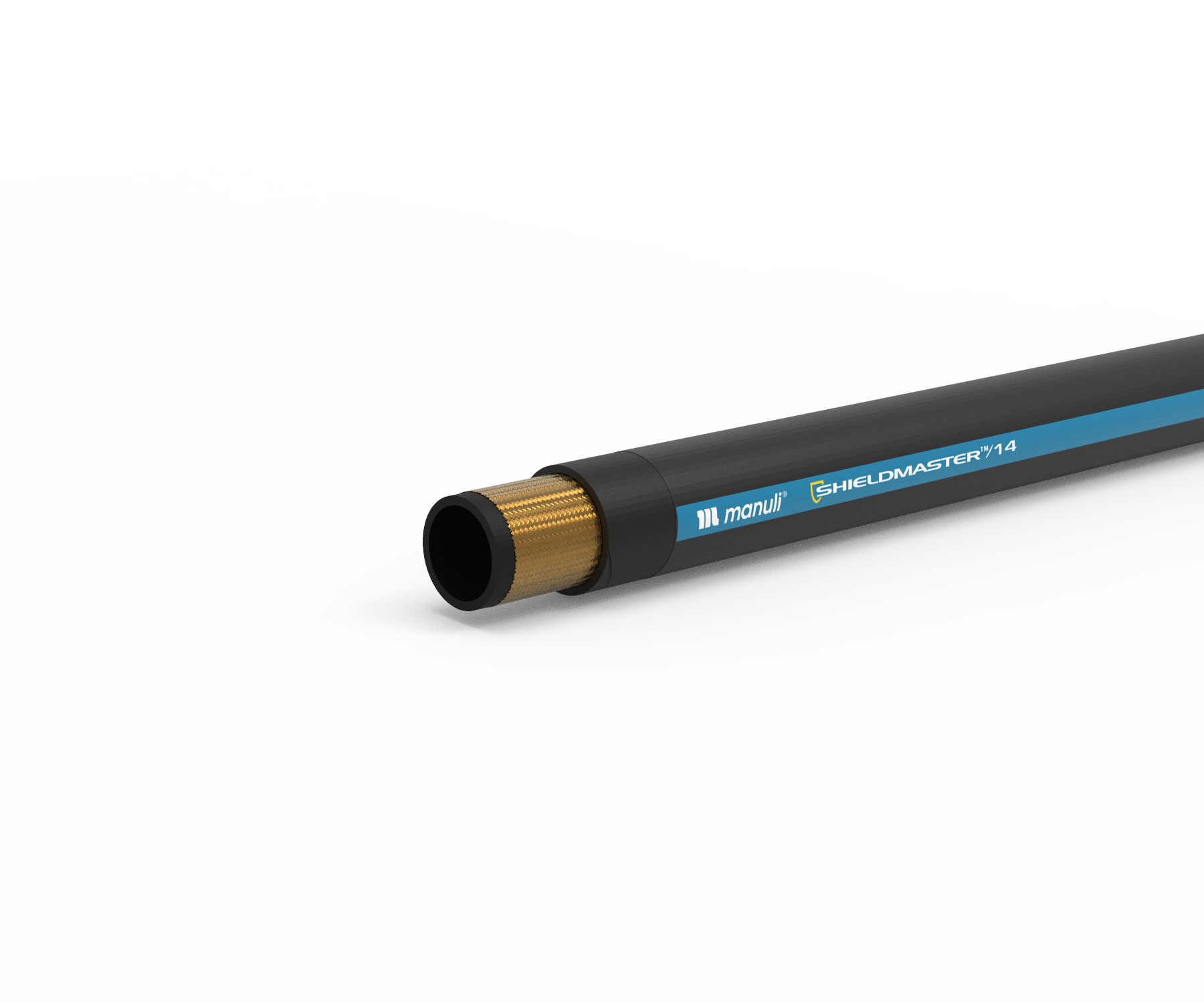

SHIELDMASTER/14
OUTSTANDING WEAR RESISTANCE
KEY FEATURES
• Outstanding abrasion and ozone resistance
• Compact and light structures
• Very low bend radius makes the product suitable for difficult installations
• Easy assembling and mounting operations (no protection sleeves required)
• Isobaric pressure rating
• Suitable for very cold environments
APPLICATIONS & FLUIDS
- Low pressure hydraulic lines, pilot and auxiliary lines
- High resistance to abrasion conditions, including rubbing among hoses in bunches, alternative to spring guards, easy cleaning in dusty environments
- For severe environmental conditions, long resistance to ozone and weathering, cold temperatures, dirty industrial environments
- Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-46 °C, -50 °F
100 °C, 212 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
One high tensile wire braid (DN 5 to 12)
COVER
SHIELD
Composite bi-layer structure with outstanding abrasion and ozone resistance
APPLICABLE SPECS
ISO 18752 Type B
TYPE APPOVALS
MSHA, FRAS (requested)
REMARKS
Applications with material projections or winding on low bend radius pulley systems should be field tested before use; high abrasion resistant rubber cover hoses are appropriate in most cases
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01184005* | 5 | – 3 | 3/16″ | 7.8 | 0.3 | 9.6 | 0.37 | 140 | 2,030 | 560 | 8,122 | 20.0 | 0.78 | 113 | 0.08 | MN + M02400-03 | MF + M03300-03KM |
| H01184006* | 6 | – 4 | 1/4″ | 9.7 | 0.38 | 11.5 | 0.45 | 140 | 2,030 | 560 | 8,122 | 25.0 | 0.98 | 147 | 0.1 | MN + M02400-04 | MF + M03300-04 |
| H01184010* | 10 | – 6 | 3/8″ | 13.2 | 0.51 | 14.8 | 0.58 | 140 | 2,030 | 560 | 8,122 | 40.0 | 1.57 | 240 | 0.16 | MN + M02400-06 | MF + M03300-06 |
| H01184012* | 12 | – 8 | 1/2″ | 16.2 | 0.63 | 18.0 | 0.7 | 140 | 2,030 | 560 | 8,122 | 50.0 | 1.96 | 285 | 0.19 | MN + M02400-08 | MF + M03300-08 |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
