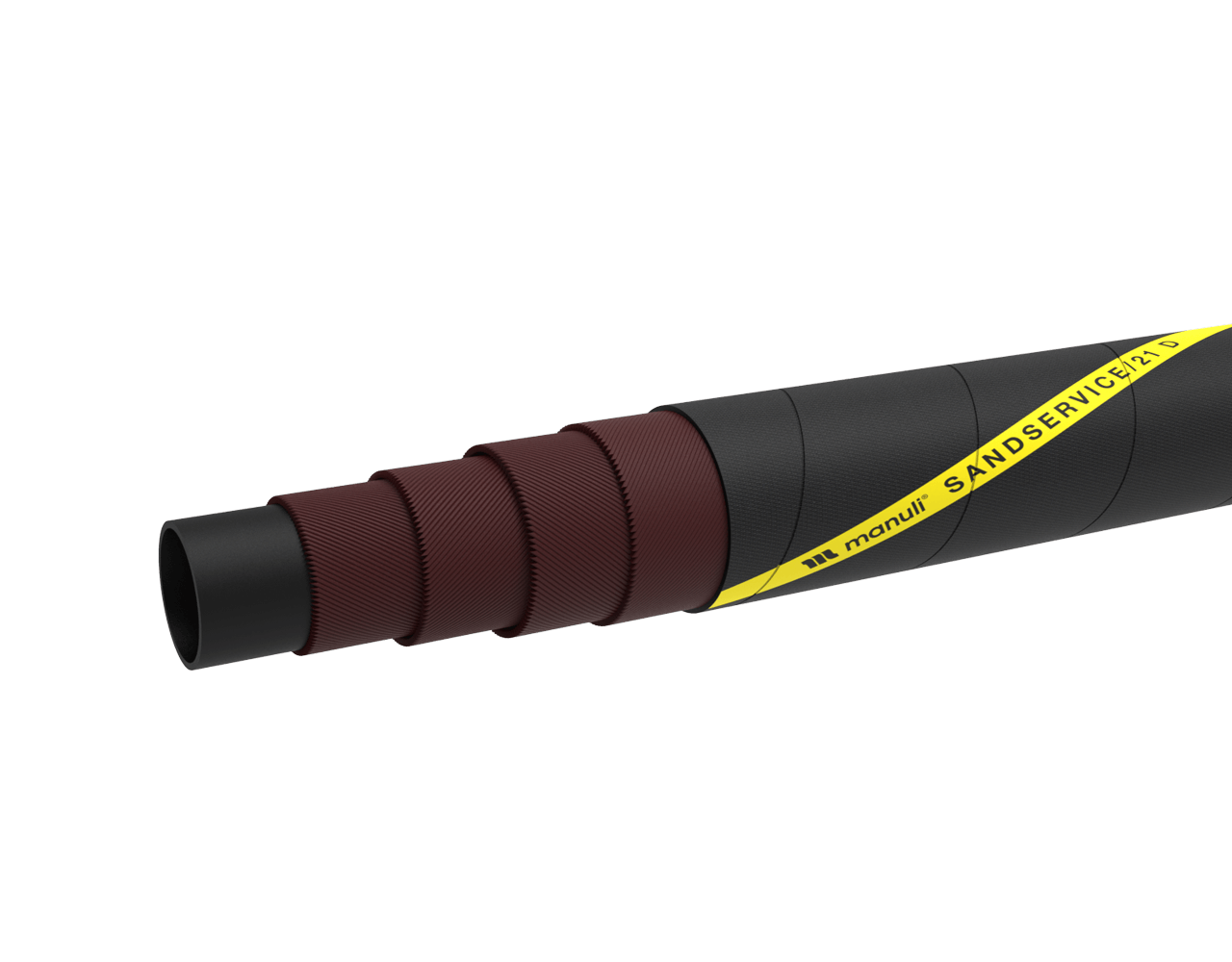

SANDSERVICE/21 D

SANDBLASTING & ABRASIVE FLUID HOSE

KEY FEATURES
• Softwall delivery structure
• Highly robust construction
• Long life in extreme conditions
• Long length assemblies available – Max length: 60m

APPLICATIONS & FLUIDS
• Sand blasting or transfer of highly abrasive materials such as grit and gravel.

CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
80 °C, 176 °F

TUBE
Black, NR/SBR rubber, abrasion resistant thick tube

REINFORCEMENT
High strength synthetic cord

COVER
Black, NR/SBR rubber, abrasion resistant . Cover is pin-pricked.

APPLICABLE SPECS
Manuli design, safety factor 3:1

STANDARD PACKAGING
Coil

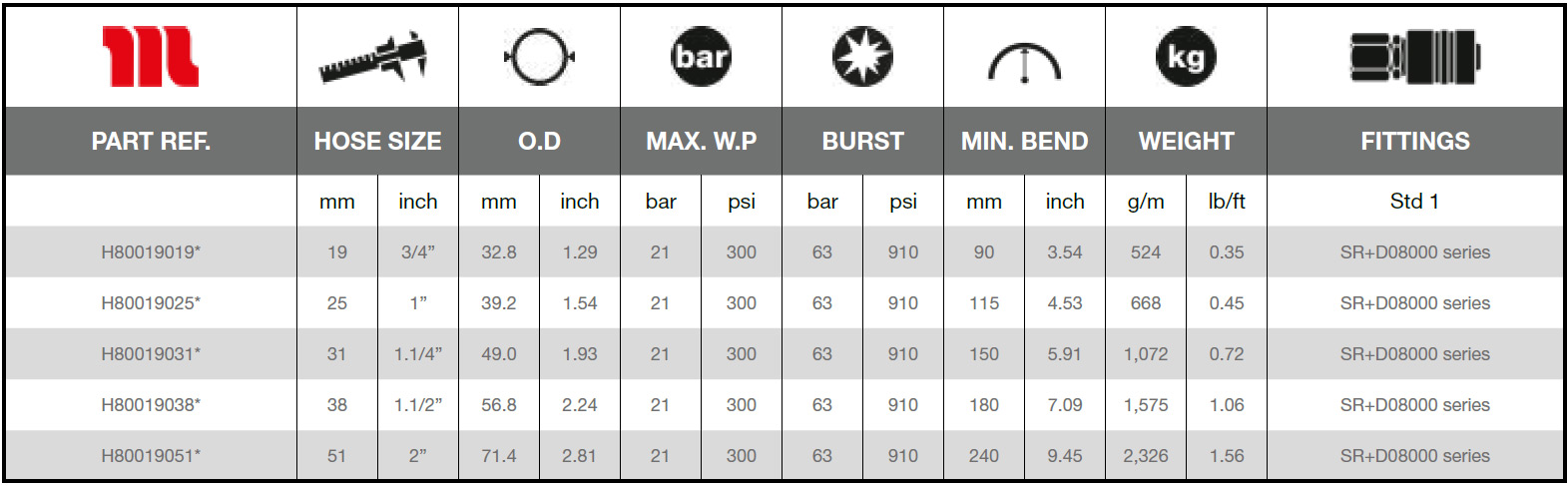

TECHNICAL DATA

PART REF.	HOSE SIZE		O.D		MAX. W.P		BURST		MIN. BEND		WEIGHT		FITTINGS
	mm	inch	mm	inch	bar	psi	bar	psi	mm	inch	g/m	lb/ft	Std 1
H80019019*	19	3/4”	32.8	1.29	21	300	63	910	90	3.54	524	0.35	SR+D08000 series
H80019025*	25	1”	39.2	1.54	21	300	63	910	115	4.53	668	0.45	SR+D08000 series
H80019031*	31	1.1/4”	49.0	1.93	21	300	63	910	150	5.91	1,072	0.72	SR+D08000 series
H80019038*	38	1.1/2”	56.8	2.24	21	300	63	910	180	7.09	1,575	1.06	SR+D08000 series
H80019051*	51	2”	71.4	2.81	21	300	63	910	240	9.45	2,326	1.56	SR+D08000 series
