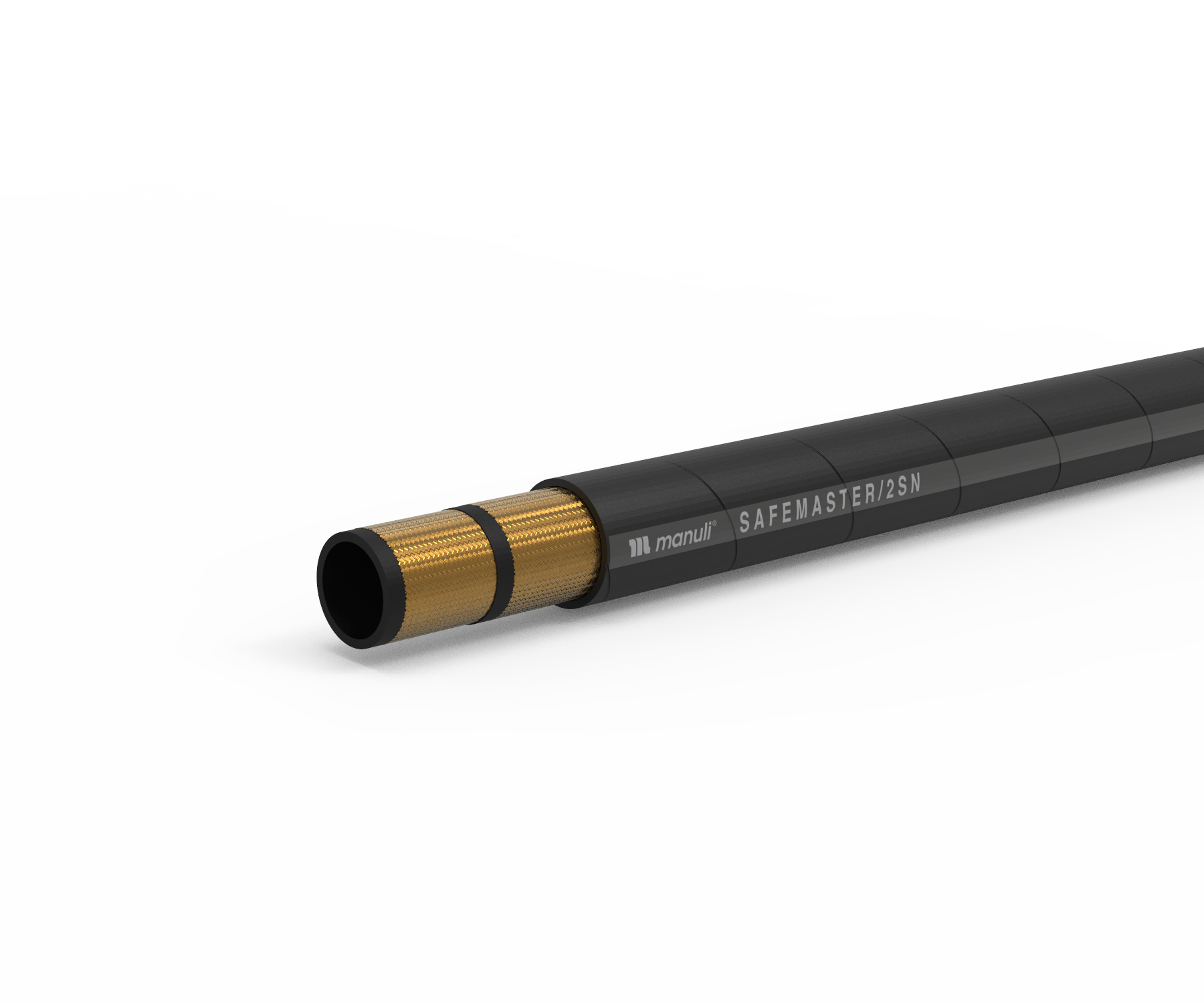

SAFEMASTER/2SN
RAILWAY - EN 45545-2
KEY FEATURES
• Good abrasion resistance
• High ozone and weather resistance
• Cover has flame retardant properties
• Cover has low density smoke when burning (EN 45545-2)
• Over-standard working pressures
APPLICATIONS & FLUIDS
- Hydraulics: medium-high pressure lines in severe environmental conditions, specific installations with tough abrasion conditions, railway hydraulic applications
- Mineral oils, vegetable and rape seed oils and synthetic ester based oils, glycols and polyglycols, oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
100 °C, 212 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Two high tensile steel wire braids
COVER
Synthetic rubber with high ozone, weather and heat resistance and flame retardant properties
APPLICABLE SPECS
Exceeds EN 853 2SN; SAE 100 R2AT; ISO 1436 2SN/R2AT
TYPE APPOVALS
EN 45545-2; CU-TR
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01165006* | 6 | -4 | 1/4″ | 12.7 | 0.50 | 14.7 | 0.58 | 400 | 5,800 | 1,750 | 25,380 | 50 | 1.97 | 356 | 0.24 | MF+M03400-04 | OPF-04 |
| H01165008* | 8 | -5 | 5/16″ | 14.3 | 0.56 | 16.3 | 0.64 | 350 | 5,070 | 1,480 | 21,460 | 60 | 2.36 | 394 | 0.26 | MF+M03400-05 | OPF-05 |
| H01165010* | 10 | -6 | 3/8″ | 16.7 | 0.66 | 18.7 | 0.74 | 350 | 5,070 | 1,400 | 20,300 | 70 | 2.76 | 520 | 0.35 | MF+M03400-06 | OPF-06 |
| H01165012* | 12 | -8 | 1/2″ | 19.8 | 0.78 | 21.8 | 0.86 | 350 | 5,070 | 1,400 | 20,300 | 89 | 3.50 | 651 | 0.44 | MF+M03450-08 | OPF-08 |
| H01165016* | 16 | -10 | 5/8″ | 23.0 | 0.91 | 25.0 | 0.98 | 250 | 3,620 | 1,020 | 14,790 | 100 | 3.94 | 713 | 0.48 | MF+M03400-10 | OPF-10 |
| H01165019* | 19 | -12 | 3/4″ | 27.0 | 1.06 | 29.0 | 1.14 | 215 | 3,110 | 900 | 13,050 | 130 | 5.12 | 910 | 0.61 | MF+M03400-12 | OPF-12 |
| H01165025* | 25 | -16 | 1″ | 34.8 | 1.37 | 36.8 | 1.45 | 175 | 2,530 | 670 | 9,710 | 160 | 6.30 | 1,256 | 0.84 | MF+M03400-16 | OPF-16 |
| H01165031* | 31 | -20 | 1.1/4″ | 44.3 | 1.74 | 47.0 | 1.85 | 140 | 2,030 | 600 | 8,700 | 419 | 16.50 | 1,898 | 1.28 | MF+M03400-20 | OPK-20 |
| H01165038* | 38 | -24 | 1.1/2″ | 50.7 | 2.00 | 53.4 | 2.10 | 100 | 1,450 | 500 | 7,250 | 500 | 19.69 | 2,227 | 1.50 | MF+M03400-24 | OPK-24 |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
