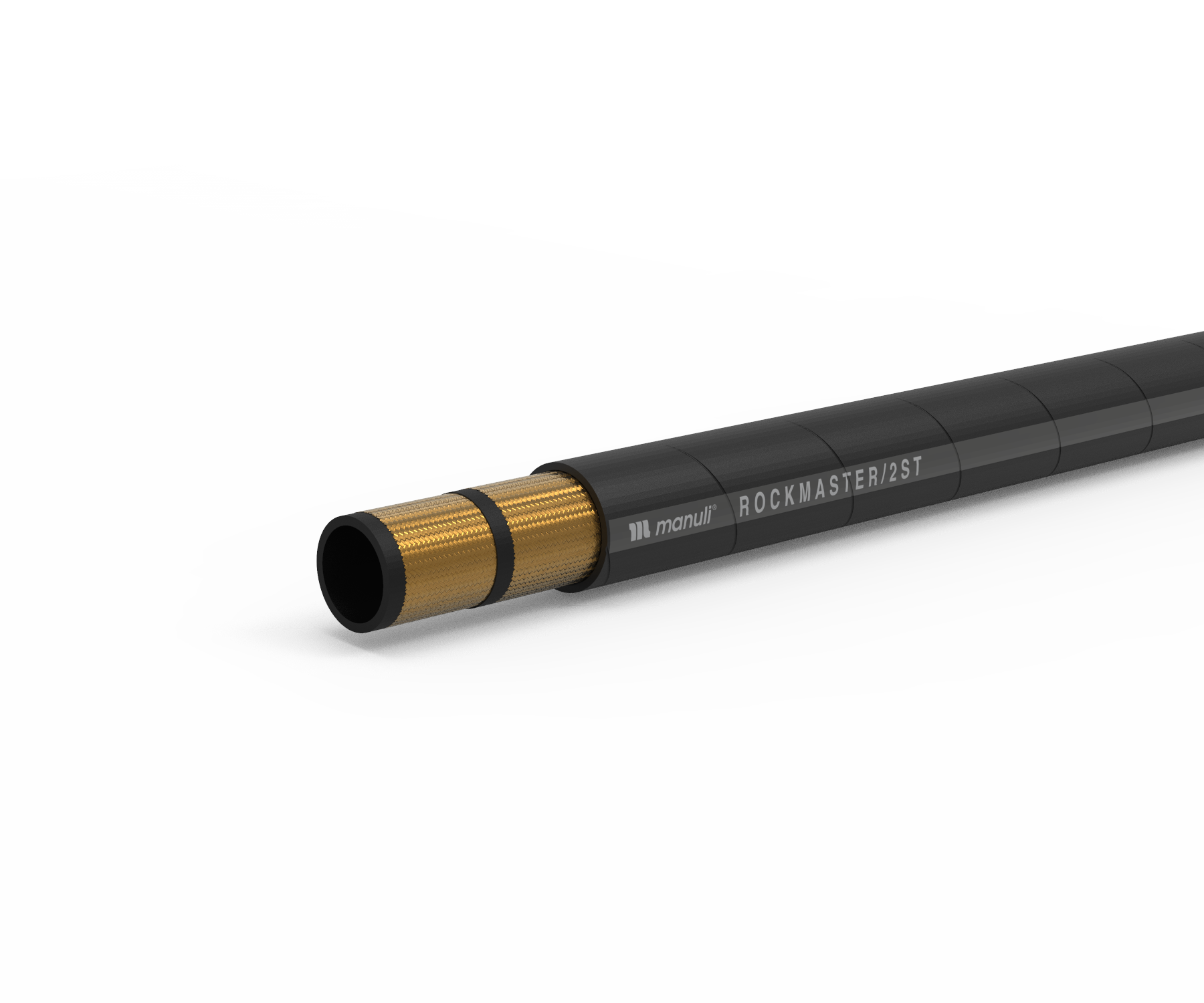

ROCKMASTER/2ST
ABRASION, WEATHER AND HEAT RESISTANCE
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01035005* | 5 | -3 | 3/16" | 11.3 | 0.44 | 15.6 | 0.61 | 415 | 6,010 | 2,000 | 29,000 | 89 | 3.50 | 385 | 0.26 | MF+M00910-03 | – |
| H01035006* | 6 | -4 | 1/4" | 12.7 | 0.50 | 17.2 | 0.68 | 400 | 5,800 | 1,750 | 25,380 | 100 | 3.94 | 450 | 0.30 | MF+M00910-04 | – |
| H01035008* | 8 | -5 | 5/16" | 14.3 | 0.56 | 18.9 | 0.74 | 350 | 5,070 | 1,480 | 21,460 | 114 | 4.49 | 500 | 0.34 | MF+M00910-05 | – |
| H01035010* | 10 | -6 | 3/8" | 16.7 | 0.66 | 21.3 | 0.84 | 350 | 5,070 | 1,400 | 20,300 | 127 | 5.00 | 640 | 0.43 | MF+M00920-06 | – |
| H01035012* | 12 | -8 | 1/2" | 19.8 | 0.78 | 24.5 | 0.96 | 350 | 5,070 | 1,400 | 20,300 | 178 | 7.01 | 790 | 0.53 | MF+M00910-08 | – |
| H01035016* | 16 | -10 | 5/8" | 23.0 | 0.91 | 27.7 | 1.09 | 250 | 3,620 | 1,020 | 14,790 | 200 | 7.87 | 870 | 0.58 | MF+M00910-10 | – |
| H01035019* | 19 | -12 | 3/4" | 27.0 | 1.06 | 31.6 | 1.24 | 215 | 3,110 | 900 | 13,050 | 240 | 9.45 | 1,100 | 0.74 | MF+M00930-12 | – |
| H01035025* | 25 | -16 | 1" | 34.8 | 1.37 | 39.5 | 1.56 | 175 | 2,530 | 670 | 9,710 | 300 | 11.81 | 1,510 | 1.01 | MF+M00930-16 | – |
| H01035032* | 31 | -20 | 1.1/4" | 44.3 | 1.74 | 50.6 | 1.99 | 140 | 2,030 | 600 | 8,700 | 419 | 16.50 | 2,310 | 1.55 | MF+M00920-20 | – |
| H01035040* | 38 | -24 | 1.1/2" | 50.7 | 2.00 | 57.0 | 2.24 | 100 | 1,450 | 500 | 7,250 | 500 | 19.69 | 2,683 | 1.80 | MF+M00910-24 | – |
| H01035051* | 51 | -32 | 2" | 63.5 | 2.50 | 69.8 | 2.75 | 90 | 1,300 | 420 | 6,090 | 630 | 24.80 | 3,410 | 2.29 | MF+M00910-32 | – |
KEY FEATURES
• High robustness of the cover for mining applications and tough handling
• Superior abrasion resistance
• High ozone and weather resistance
• Flame resistance to a wide range of specs.
• Antistatic and anti-toxic cover
• Over standard pressure resistance
APPLICATIONS & FLUIDS
• Hydraulics: medium-high pressure lines in severe environmental conditions, specific installations with tough abrasion conditions, marine applications, underground and open pit mining
• Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
100 °C, 212 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Two high tensile steel braids
COVER
STRONG – TYPE “SD”
Synthetic rubber with high abrasion, ozone, weather and heat resistance
APPLICABLE SPECS
Exceeds EN 853 2ST; SAE 100 R2A; ISO 1436 2ST/R2A
TYPE APPROVALS
BV; CU-TR; LR; B; MSHA; FRAS; ABS; RINA
