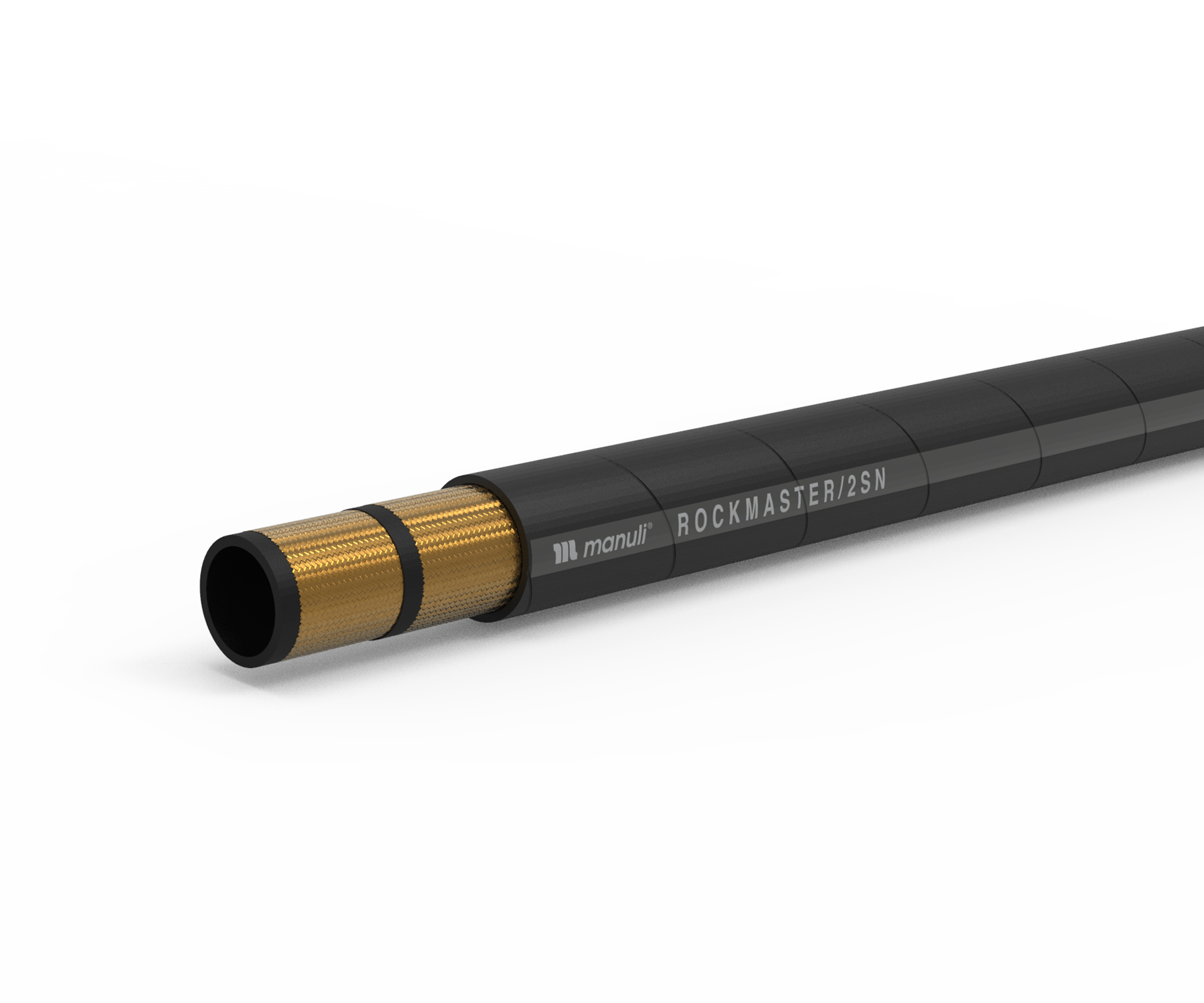

ROCKMASTER/2SN

ABRASION, WEATHER AND HEAT RESISTANCE

KEY FEATURES

• Superior abrasion resistance
• High ozone and weather resistance
• Flame resistance to a wide range of specs.
• Antistatic and anti-toxic cover
• Over standard pressure resistance

APPLICATIONS & FLUIDS

Hydraulics: medium-high pressure lines in severe environmental conditions, specific installations with tough abrasion conditions, marine applications, underground and open pit mining
Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water

CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
100 °C, 212 °F

TUBE
Oil resistant synthetic rubber

REINFORCEMENT
Two high tensile steel braids

COVER
STRONG – TYPE “SD”
Synthetic rubber with high abrasion, ozone, weather and heat resistance

APPLICABLE SPECS
Exceeds EN 853 2SN; SAE 100 R2AT; ISO 1436 2SN/R2AT

TYPE APPOVALS
ABS; BV; DNV-GL; DNV-GL (MED); LR; FRAS; CU-TR; MSHA; RINA ; B; NK; MA; DIN 5510-2; CCS; KRS

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
