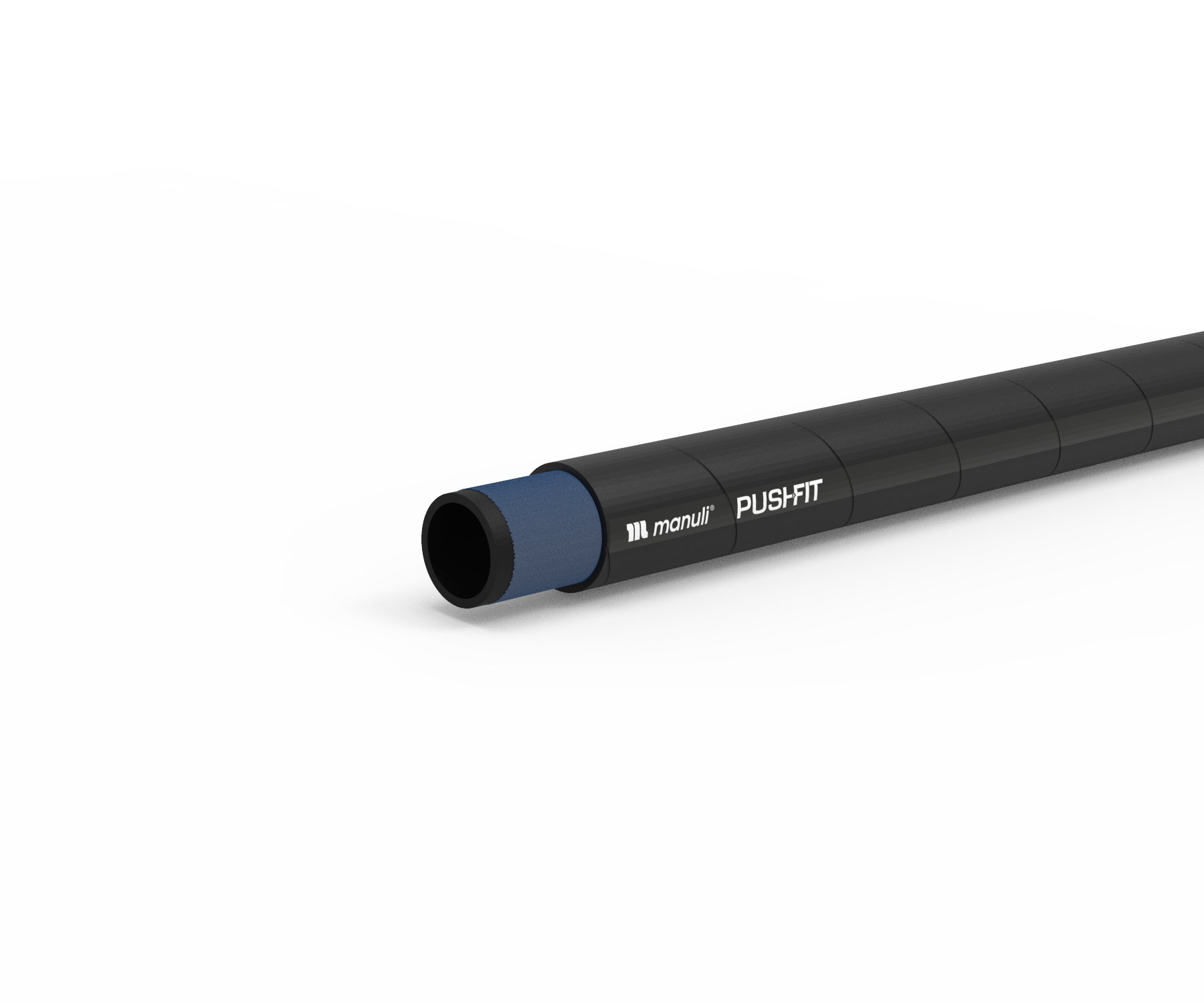

PUSHFIT
PUSH-ON HOSE
KEY FEATURES
• Push-On hose with MF2000® Push-Lock insert Type without ferrule
• High aging resistance
• Robust assemblies (clamps recommended in long lasting mission profiles applications)
• High flexibility and easy routing
APPLICATIONS & FLUIDS
- Push-on hose for low pressure lines, return lines, drain lines. Used in various industrial applications, stationary and mobile equipment
- Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
100 °C, 212 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
One textile braid
COVER
Weather resistant synthetic rubber
APPLICABLE SPECS
Manuli® Design
TYPE APPOVALS
CU-TR
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H09066006* | 6 | -4 | 1/4″ | 0.0 | 0.00 | 12.7 | 0.50 | 35 | 500 | 140 | 2,030 | 76 | 2.99 | 130 | 0.09 | PL-04 | – |
| H09066008* | 8 | -5 | 5/16″ | 0.0 | 0.00 | 14.3 | 0.56 | 35 | 500 | 140 | 2,030 | 76 | 2.99 | 155 | 0.10 | PL-05 | – |
| H09066010* | 10 | -6 | 3/8″ | 0.0 | 0.00 | 15.8 | 0.62 | 35 | 500 | 140 | 2,030 | 76 | 2.99 | 175 | 0.12 | PL-06 | – |
| H09066012* | 12 | -8 | 1/2″ | 0.0 | 0.00 | 19.6 | 0.77 | 25 | 360 | 100 | 1,450 | 127 | 5.00 | 235 | 0.16 | PL-08 | – |
| H09066016* | 16 | -10 | 5/8″ | 0.0 | 0.00 | 23.6 | 0.93 | 25 | 360 | 100 | 1,450 | 150 | 5.91 | 320 | 0.22 | PL-10 | – |
| H09066019* | 19 | -12 | 3/4″ | 0.0 | 0.00 | 26.2 | 1.03 | 21 | 300 | 84 | 1,210 | 180 | 7.09 | 340 | 0.23 | PL-12 | – |
| H09066025* | 25 | -16 | 1″ | 0.0 | 0.00 | 33.0 | 1.30 | 14 | 200 | 56 | 810 | 240 | 9.45 | 455 | 0.31 | PL-16 | – |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
