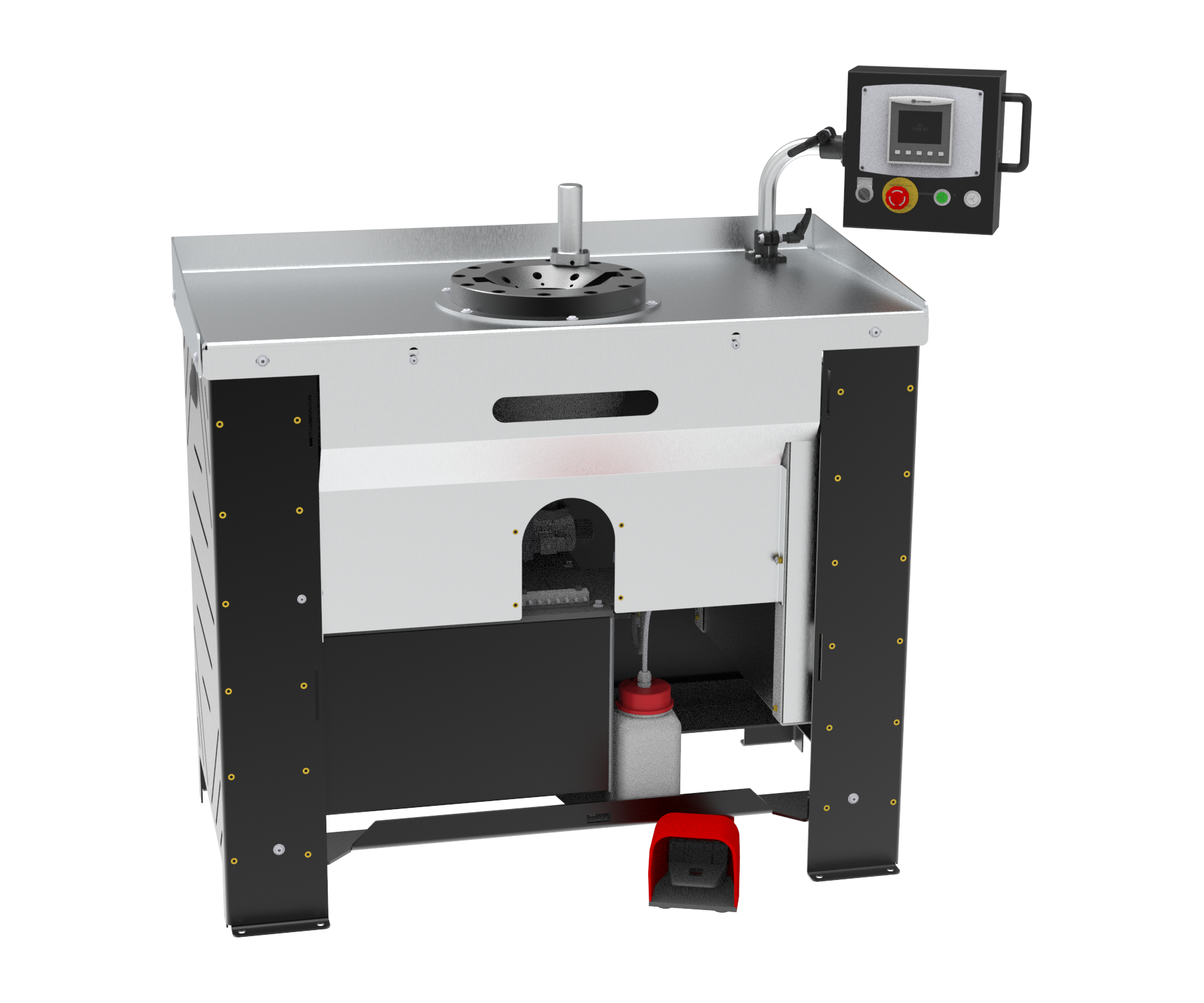

N CRIMP 70 / 80
PEP 108/158
EXPERT SERVICE LINE
KEY FEATURES
• Easy to use
• Accurate
• Robust die holder system
• Semi automatic opening
• High speed
• Large opening and caapcity
• Available with SCE control panel
| N CRIMP 70 | N CRIMP 80 | |
| CAPACITY* | 1-1/2” | 3” |
| CRIMP RANGE | 4 – 60 mm (0.157 – 2.362”) |
4 – 110 mm (0.157 – 4.331”) |
| CRIMP FORCE | 70 t | 80 t |
| COMPLETE OPENING | 108 mm (4.252”) | 156 mm (6.142”) |
| OPENING WITH DIES | +28 mm (+1.102 ”) | +38 mm (1.496”) |
| MASTER DIE LENGTH | 100 mm (3.937”) | 125 mm (4.921”) |
| MOTOR | 4 kw | |
| VOLTAGES | 230V, 3Ph 400V, 3 Ph |
|
| MACHINE DIMENSIONS | 1120 x 560 x 940 mm (44 x 22 x 37”) |
|
| PACKAGING | 1200 x 850 x 1500 mm (47 x 33 x 59 ”) | |
| NET WEIGHT | 380 kg | 450 kg |
*Indicative capacities depending on hose and fitting type.
 |
 |
 |
|||

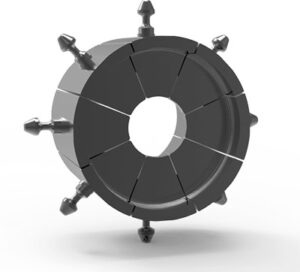

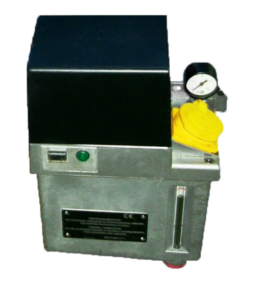

| AUTOMATIC CENTRAL GREASING PUMP | PRE-CRIMPING DIE SETS |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
