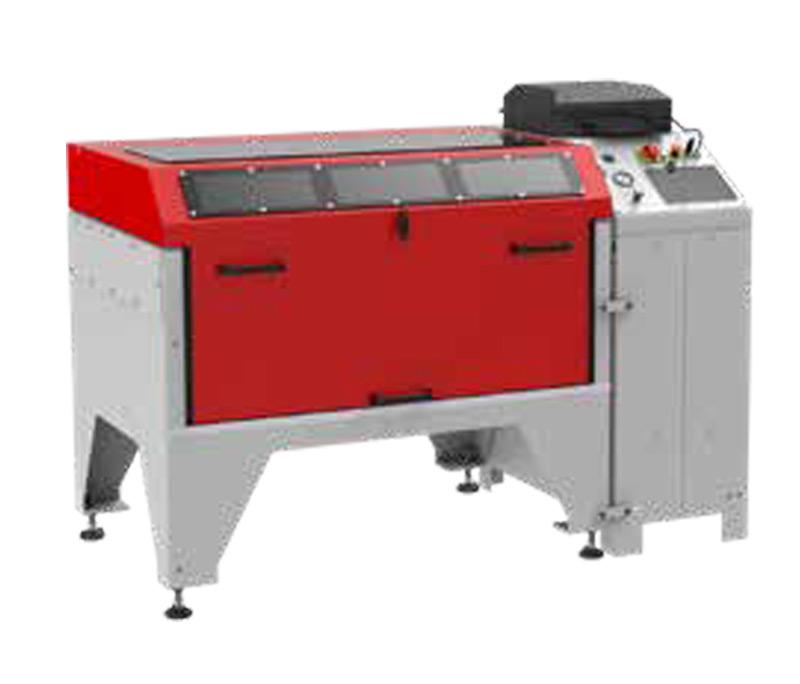

MH-MTB-2000-XL

MTB 2000 XL

TEST BENCH, PROOF PRESSURE & CERTIFY
STAND TYPE MACHINE

KEY FEATURES
• Easy to use and robust
• Safe: Steel Compartment, polycarbonate transparent window and metal mesh
• Large testing area for up to 6 hoses
• Variable pressure up to 2000 bar

INDICATIVE CAPACITY
3/16’’ – 2’’

HOSE CONNECTION
6 maximum

AIR CONSUMPTION
1000 L/min

OPENING/CLOSING TIME
10-14 seconds

MAX PRESSURE
2000 bar (29000 psi)

INNER TANK CAPACITY
1400 x 900 x 600 mm
(55 x 35 x 24”)

DIMENSION PANEL
700 x 1200 x 1220 mm
(28 x 47 x 48”)

 PACKAGING (TANK)
1600 x 1200 x 1280 mm
(63 x 47 x 50”)

PACKAGING PANEL
1000 x 1200 x 1280 mm
(39 x 47 x 50”)

NET WEIGHT
500 kg (1102 lb)

GROSS WEIGHT
600 kg (1323 lb)

TECHNICAL FEATURES
Minimum compressed air input 8.5 bar (123 psi)
Minimum test pressure 250 bar (3626 psi), with low pressure option 40 bar (725 psi) (only for XL ISD)

STANDARD OPTIONS

XL ISD:
• Light included
• 10” touch screen panel
• Printer

XL E:
• Light included
• Numerical measurement display with 4” touch screen and ethernet connection for computer report.

 FURTHER OPTIONS
– Autonomous filling pump
– Air blowing system for both models
