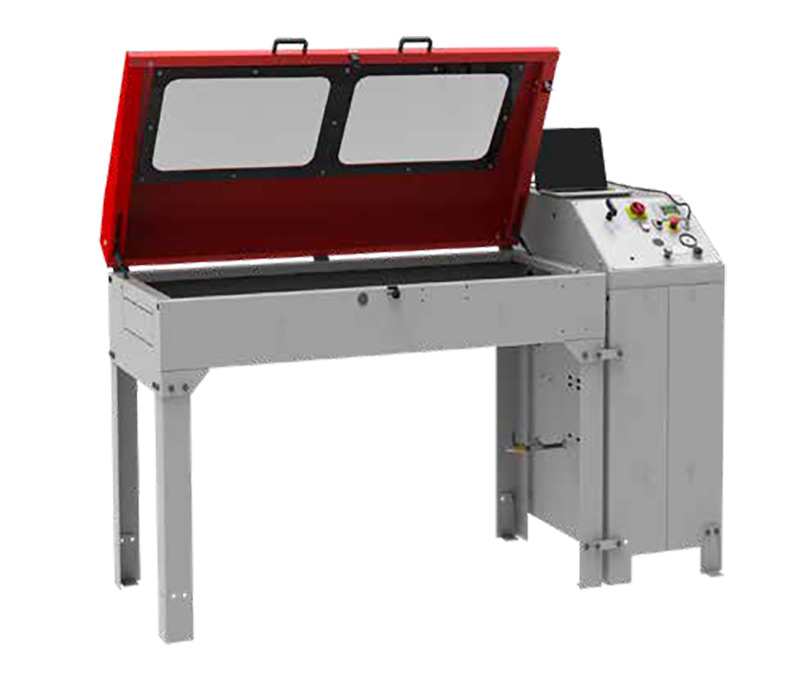

MH-MTB-2000L

MTB 2000 L

TEST BENCH, PROOF PRESSURE & CERTIFY
STAND TYPE MACHINE

KEY FEATURES
• Easy to use and robust
• Safe: Steel Compartment, polycarbonate transparent window and metal mesh
• Large testing area for up to 6 hoses
• Variable pressure up to 2000 bar

INDICATIVE CAPACITY
3/16’’ – 2’’

HOSE CONNECTION
6 maximum

AIR CONSUMPTION
1000 L/min

OPENING/CLOSING TIME
10-14 seconds

MAX PRESSURE
2000 bar (29000 psi)

INNER TANK CAPACITY
1700 x 790 x 200 mm
(67 x 31 x 8”)

DIMENSION PANEL
700 x 1200 x 1220 mm
(28 x 47 x 48”)

PACKAGING (TANK)
1600 x 1200 x 1280 mm
(63 x 47 x 50”)

PACKAGING PANEL
1000 x 1200 x 1280 mm
(39 x 47 x 50”)

NET WEIGHT
430 kg (948 lb)

GROSS WEIGHT
500 kg (1102 lb)
(47 x 39 x 64”)

TECHNICAL FEATURES
Minimum compressed air input 8.5 bar (123 psi)

DISPLAY FEATURES
M
Gauge measurement display

E
Numerical measurement display with 4” touch screen and ethernet connection for computer report and light

 FURTHER OPTIONS
– Autonomous filling pump
– Air blowing system for both models

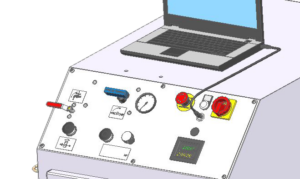

Power-unit-m power-unit-E
POWER UNIT M POWER UNIT E

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
