MS 450-200/P

XXL WORKSHOP

KEY FEATURES
• High crimp force (450 tonnes)
• Large opening
• Wide family of dies for industrial hoses
• Long master dies
• Robust & Ergonomic
• Metallic guard for the set stop
• Separated crimping head allowing flexible workshop arrangements
• Production options:
• “silent” central unit with 50 L tank
• Table with racks EVO
• 3 control panels available

CAPACITY*
Industrial: 4” & 6”

CRIMP RANGE
4 – 180 mm (0.157 – 7.087”)

CRIMP FORCE
450 t

OPENING WITH DIES**
+70 mm (+2.755”)

MASTER DIES OPENING***
270 mm (10.629”)

MASTER DIE LENGTH
125 mm (4.921”)

STANDARD DIES
14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 57, 63, 66, 70, 73, 76

Dies up to 180 mm available on request.

MOTOR
5.5 kW

VOLTAGES
220/240 V, 3Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
208/240 V, 3Ph, 60 Hz
380/415 V, 3Ph, 60 Hz

DIMENSIONS
830 x 775 x 1450 mm
(33 x 31 x 57”)

PACKAGING
1120 x 1020 x 1770 mm
(44 x 40 x 70”)

NET WEIGHT
450 kg (992 lb)
750 kg (pro version)

*Indicative capacities depending on hose and fitting type.
** working stroke 24 mm
*** Full passage 230 mm

Available upon request.


SC	SCE	SCS

Optional Accessories


DIE STORAGE	DIE STORAGE TABLE EVO	DIGITAL CALIPER	ALUMINIUM QUICK CHANGE GUN	ELECGTRICAL FOOGTSWITCH

MARKING DIES	DIE SETS FOR BRAKE & AIR CONDITIONING HOSES

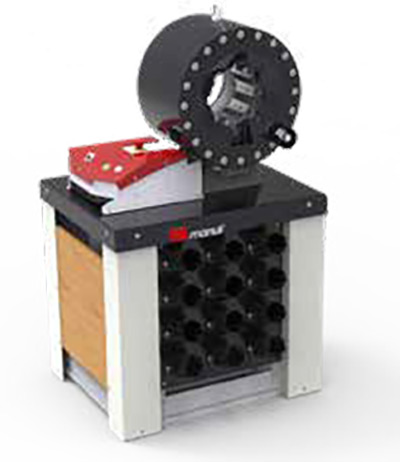

Production Version With Silent Central Unit.

MS-450-200-P-Producttion-Version

DESCRIPTION	N°	CRIMP RANGE
DIE SET N. 4 – LENGTH 56 MM	4	04-05
DIE SET N. 6 – LENGTH 56 MM	6	06-08
DIE SET N. 7 – LENGTH 56 MM	7	07-08
DIE SET N. 8 – LENGTH 56 MM	8	08-09
DIE SET N. 10 – LENGTH 56 MM	10	10-12
DIE SET N. 12 – LENGTH 56 MM	12	12-15
DIE SET N. 14 – LENGTH 56 MM	14	14-15
DIE SET N. 15 – LENGTH 56 MM	15	15-18
DIE SET N. 16 – LENGTH 56 MM	16	16-18
DIE SET N. 17 – LENGTH 56 MM	17	17-18
DIE SET N. 18 – LENGTH 56 MM	18	18-21
DIE SET N. 20 – LENGTH 56 MM	20	20-21
DIE SET N. 21 – LENGTH 56 MM	21	21-24
DIE SET N. 22 – LENGTH 56 MM	22	22-24
DIE SET N. 24 – LENGTH 90 MM	24	24-27
DIE SET N. 27 – LENGTH 90 MM	27	27-30
DIE SET N. 30 – LENGTH 90 MM*	30	30-33
DIE SET N. 30 – LENGTH 100 MM	30	30-33
DIE SET N. 33 – LENGTH 90 MM	33	33-36
DIE SET N. 36 – LENGTH 90 MM	36	36-39
DIE SET N. 39 – LENGTH 90 MM	39	39-42
DIE SET N. 42 – LENGTH 90 MM	42	42-45
DIE SET N. 45 – LENGTH 100 MM	45	45-48
DIE SET N. 48 – LENGTH 100 MM	48	48-51
DIE SET N. 51 – LENGTH 110 MM	51	51-57
DIE SET N. 54 – LENGTH 110 MM	54	54-57
DIE SET N. 57 – LENGTH 110 MM	57	57-62
DIE SET N. 60 – LENGTH 110 MM	60	60-62
DIE SET N. 62 – LENGTH 110 MM	62	62-66
DIE SET N. 62* – LENGTH 125 MM	62*	62-66
DIE SET N. 63 – LENGTH 125 MM	63	63-66
DIE SET N. 66 – LENGTH 110 MM	66	66-70
DIE SET N. 66* – LENGTH 125 MM	66*	66-70
DIE SET N. 70 – LENGTH 110 MM	70	70-72
DIE SET N. 70* – LENGTH 125 MM	70*	70-72
DIE SET N. 73 – LENGTH 125-28 MM, REINFORCED PIN	73	73-76
DIE SET N. 76 – LENGTH 125 MM	76	76-86
DIE SET N. 76* – LENGTH 135 MM	76*	76-86
DIE SET N. 80 – LENGTH 125 MM	80	80-82
DIE SET N. 82 – LENGTH 135 MM	82	82-90
DIE SET N. 86* – LENGTH 150 MM (FOR DIAMONDSPIR 2½”)	86*	86-90
DIE SET N. 90 – LENGTH 125 MM	90	90-95
DIE SET N. 95 – LENGTH 150 MM (FOR DIAMONDSPIR 2½”)	95*	95-105
DIE SET N. 99 – LENGTH 125 MM	99	95-105
DIE SET N. 105 – LENGTH 150 MM	105	99-109
DIE SET N. 112 – LENGTH 150 MM	112	112-122
DIE SET N. 117 – LENGTH 110 MM	117	117-127
DIE SET N. 122 – LENGTH 130 MM, REINFORCED PIN	122	122-130
