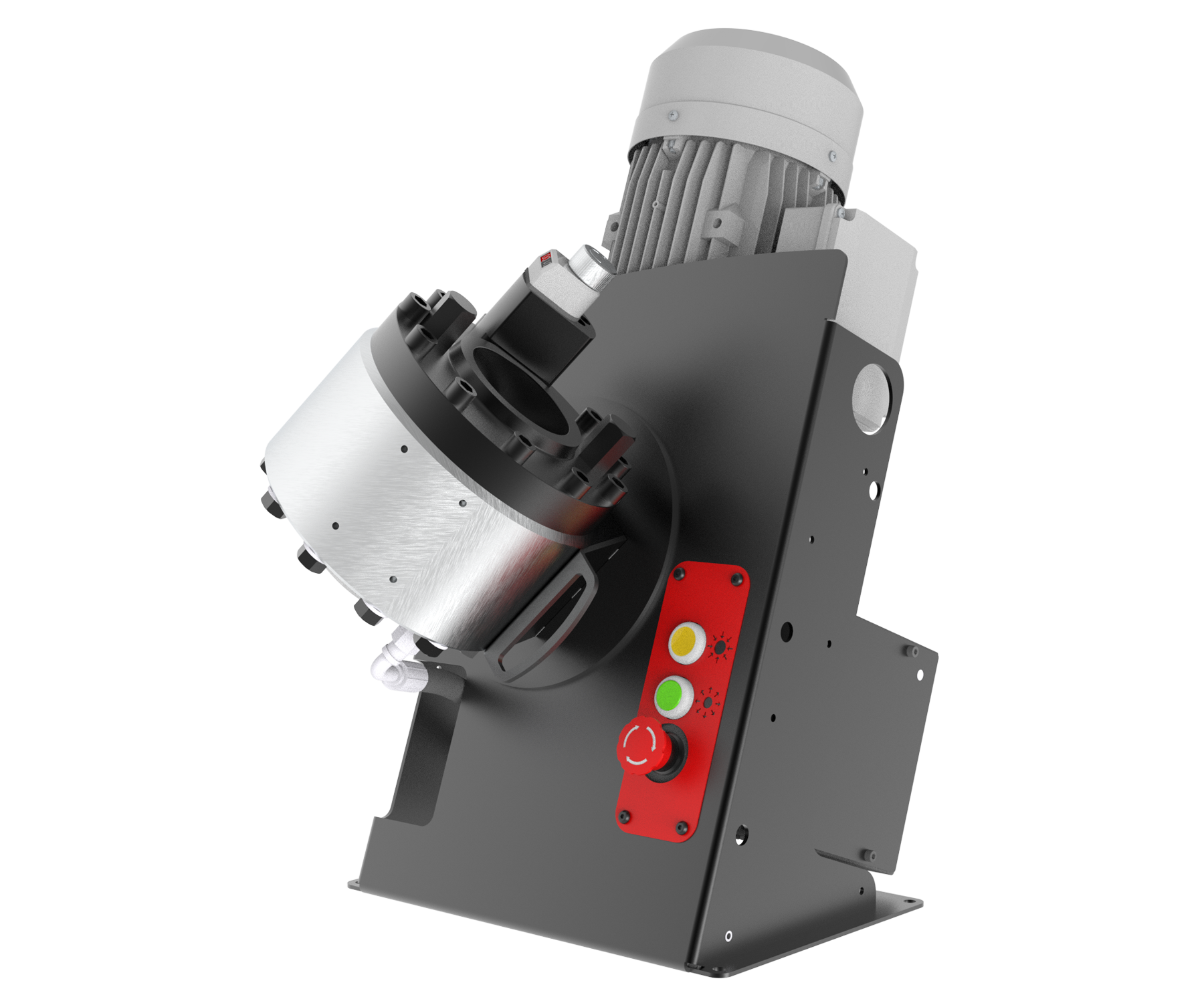

MRB-70-EVO-R

MRB 70 EVO R

MAINTENANCE WORKSHOP
VERTICAL BENCHTOP

KEY FEATURES
• Ergonomically positioned adjustable head
• Axis of the head situated perpendicular to the operator
• Compact

CAPACITY*
2wb: 1” max.
4ws: 3/4” max.

CRIMP RANGE
6 – 43 mm (0.236 – 1.692”)

CRIMP FORCE
70 t

OPENING WITH DIES
+20 mm (+0.787”)

COMPLETE OPENING
59 mm (2.323”)

MASTER DIE LENGTH
60 mm (2.362”)

STANDARD DIES
06, 08, 10, 12, 15, 18, 21, 24, 27, 30.

NOISE LEVEL
<70 bB A

 MOTOR
2.2 kW

VOLTAGES
220/240 V, 1Ph, 50 Hz
e380/415V, 3Ph + N, 50Hz

Others voltages available on request

DIMENSIONS
360 x 530 x 620 mm
(14 x 21 x 25”)

NET WEIGHT
58 kg ( 128 lb)

GROSS WEIGHT
71 kg (156 lb)

*Indicative capacities depending on hose and fitting type


MAINTENANCE KIT
DESCRIPTION N° CRIMP RANGE
DIE SET N. 06 – LENGTH 56 MM 6 06-08
DIE SET N. 08 – LENGTH 56 MM 8 08-10
DIE SET N. 10 – LENGTH 56 MM 10 10-12
DIE SET N. 12 – LENGTH 56 MM 12 12-14
DIE SET N. 14 – LENGTH 56 MM 14 14-15
DIE SET N. 15 – LENGTH 56 MM 15 15-16
DIE SET N. 16 – LENGTH 56 MM 16 16-18
DIE SET N. 18 – LENGTH 56 MM 18 18-20
DIE SET N. 20 – LENGTH 56 MM 20 20-21
DIE SET N. 21 – LENGTH 56 MM 21 21-22
DIE SET N. 22 – LENGTH 56 MM 22 22-24
DIE SET N. 24 – LENGTH 56 MM 24 24-27
DIE SET N. 27 – LENGTH 56 MM 27 27-30
DIE SET N. 30 – LENGTH 56 MM 30 30-39
KIT 3 DIE SETS HCRIMP110 (16 20 27) – –
KIT 7 DIE SETS HCRIMP110 (16 18 20 22 24 27 30) – –

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
