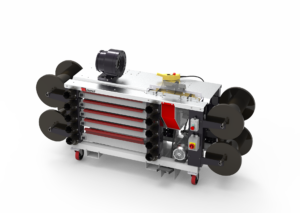

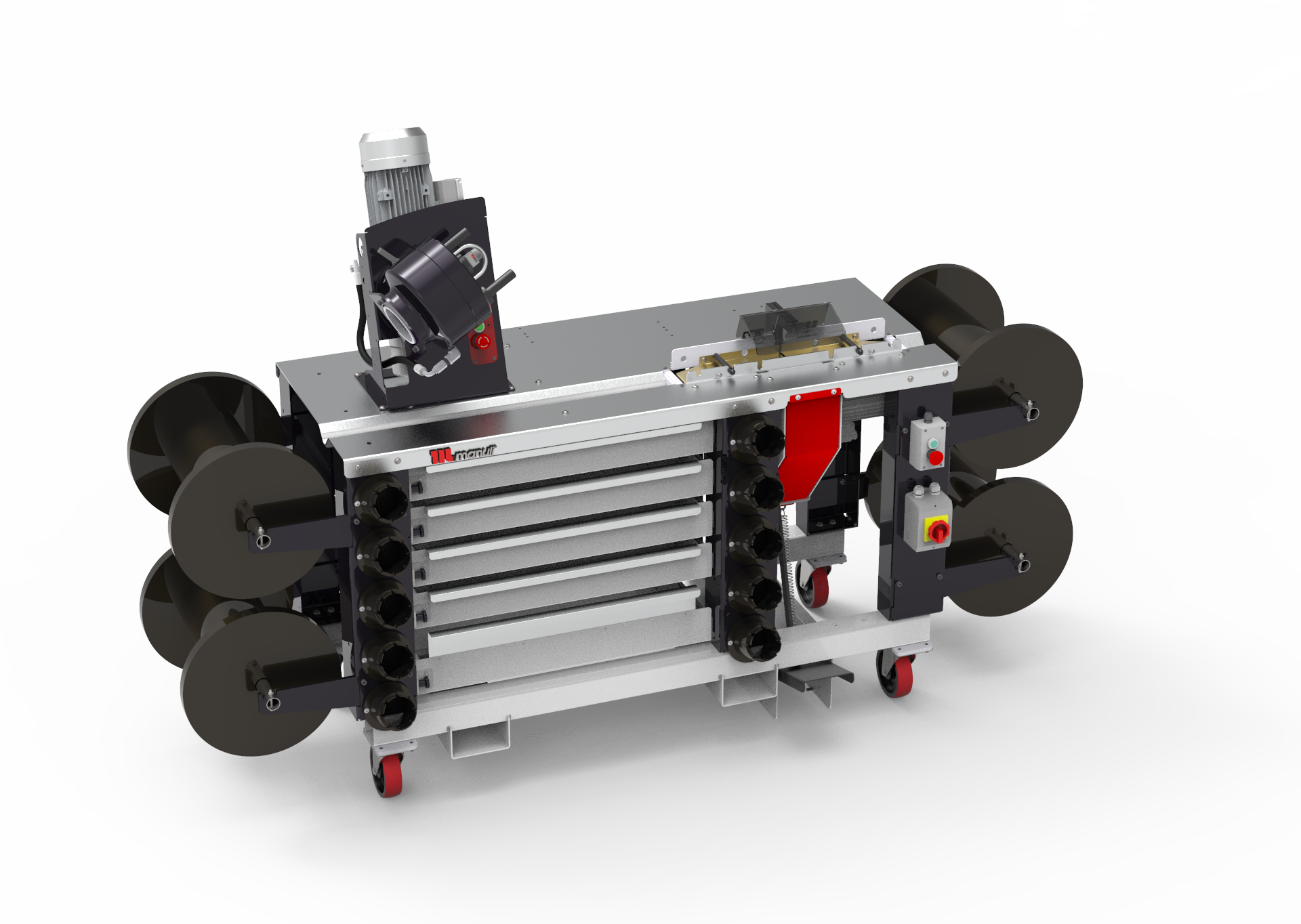

MOBILE WORKSHOP
ONSITE REPAIR
2-IN-1 MOBILE SOLUTION
KEY FEATURES
• Mobile solution
• 2-in-1 cutting and crimping
• Rotative head
• Integrated cutting machine
• Scalloped blade for efficient cuts
• Built-in pedal and dust collector
• Storage for hoses, fittings and dies
| VERSION 1″ 1/4 | VERSION 2″ | |
| CAPACITY* | 4 ws: 1”1/4 max. | 4 ws: 2”max. |
| CRIMP FORCE | 137 t | 240 t |
| COMPLETE OPENING | 108 mm (4.252”) | 118 mm (4.646”) |
| OPENING WITH DIES | +28 mm (+1.102 ”) | +38 mm (1.496”) |
| MASTER DIE LENGTH | 75 mm (2.953”) | 100 mm (3.937”) |
| MOTOR | 2.2 kW (crimping machine) 3 kW (stand type cutting machine) |
|
| VOLTAGES | 220/240 V-1 Ph-50 Hz 220/240 V-1 Ph-60 Hz 380/415 V-3 Ph + N-50 Hz |
|
| MACHINE DIMENSIONS | 2520 x 900 x 1670 mm (99 x 35 x 66”) |
2487 x 810 x 1370 mm (98 x 32 x 54”) |
| MACHINE WEIGHT | 382 kg (842 lb) | 433 kg (955 lb) |
| TECHNICAL FEATURES | 14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51 |
14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 57, 63, 66, 70 |
*Indicative capacities depending on hose and fitting type.
 |
||||
| ALUMINIUM QUICK CHANGE GUN |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
