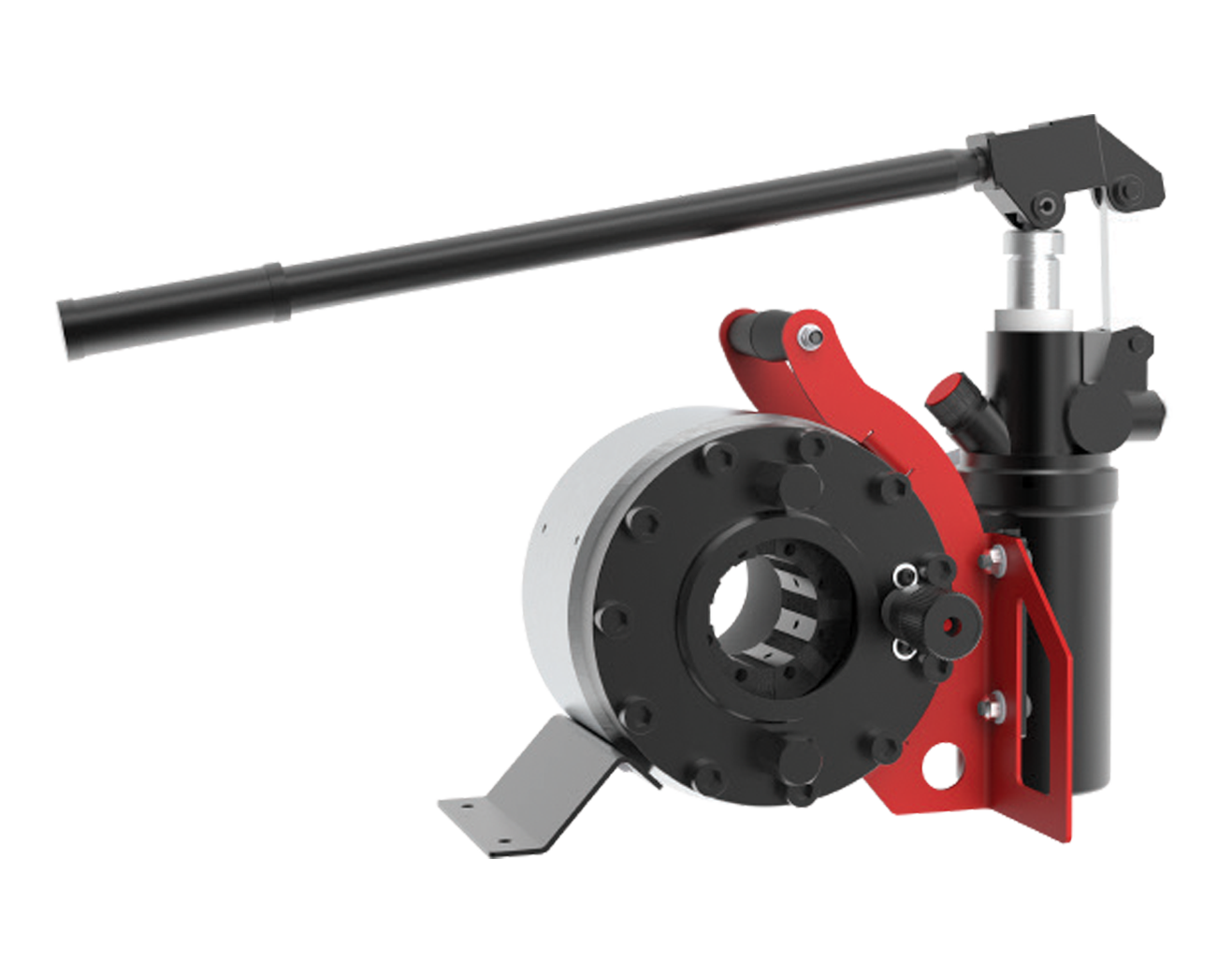

MHP 80

FIELD SERVICE & MOBILE WORKSHOP
HAND PUMP, PORTABLE

KEY FEATURES

• Compact
• Lightweight
• Easy to use
• Balanced design
• Dual stage pump

TECHNICAL SPECIFICATIONS

CAPACITY*

2wb: 1” max.
4ws: ½” max.

CRIMP RANGE

6 - 43 mm (0.157 - 1.693”)

CRIMP FORCE

80 t

OPENING WITH DIES

+20 mm (+0.787”)

COMPLETE OPENING

59 mm (2.323”)

MASTER DIE LENGTH

56 mm (2.205”)

STANDARD DIES

15, 18, 21, 24, 27, 30, 39**

DIMENSIONS

330 x 250 x 400 mm
(13 x 10 x 16”)

PACKAGING

800 x 600 x 830 mm
(31 x 24 x 33”)

NET WEIGHT

28 kg (62 lb)

GROSS WEIGHT

41 kg (90 lb)

TECHNICAL FEATURES

Hand pump: 5000 psi (double speed)

*Indicative capacities depending on hose and fitting type
** Master die is used as die set No. 39

OPTIONAL ACCESSORIES

MAINTENANCE KIT

HYDRO-PNEUMATIC PUMP
