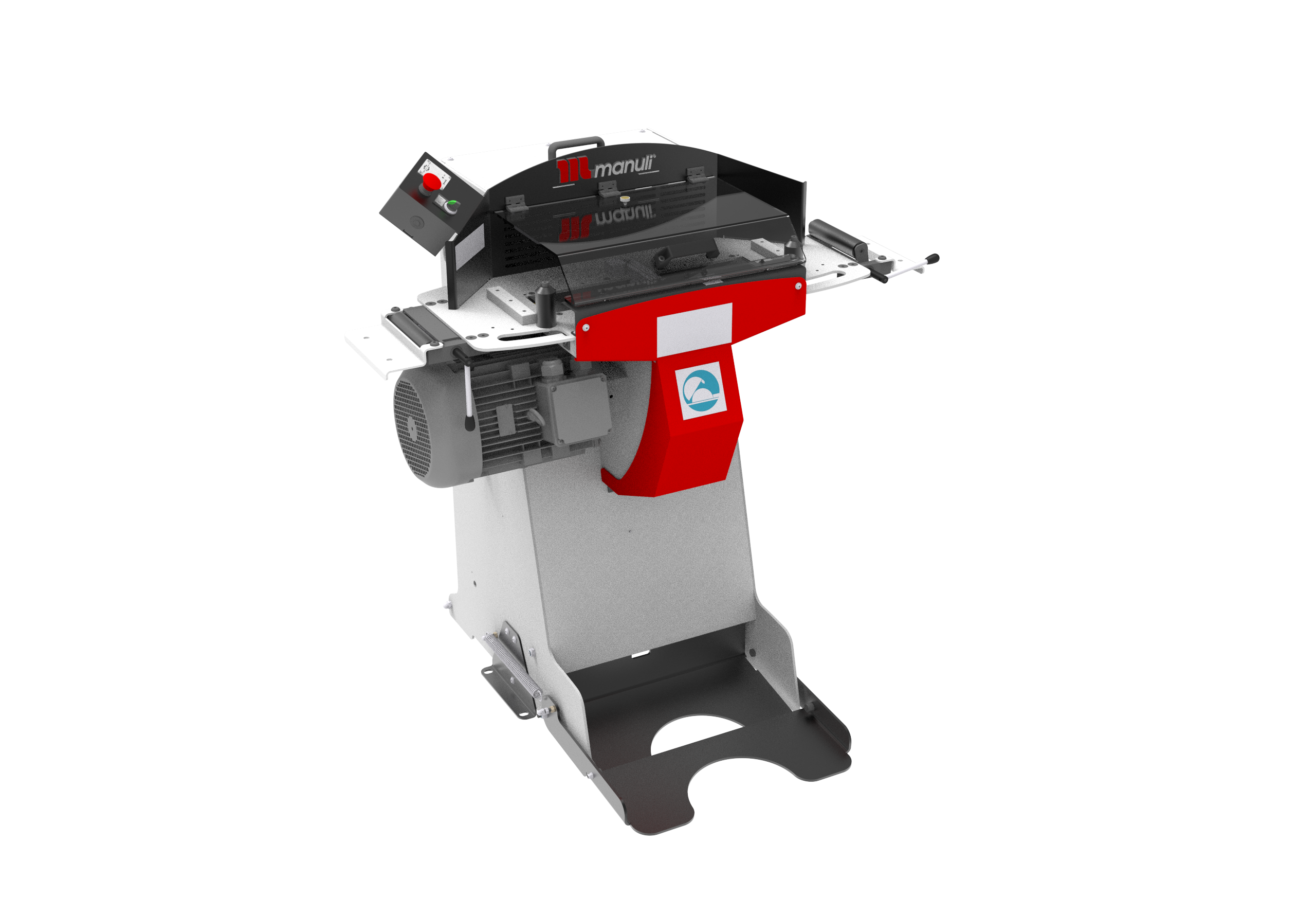

M 55 CUT P

M 55 CUT/P

EXPERT SERVICE LINE
STAND TYPE CUTTING MACHINE

KEY FEATURES
• Versatile, slotted blade for high performance with minimal smoke
• Ergonomic and functional design
• Double foot pedal system
• Safety cover and feeding guides for hose (easy and fast cutting operation)
• Digital counter for maintenance assistance
• Adjustable speed for cutting on pneumatic version

CAPACITY*
2wb: 2” max.
4ws: 2” max.
6ws: 2” max.
Industrial: 2”

ROTATION SPEED
3000 RPM

SLOTTED BLADE DIAMETER
400 mm (15.7”)

MAX. HOSE OD
80 mm (3.15”)

MOTOR
7.5 kW

VOLTAGES
220/240 V, 1Ph, 50/60 Hz
220/240 V, 3Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
208/240 V, 3Ph, 60 Hz
Other voltages available on request.

DIMENSIONS
1140 x 1000 x 1280 mm
(45 x 39 x 50”)

PACKAGING
1600 x 1200 x 1600 mm
(63 x 47 x 63”)

NET WEIGHT
240 kg (529 lb)

GROSS WEIGHT
280 kg (617 lb)

TECHNICAL FEATURES
Diameter of the suction connection:
150 mm (6”)

Options: Pneumatic bending
system, scalloped blade



* Indicative capacities depending on hose type.

MH-Standard-Optional-Control-Panel MH-Standard-Optional-Slotted-Blade-2 MH-Standard-Optional-Feeding-Guide MH-Standard-Optional-2-Dust-Collector
CONTROL PANEL SLOTTED BLADE FEEDING GUIDE DUST COLLECTOR
MH-Standard-Optional-Cutting-Rail MH-Standard-Optional-Decoiler MH-Standard-Optional-Smooth-Blade MH-Standard-Optional-DV-32 MH-Standard-Optional-Smoke-Extractor-2
CUTTING RAIL DECOILER SMOOTH BLADE DV 32 SMOKE EXTRACTOR
