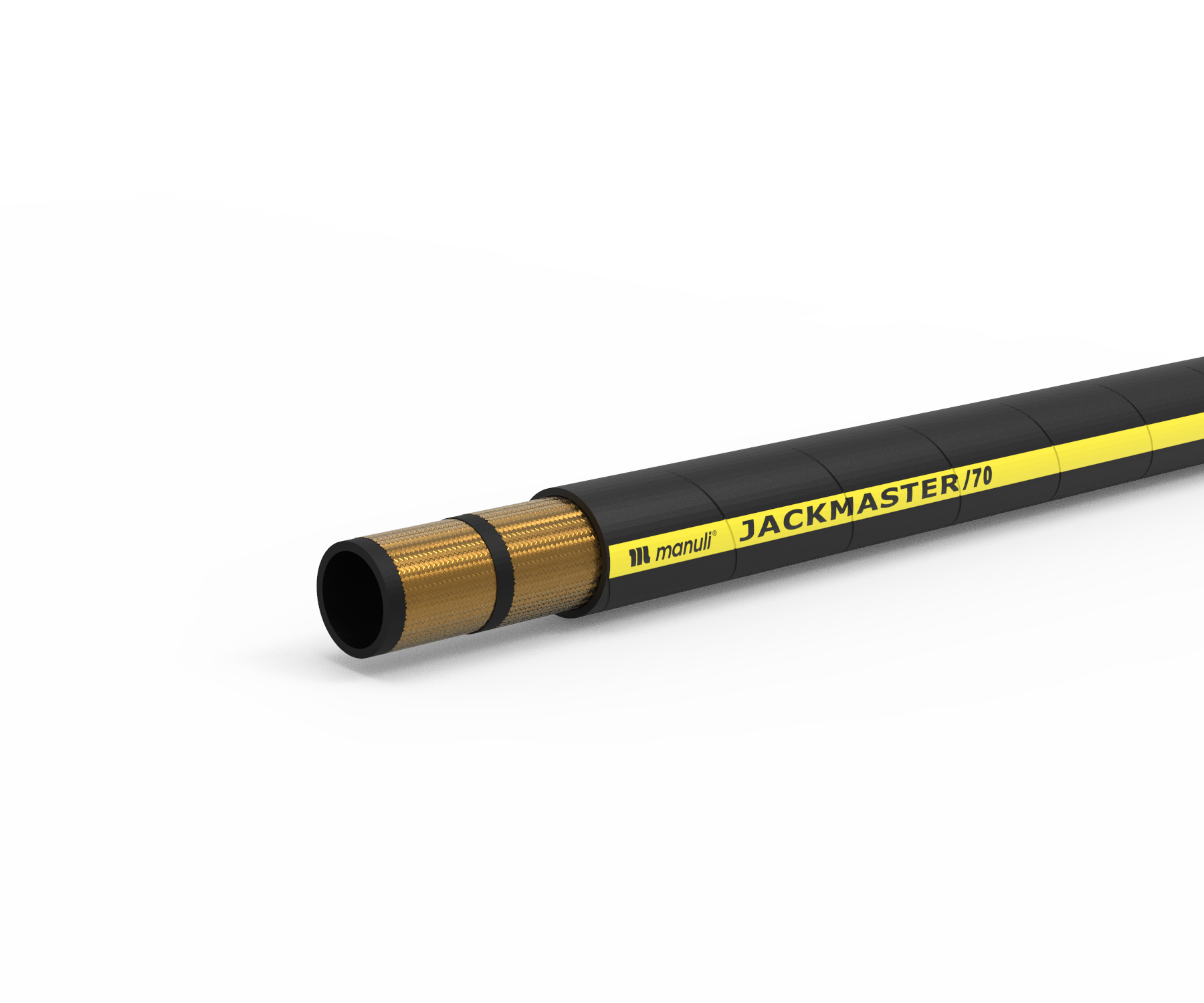

JACKMASTER/70
EXTREME STATIC PRESSURE
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01168006* | 6 | -4 | 1/4" | 12.7 | 0.50 | 14.7 | 0.58 | 700 | 10,510 | 1,750 | 25,380 | 100 | 3.94 | 370 | 0.25 | MF+M03400-04 | OPF-04 |
| H01168010* | 10 | -6 | 3/8" | 16.4 | 0.64 | 18.2 | 0.71 | 700 | 10,510 | 1,750 | 25,380 | 127 | 5.00 | 517 | 0.35 | MF+M03400-06 | OPF-06 |
KEY FEATURES
• Robust structure
• ISO 16301 Class 70, Grade 1
• Extreme static pressures in remote locations
• Test certificate available upon request
• Skive and no-skive fittings available
APPLICATIONS & FLUIDS
• Manually operated hydraulic jacking systems
• Mineral oils, vegetable oils, glycol and polyglycol based oils, synthetic ester based oils (up to 100°C/212°F)
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
100 °C, 212 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Two high tensile steel wire braids
COVER
Weather resistant synthetic rubber
APPLICABLE SPECS
ISO 16301 Class 70, Grade 1
TYPE APPROVALS
CU-TR
REMARKS
Product designed for jacking applications.
Any different use may reduce service life. Please contact Manuli Hydraulics for more information.
