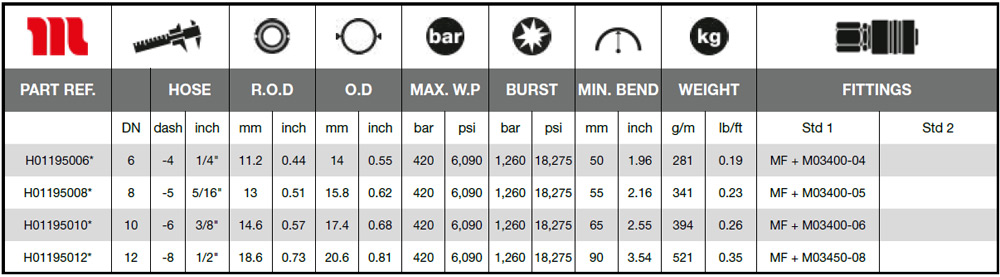

TECHNICAL DATA | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
H01195006* | 6 | -4 | 1/4" | 11.2 | 0.44 | 14 | 0.55 | 420 | 6,090 | 1,260 | 18,275 | 50 | 1.96 | 281 | 0.19 | MF + M03400-04 | |
H01195008* | 8 | -5 | 5/16" | 13 | 0.51 | 15.8 | 0.62 | 420 | 6,090 | 1,260 | 18,275 | 55 | 2.16 | 341 | 0.23 | MF + M03400-05 | |
H01195010* | 10 | -6 | 3/8" | 14.6 | 0.57 | 17.4 | 0.68 | 420 | 6,090 | 1,260 | 18,275 | 65 | 2.55 | 394 | 0.26 | MF + M03400-06 | |
H01195012* | 12 | -8 | 1/2" | 18.6 | 0.73 | 20.6 | 0.81 | 420 | 6,090 | 1,260 | 18,275 | 90 | 3.54 | 521 | 0.35 | MF + M03400-08 |
KEY FEATURES
• Wrapped surface
• Indelible branding
• Compact structure: easy handling, reduced bend radius
• Good abrasion resistance
• Safety Factor 3:1
APPLICATIONS & FLUIDS
• Water-cleaning equipment, ideal for hobby and semi-professional machines
• Water, mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion
CONTINUOUS SERVICE TEMPERATURE RANGE
-10 °C, 15 °F
135 °C, 275 °F

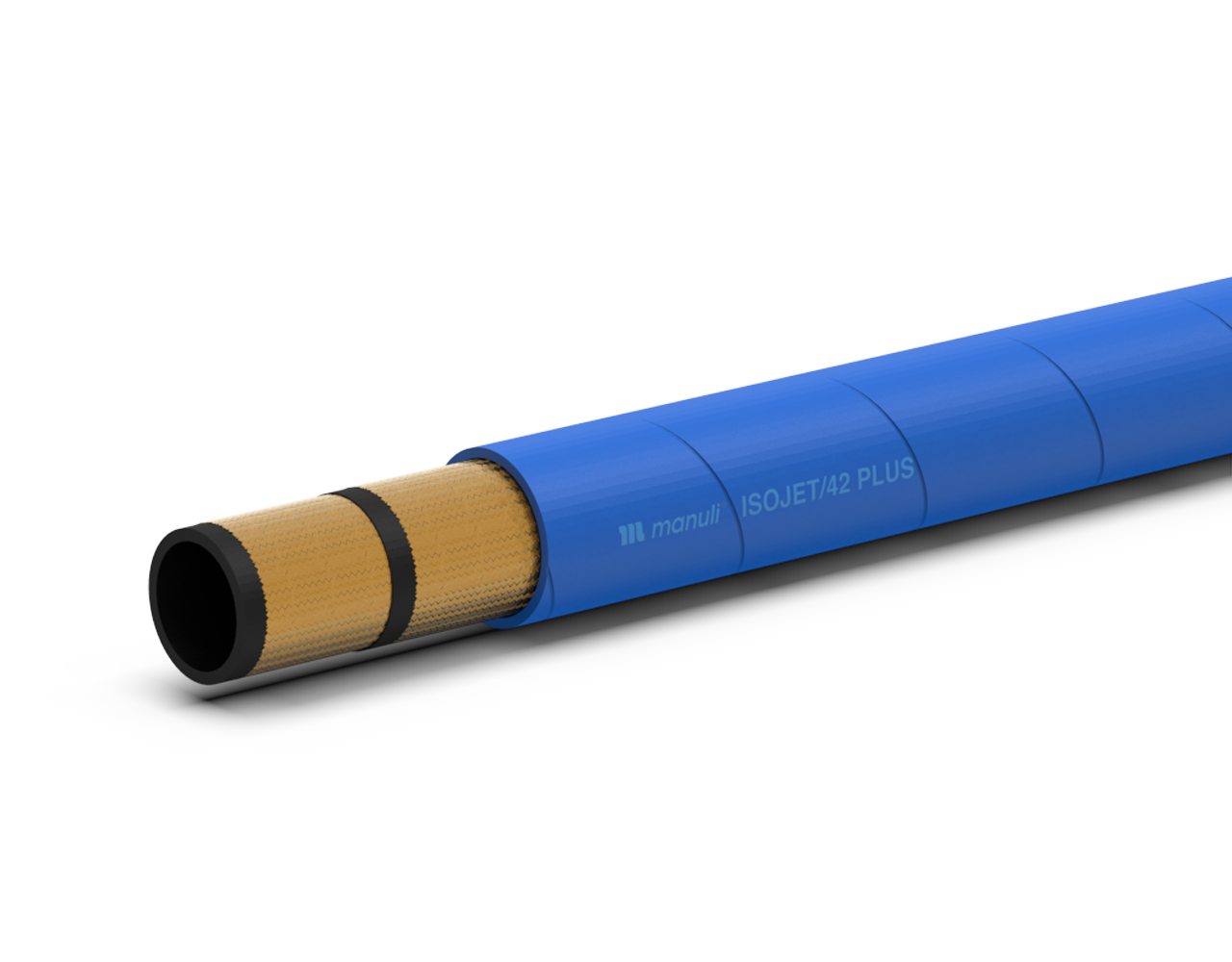

TUBE
Water resistant synthetic rubber
REINFORCEMENT
Two high tensile steel braids
COVER
Weather resistant synthetic rubber
APPLICABLE SPECS
Manuli® Design
