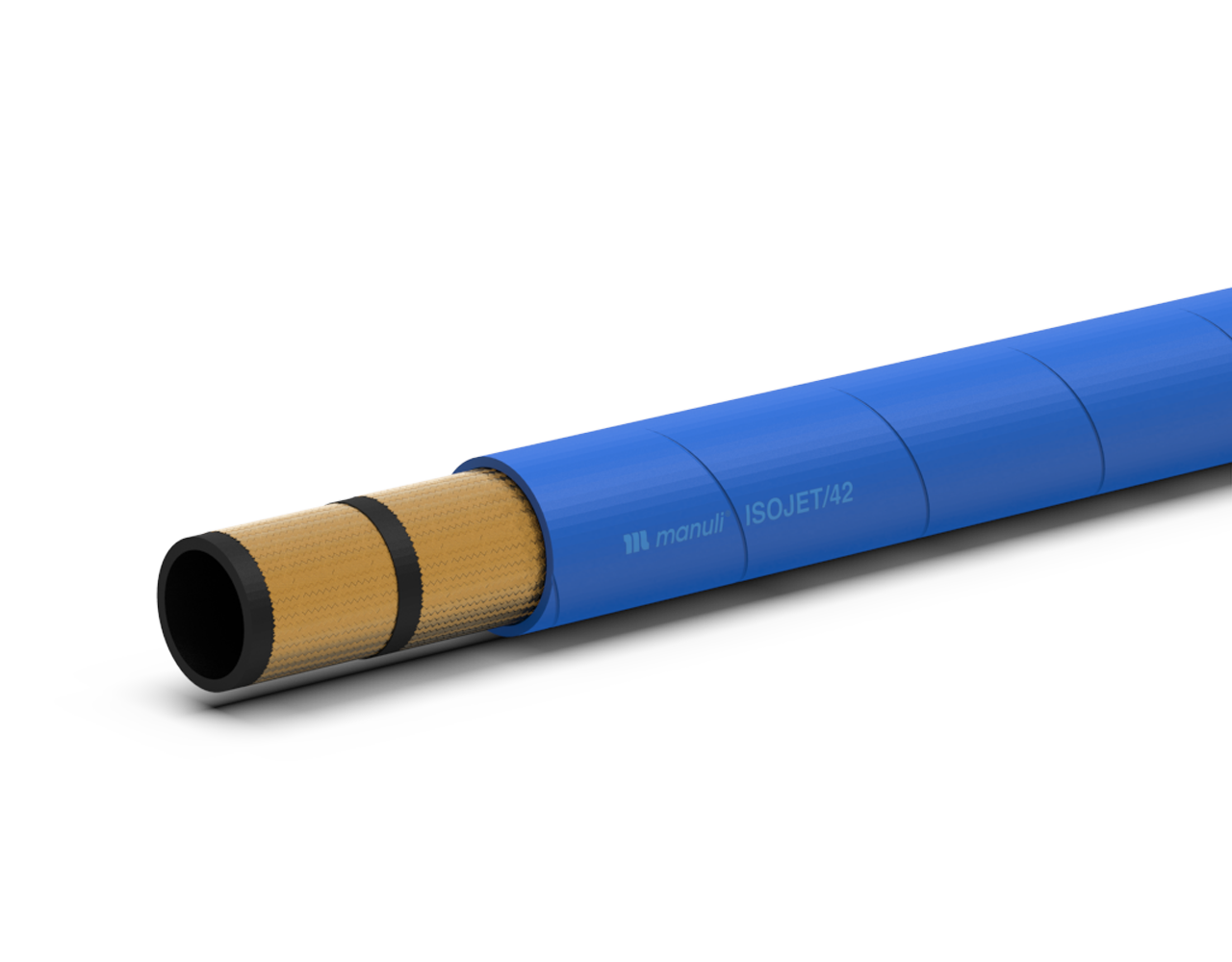

ISOJET/42 (BLUE)

PRESSURE WASH - BLUE VERSION

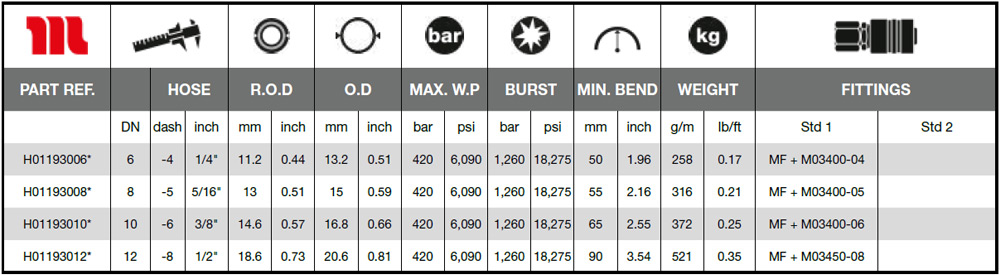

TECHNICAL DATA
# # # # # # # # #
PART REF. HOSE SIZE R.O.D O.D MAX. W.P BURST MIN. BEND WEIGHT FITTINGS
DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft Std 1 Std 2
H01193006* 6 -4 1/4" 11.2 0.44 13.2 0.51 420 6,090 1,260 18,275 50 1.96 258 0.17 MF + M03300-04
H01193008* 8 -5 5/16" 13 0.51 15 0.59 420 6,090 1,260 18,275 55 2.16 316 0.21 MF + M03300-05
H01193010* 10 -6 3/8" 14.6 0.57 16.8 0.66 420 6,090 1,260 18,275 65 2.55 372 0.25 MF + M03300-06
H01193012* 12 -8 1/2" 18.6 0.73 20.6 0.81 420 6,090 1,260 18,275 90 3.54 521 0.35 MF + M03300-08

KEY FEATURES

• Wrapped surface
• Indelible branding
• Compact structure: easy handling, reduced bend radius
• Good abrasion resistance
• Safety Factor 3:1

APPLICATIONS & FLUIDS

• Water-cleaning equipment, ideal for hobby and semi-professional machines
• Water, mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion

CONTINUOUS SERVICE TEMPERATURE RANGE

-10 °C, 15 °F
135 °C, 275 °F

TUBE

Water resistant synthetic rubber

REINFORCEMENT

Two high tensile steel braids

COVER

Weather resistant synthetic rubber

APPLICABLE SPECS

Manuli® Design
