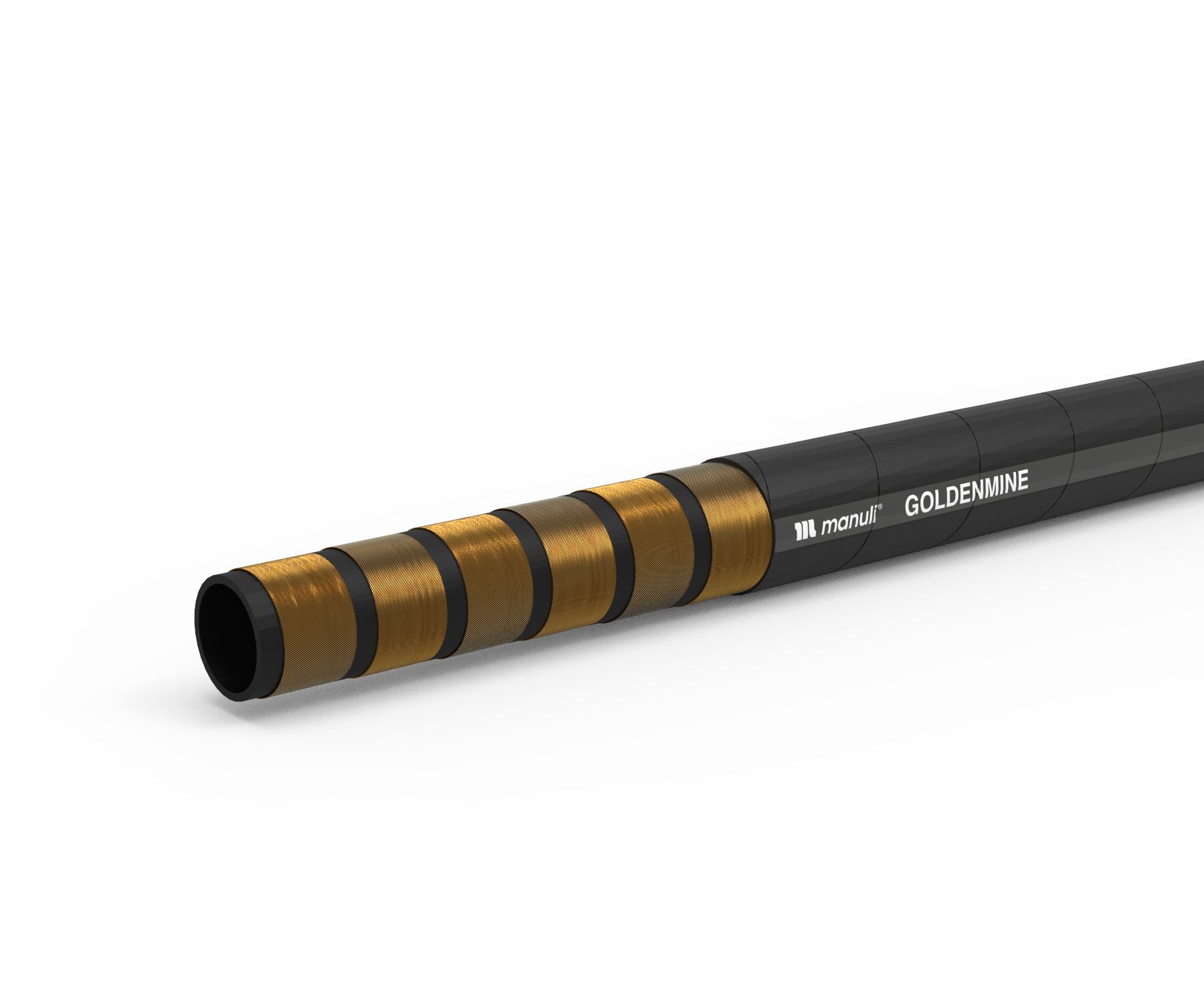

GOLDENMINE
CHINA COAL MINE HYDRAULICS
KEY FEATURES
• Very high flow rates in high pressure
• Extreme robustness of the hose structures
• Hose compact dimensions
• Approved with severe fatigue tests
• Superior abrasion resistance
• High ozone and weather resistance
• Flame retardant (MSHA) and antistatic properties
• Biological and mineral oils compatibility
• Crimped InterLock Plus fitting structure
APPLICATIONS & FLUIDS
- Hydraulics: heavy duty power lines in China coal mines, hydrostatic transmissions in severe environmental conditions, specific installations with tough abrasion conditions, underground and open pit mining.
- Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
121 °C, 250 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Six high tensile steel spirals
COVER
STRONG – TYPE “SC”
Synthetic rubber with high abrasion, ozone, weather and heat resistance and an extended operational temperature range
APPLICABLE SPECS
MT/T 98
TYPE APPOVALS
MA; MSHA; CU-TR
REMARKS
The brand of the hose reports Allowable Working Pressure (AWP) 50.0 MPa (500 bar), Safety Factor 2.8:1 according to the China Norm MT/T 98
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H10116063* | 63 | -40 | 2.1/2″ | 80.6 | 3.17 | 84.8 | 3.33 | 350 | 5,070 | 1,400 | 20,300 | 800 | 31.49 | 8,105 | 5.45 | IP+M01810-40 | – |
| H10116076* | 76 | – 48 | 3″ | 89.0 | 3.5 | 92.1 | 3.62 | 165 | 2,390 | 700 | 10,152 | 660 | 25.98 | 6,060 | 4.07 | IP + M01500-48 | – |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
