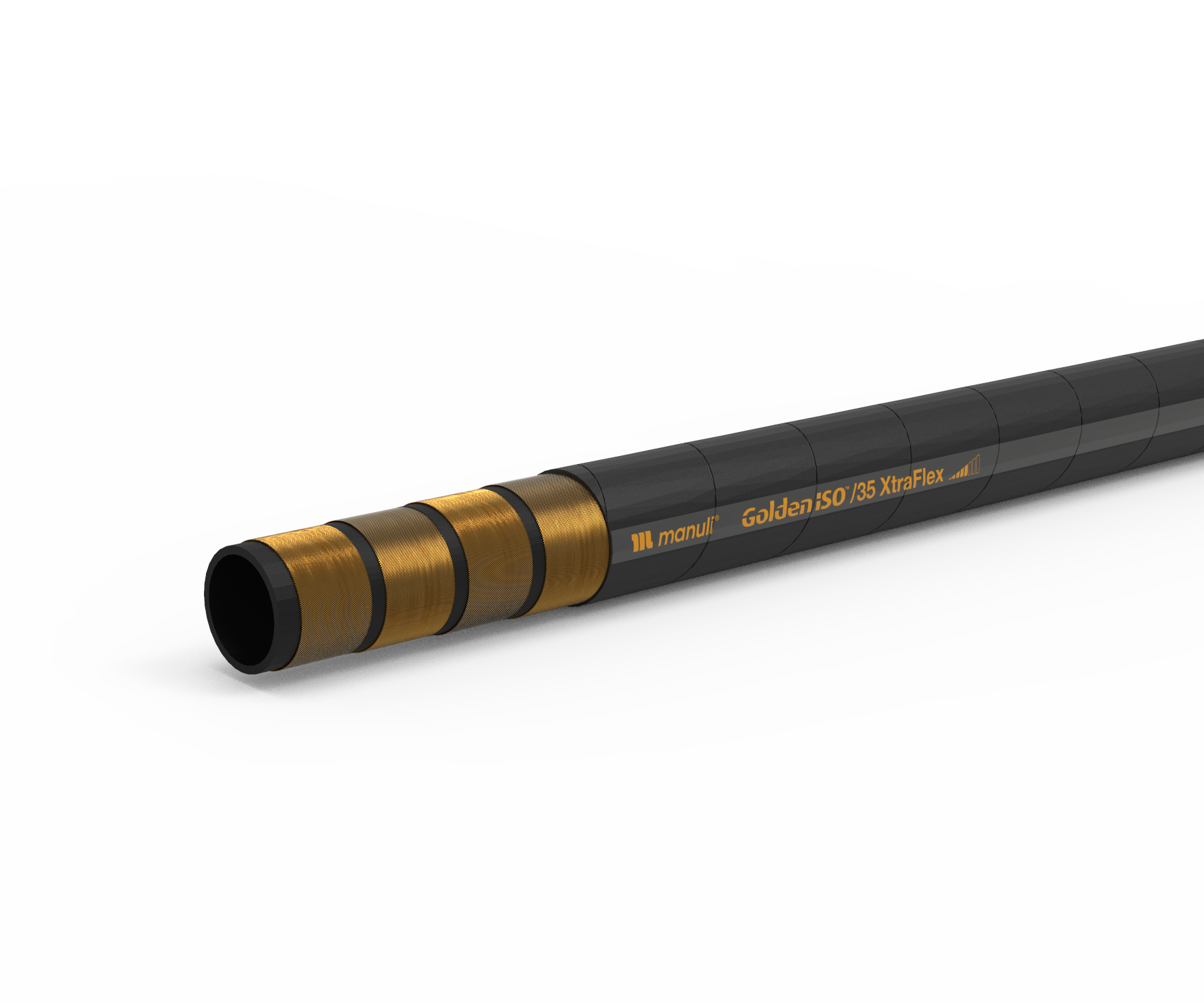

GOLDENISO/35 XTRAFLEX
COMPACTNESS AND FLEXIBILITY
KEY FEATURES
• Bend radius which exceeds the standard requirements by - 30% to -50%
• Good flexibility in the whole temperature range
• Easy mounting in any installation
• High impulse resistance according to ISO 18752 requirements
• Weight saving of 20% vs traditional R15 hose construction
• No-skive fitting solution is available
• Isobaric pressure rating for easy selection and product management
APPLICATIONS & FLUIDS
- High pressure power lines for general hydraulics
- Applications with installation constraints (short assemblies, compact spaces, low bend radii, etc.)
- Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-46 °C, -50 °F
121 °C, 250 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Four high tensile steel spirals (DN 10-31). Six high tensile steel spirals (DN 38, 51).
COVER
STRONG – TYPE “SC”
Synthetic rubber with high abrasion, ozone, weather and heat resistance and an extended operational temperature range
APPLICABLE SPECS
ISO 18752-C/D, JIS K6349-3, meets and exceed EN 856-R13 & ISO 3862-R13 performance
TYPE APPOVALS
DNV-GL; CU-TR; MSHA; FRAS; B; ABS; BV; LR; RINA; DNV-GL(MED); MA
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H10096010* | 10 | -6 | 3/8″ | 16.7 | 0.66 | 18.9 | 0.74 | 350 | 5,070 | 1,400 | 20,300 | 80 | 3.15 | 530 | 0.36 | MF+M00920-06 | OPK-06 |
| H10096012* | 12 | -8 | 1/2″ | 19.6 | 0.77 | 21.8 | 0.86 | 350 | 5,070 | 1,400 | 20,300 | 90 | 3.54 | 660 | 0.44 | MF+M00910-08 | OPK-08 |
| H10096016* | 16 | -10 | 5/8″ | 23.5 | 0.93 | 25.7 | 1.01 | 350 | 5,070 | 1,400 | 20,300 | 100 | 3.94 | 934 | 0.63 | MF+M00910-10 | OPK-10 |
| H10096019* | 19 | -12 | 3/4″ | 27.5 | 1.08 | 29.9 | 1.18 | 350 | 5,070 | 1,400 | 20,300 | 120 | 4.72 | 1,220 | 0.82 | IP+M01500-12 | SP+M05400-12 |
| H10096025* | 25 | -16 | 1″ | 34.6 | 1.36 | 37.0 | 1.46 | 350 | 5,070 | 1,400 | 20,300 | 150 | 5.91 | 1,800 | 1.21 | IP+M01500-16 | SP+M05400-16 |
| H10096031* | 31 | -20 | 1.1/4″ | 42.1 | 1.66 | 44.9 | 1.77 | 350 | 5,070 | 1,400 | 20,300 | 230 | 9.06 | 2,340 | 1.57 | IP+M01500-20 | SP+M05400-20 |
| H10096038* | 38 | -24 | 1.1/2″ | 52.9 | 2.08 | 56.1 | 2.21 | 350 | 5,070 | 1,400 | 20,300 | 300 | 11.81 | 4,165 | 2.80 | IP+M01600-24 | SP+M05500-24 |
| H10096051* | 51 | -32 | 2″ | 66.8 | 2.63 | 70.4 | 2.77 | 350 | 5,070 | 1,400 | 20,300 | 360 | 14.17 | 6,161 | 4.14 | IP+M01800-32 | SP+M05500-32 |
