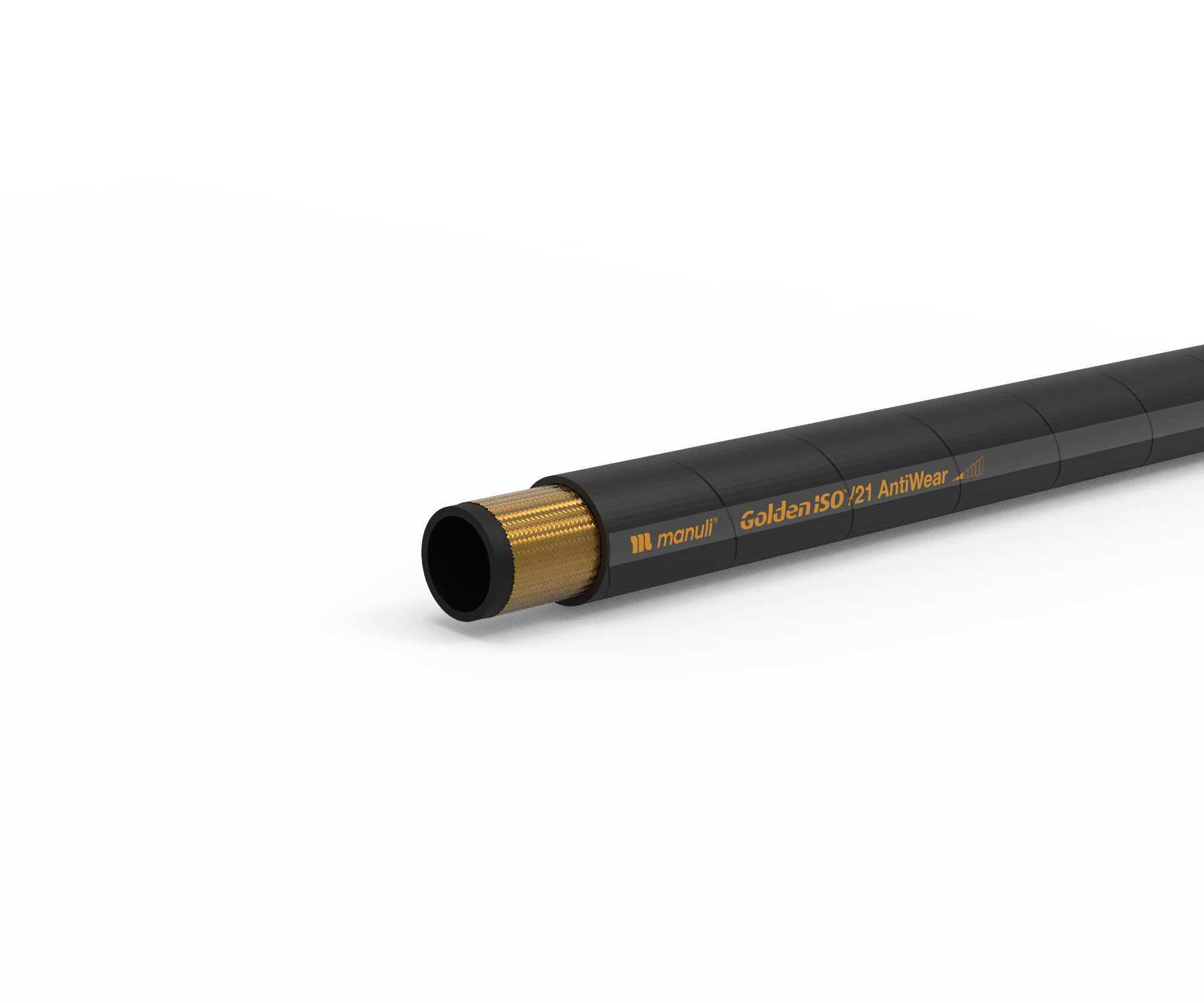

GOLDENISO/21 ANTIWEAR
OUTSTANDING ABRASION RESISTANCE
KEY FEATURES
• Extreme abrasion resistance
• Very low bend radius to suit restricted space installations
• High robust and compact hose structure compared to rated pressure
• Approved at 200,000 impulse cycles, at T=100°C (ISO 18752 grade A)
• High environmental agents resistance
• Vacuum resistance accordingly to SAE 100R4 requirements
APPLICATIONS & FLUIDS
- Medium and high pressure hydraulic lines with installation constraints, pilot lines, return, drain and suction lines
- Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
100 °C, 212 °F
TUBE
Synthetic rubber
REINFORCEMENT
One wire braid (DN 5-12). Two wire braid (DN 16-25)
COVER
S.H.A.R.C.
Synthetic rubber with very high abrasion, ozone and weather resistance
APPLICABLE SPECS
ISO 18752 grade A; SAE J517 Type 100 R17; ISO 11237-R17
TYPE APPOVALS
CU-TR; MSHA
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01173005* | 5 | – 3 | 3/16″ | 9.1 | 0.35 | 11.1 | 0.43 | 210 | 3,040 | 840 | 12,183 | 45.0 | 1.77 | 170 | 0.11 | MF + M03300-03 | OPF-03 |
| H01173006* | 6 | – 4 | 1/4″ | 10.2 | 0.4 | 12.0 | 0.47 | 210 | 3,040 | 840 | 12,183 | 50.0 | 1.96 | 180 | 0.12 | MF + M03300-04 | OPF-04 |
| H01173008* | 8 | – 5 | 5/16″ | 11.5 | 0.45 | 13.6 | 0.53 | 210 | 3,040 | 840 | 12,183 | 55.0 | 2.16 | 210 | 0.14 | MF + M03300-05 | OPF-05 |
| H01173010* | 10 | – 6 | 3/8″ | 14.4 | 0.56 | 16.2 | 0.63 | 210 | 3,040 | 840 | 12,183 | 65.0 | 2.55 | 300 | 0.2 | MF + M03300-06 | OPF-06 |
| H01173012* | 12 | – 8 | 1/2″ | 17.9 | 0.7 | 19.7 | 0.77 | 210 | 3,040 | 840 | 12,183 | 90.0 | 3.54 | 415 | 0.28 | MF + M03300-08 | OPF-08 |
| H01173016* | 16 | – 10 | 5/8″ | 22.2 | 0.87 | 24.0 | 0.94 | 210 | 3,040 | 840 | 12,183 | 100.0 | 3.93 | 620 | 0.42 | MF + M03400-10 | OPF-10 |
| H01173019* | 19 | – 12 | 3/4″ | 25.6 | 1.0 | 27.7 | 1.09 | 210 | 3,040 | 840 | 12,183 | 120.0 | 4.72 | 780 | 0.52 | MF + M03400-12 | OPF-12 |
| H01173025* | 25 | – 16 | 1″ | 33.0 | 1.29 | 35.2 | 1.38 | 210 | 3,040 | 840 | 12,183 | 150.0 | 5.9 | 1,120 | 0.75 | MF + M03400-16 | OPF-16 |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
