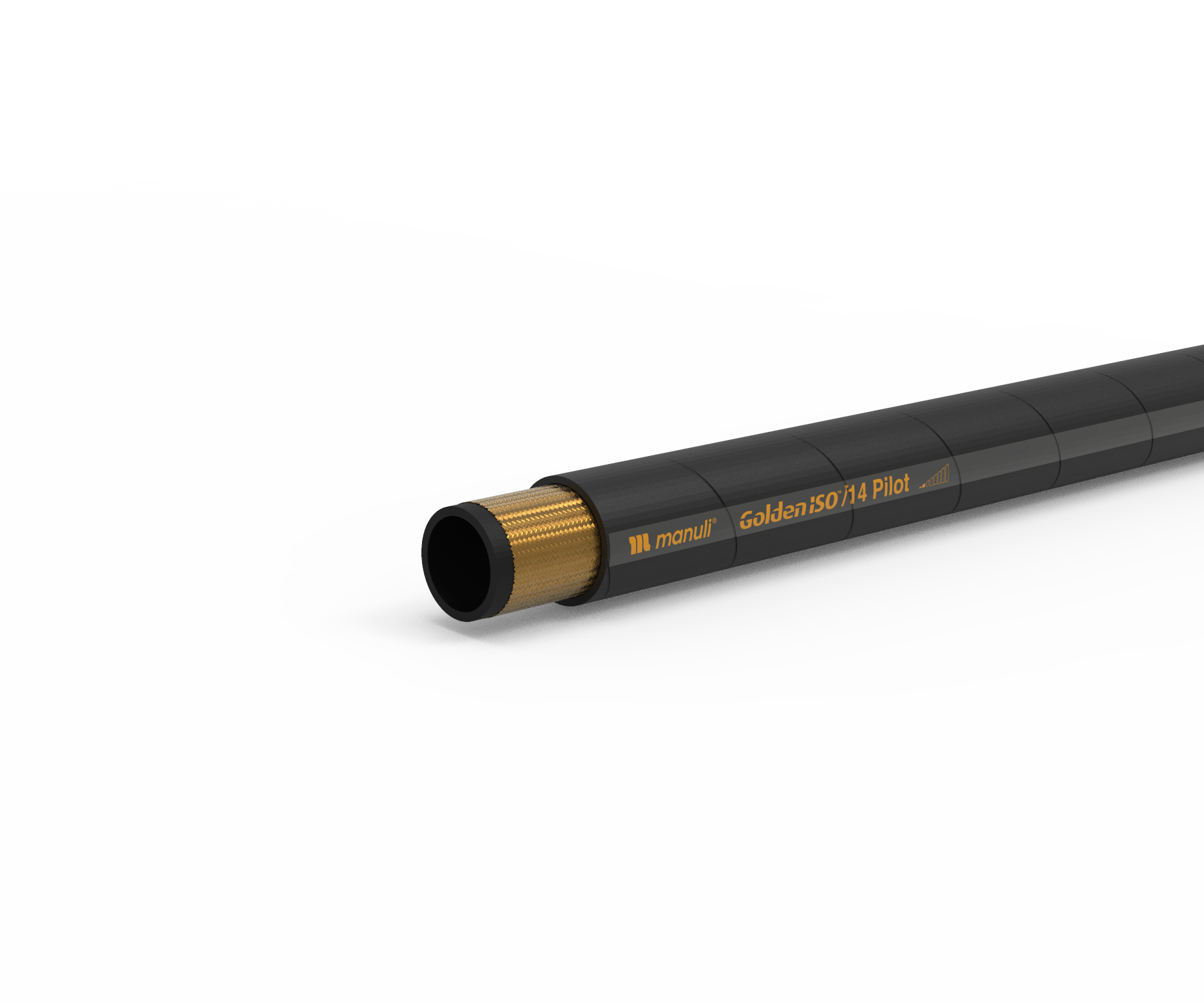

GOLDENISO/14 PILOT
COMPACTNESS AND FLEXIBILITY
KEY FEATURES
• Compact dimensions
• Very low bend radius, suitable for difficult installations
• High flexibility
• Flame retardant MSHA approved cover
• MiniFit special dedicated fittings, compact dimensions, designed for small bore 1WB hose
APPLICATIONS & FLUIDS
- Hydraulics: low pressure lines, pilot lines, auxiliary hydraulic systems
- Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-46 °C, -50 °F
121 °C, 250 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
One high tensile steel wire braid
COVER
STRONG – TYPE “SC”
Synthetic rubber with high abrasion, ozone, weather and heat resistance and an extended operational temperature range
APPLICABLE SPECS
ISO 18752 Type C
TYPE APPOVALS
CU-TR; MSHA
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H01172005* | 5 | -3 | 3/16″ | 8.7 | 0.34 | 10.5 | 0.41 | 140 | 2,030 | 560 | 8,122 | 20.0 | 0.78 | 144 | 0.1 | MN + M02400-03 | MF + M03300-03 |
| H01172006* | 6 | -4 | 1/4″ | 9.9 | 0.38 | 11.5 | 0.45 | 140 | 2,030 | 560 | 8,122 | 25.0 | 0.98 | 160 | 0.11 | MN + M02400-04 | MF + M03300-04 |
| H01172008* | 8 | -5 | 5/16″ | 11.5 | 0.45 | 13.1 | 0.51 | 140 | 2,030 | 560 | 8,122 | 30.0 | 1.18 | 183 | 0.12 | MN + M02400-05 | MF + M03300-05 |
| H01172010* | 10 | -6 | 3/8″ | 13.2 | 0.51 | 14.8 | 0.58 | 140 | 2,030 | 560 | 8,122 | 40.0 | 1.57 | 220 | 0.15 | MN + M02400-06 | MF + M03300-06 |
| H01172012* | 12 | -8 | 1/2″ | 16.2 | 0.63 | 18.0 | 0.7 | 140 | 2,030 | 560 | 8,122 | 50.0 | 1.96 | 277 | 0.19 | MN + M02400-08 | MF + M03300-08 |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
