GOLDENCRIMP 420 EVO

EVO Crimping Machines

YouTube Video

GOLDENCRIMP 420 EVO

ASSEMBLING FOR FIELD REPAIR
BENCHTOP CRIMP MACHINE

KEY FEATURES
• High crimping force of 420 tonnes
• Robust design for transport and operation in harsh environments
• Protected cylinders for trouble-free operation in high dust environments
• Large opening suitable for large bore hoses
• Easy maintenance due to foam pad dust collector
• Model shown equipped with SCS control panel

CAPACITY*
6ws: 3” max.
Industrial: 4” max.

CRIMP RANGE
4 – 130 mm (0.157 – 5.118”)

CRIMP FORCE
420 t

OPENING WITH DIES
+48 mm (+1.9 inch)

COMPLETE OPENING
178 mm (7.0 inch)

MASTER DIE LENGTH
120 mm (4.724 inch)

STANDARD DIES
14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 57, 63, 66, 70, 73, 76

NOISE LEVEL
<70 dB A

MOTOR
5.5 kW

VOLTAGES
220/240 V, 3Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
208/240 V, 3Ph, 60 Hz
380/415 V, 3Ph, 60 Hz

DIMENSIONS
765 x 500 x 800 mm
30 x 20 x 32“)

PACKAGING
745 x 1150 x 945 mm
(29 x 45 x 37”)

NET WEIGHT
395 kg (871 lb)

*Indicative capacities depending on hose and fitting type

SC SCE SCS

Available on request.

Die Storage Panel MH-Standard-Optional-Items-CME-Electrical-Footswitch
MAINTENANCE KIT DIE STORAGE PANEL DIE STORAGE TABLE DIE STORAGE TABLE EVO ELECTRICAL FOOTSWITCH
ALUMINIUM QUICK CHANGE GUN DIGITAL CALIPHER DIE SETS FOR BRAKE & AIR CONDITIONING HOSES MARKING DIES DIE STORAGE PANEL

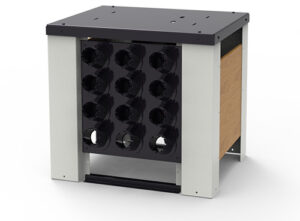

Die-Storage-Table
MECHANICAL BENCHTOP DIE STORAGE TABLE EVO
DESCRIPTION N° CRIMP RANGE
DIE SET N. 4 – LENGTH 56 MM 4 04-05
DIE SET N. 6 – LENGTH 56 MM 6 06-07
DIE SET N. 7 – LENGTH 56 MM 7 07-08
DIE SET N. 8 – LENGTH 56 MM 8 08-09
DIE SET N. 10 – LENGTH 56 MM 10 10-12
DIE SET N. 12 – LENGTH 56 MM 12 12-15
DIE SET N. 14 – LENGTH 56 MM 14 14-15
DIE SET N. 15 – LENGTH 56 MM 15 15-17
DIE SET N. 16 – LENGTH 56 MM 16 16-18
DIE SET N. 17 – LENGTH 56 MM 17 17-18
DIE SET N. 18 – LENGTH 56 MM 18 18-21
DIE SET N. 20 – LENGTH 56 MM 20 20-21
DIE SET N. 21 – LENGTH 56 MM 21 21-24
DIE SET N. 22 – LENGTH 56 MM 22 22-23
DIE SET N. 23 – LENGTH 56 MM 23 23-24
DIE SET N. 24 – LENGTH 70 MM 24 24-27
DIE SET N. 27 – LENGTH 90 MM 27 27-30
DIE SET N. 30 – LENGTH 90 MM 30 30-33
DIE SET N. 33 – LENGTH 90 MM 33 33-36
DIE SET N. 36 – LENGTH 90 MM 36 36-39
DIE SET N. 39 – LENGTH 90 MM 39 39-42
DIE SET N. 42 – LENGTH 90 MM 42 42-45
DIE SET N. 45 – LENGTH 100 MM 45 45-48
DIE SET N. 48 – LENGTH 100 MM 48 48-51
DIE SET N. 51 – LENGTH 110 MM 51 51-57
DIE SET N. 54 – LENGTH 110 MM 54 54-57
DIE SET N. 57 – LENGTH 110 MM 57 57-62
DIE SET N. 60 – LENGTH 110 MM 60 60-62
DIE SET N. 62 – LENGTH 125 MM 62 60-62
DIE SET N. 62* – LENGTH 125 MM 62* 62-66
DIE SET N. 63 – LENGTH 56 MM 63 63-66
DIE SET N. 66 – LENGTH 110 MM 66 66-70
DIE SET N. 66* – LENGTH 125 MM 66* 66-70
DIE SET N. 70 – LENGTH 100 MM 70 70-72
DIE SET N. 70* – LENGTH 125 MM 70* 70-72
DIE SET N. 73 – LENGTH 125 MM 73 73-76
DIE SET N. 75 – LENGTH 125 MM 75 75-76
DIE SET N. 76 – LENGTH 125 MM 76 76-86
DIE SET N. 76* – LENGTH 135 MM 76* 76-86
DIE SET N. 80 – LENGTH 125 MM 80 80-82
DIE SET N. 82 – LENGTH 135 MM 82 82-90
DIE SET N. 86 – LENGTH 125 MM 86 86-90
DIE SET N. 90 – LENGTH 125 MM 90 90-95
DIE SET N. 95 – LENGTH 125 MM 95 95-105
DIE SET N. 99 – LENGTH 125 MM 99 99-109
DIE SET N. 112 – LENGTH 125 MM 112 112-117
DIE SET N. 117 – LENGTH 125 MM 117 117-122
DIE SET N. 122 – LENGTH 125 MM 122 -122-127
KIT 21 DIE SETS GOLDENCRIMP420EVO (14 16 18 20 22 24 27 30 33 36 39 42 45 48 51 57 63 66 70 73 76) – –

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
