GOLDENBLAST

SAFE WATERBLAST TECHNOLOGY

KEY FEATURES

  • Basic hose line for scale removing applications
  • Compactness, lightness and flexibility
  • Safety factor 2,5:1 (accepted world standard as specified by RMA-USA, BFPA-UK, DIN-Germany, ISO 7751)
  • High abrasion resistant cover

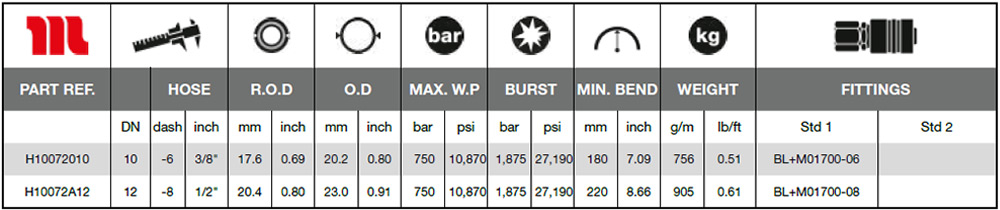

TECHNICAL DATA
# # # # # # # # #
PART REF. HOSE SIZE R.O.D O.D MAX. W.P BURST MIN. BEND WEIGHT FITTINGS
DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft Std 1 Std 2
H10072010 10 -6 3/8″ 17.6 0.69 20.2 0.80 750 10,870 1,875 27,190 180 7.09 756 0.51 BL+M01700-06
H10072A12 12 -8 1/2″ 20.4 0.80 23.0 0.91 750 10,870 1,875 27,190 220 8.66 905 0.61 BL+M01700-08

KEY FEATURES

• Basic hose line for scale removing applications
• Compactness, lightness and flexibility
• Safety factor 2,5:1 (accepted world standard as specified by RMA-USA, BFPA-UK, DIN-Germany, ISO 7751)
• High abrasion resistant cover

APPLICATIONS & FLUIDS

• Waterblasting, scale removing applications using extreme high working pressures:
• Building and industrial sectors (roadworks, removal of concrete from reinforced concrete structures safeguarding metal components);
• Scale removal ships hulls in shipyard;
• Dust elimination
• Water, water soap, emulsions

CONTINUOUS SERVICE TEMPERATURE RANGE

-10 °C, 15 °F
70 °C, 158 °F

TUBE

Water resistant synthetic rubber

REINFORCEMENT

Four high tensile steel spirals

COVER

Synthetic rubber with high temperature, ozone and abrasion resistance

APPLICABLE SPECS

Manuli® Design, Australian Std. AS/NZS 4233.2

TYPE APPROVALS

CU-TR; MSHA

APPLICATIONS & FLUIDS

  • Waterblasting, scale removing applications using extreme high working pressures:
  • Building and industrial sectors (roadworks, removal of concrete from reinforced concrete structures safeguarding metal components);
  • Scale removal ships hulls in shipyard;
  • Dust elimination
  • Water, water soap, emulsions

CONTINUOUS SERVICE TEMPERATURE RANGE
-10 °C, 15 °F
70 °C, 158 °F

TUBE
Water resistant synthetic rubber

REINFORCEMENT
Four high tensile steel spirals

COVER
Synthetic rubber with high temperature, ozone and abrasion resistance

APPLICABLE SPECS
Manuli® Design, Australian Std. AS/NZS 4233.2

TYPE APPROVALS
CU-TR; MSHA

MH-Technical-Specifications---Goldenblast
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. The only official source of technical crimping parameters regarding our products is our Crimp Digital Tools. Printed copies are uncontrolled therefore, please be sure to download the latest version of our Manuli Crimp App or visit our Ryco Web Tool.
