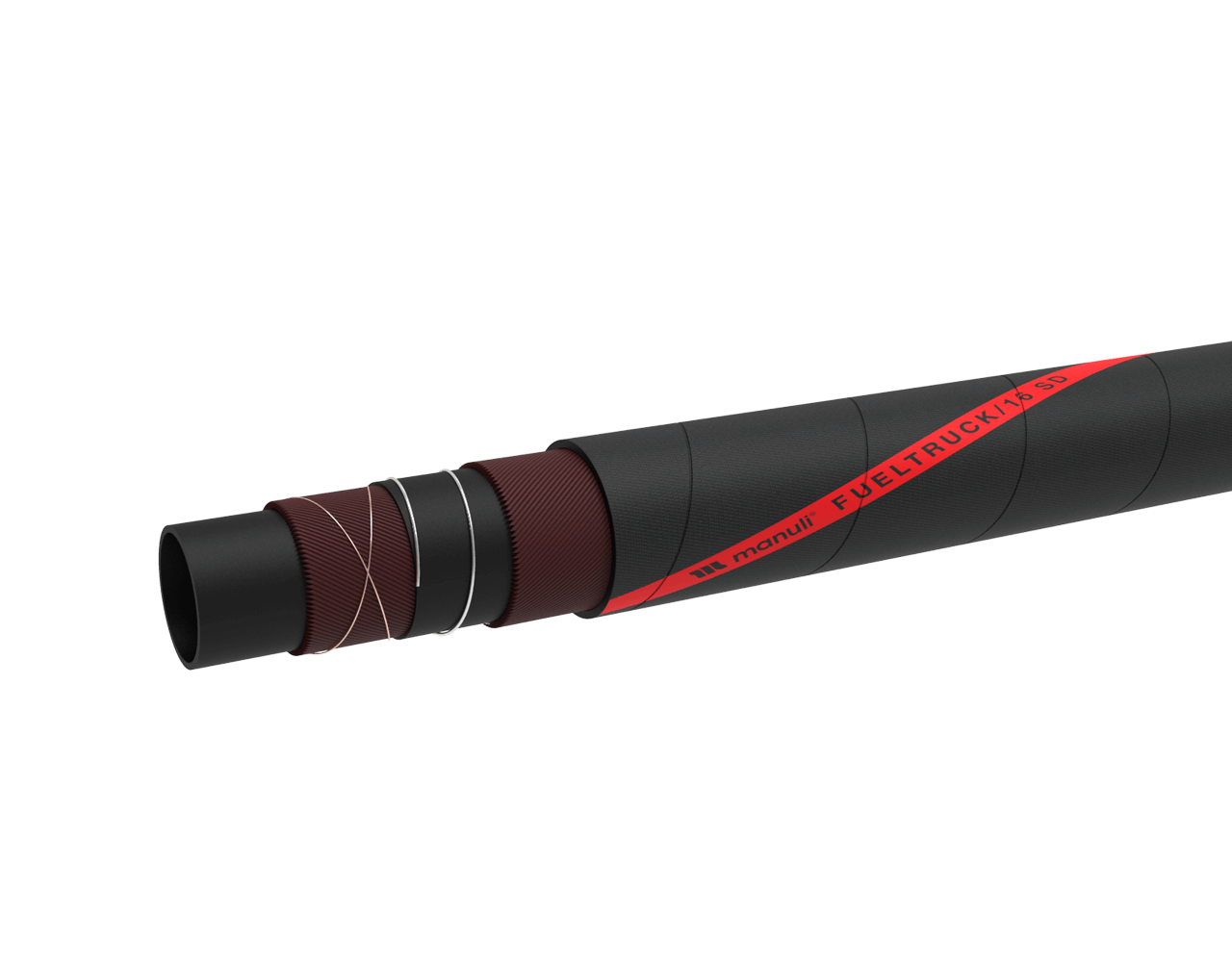

FUELTRUCK/16 SD

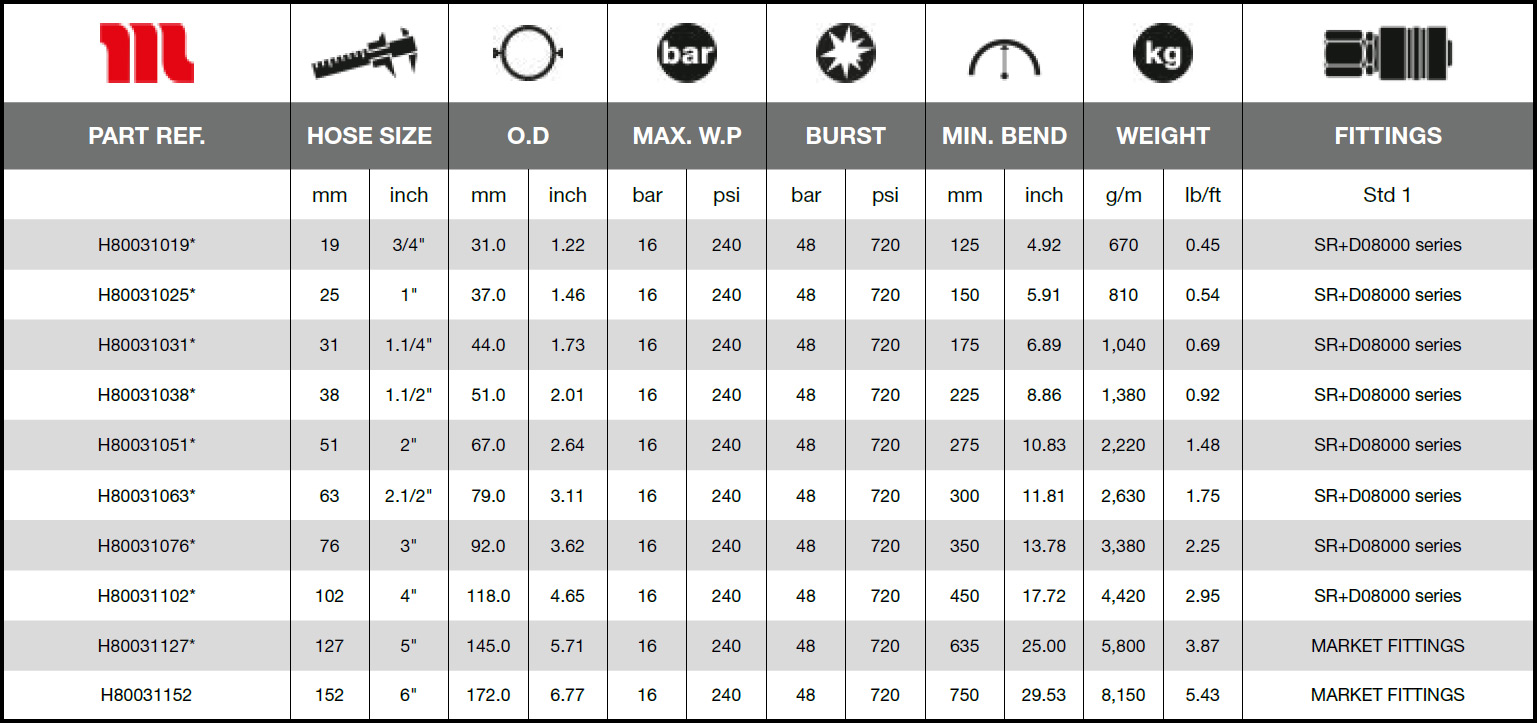

Technical Specifications:

Suction and delivery hose for fuels, oils and petroleum and its derivatives with aromatic content up to 50%. Use for truck systems, EN 1761 Type SD.

WORKING PRESSURE: 16 bar / 240 psi.

TUBE: Black anti-static NBR rubber.

REINFORCEMENT: High tensile synthetic cord with steel helix body wire and two crossing copper wires for grounding.

COVER: Black, synthetic CR rubber; fireproof and anti-static, chemical, ozone and weathering resistant. Mylar layline for positive, permanent identification.

FEATURES: Hardwall suction and delivery structure; Compact, lightweight and flexible. Highly robust hose structure; Long lasting in severe applications.

Long length assemblies available – Max. length: 61m (DN 19 – DN 102); 30.5m (DN 127 – DN 152)

APPLICABLE SPECS: EN 1761 Type SD

TEMPERATURE RANGE: From -30°C to +70°C (-22°F to +158°F).
