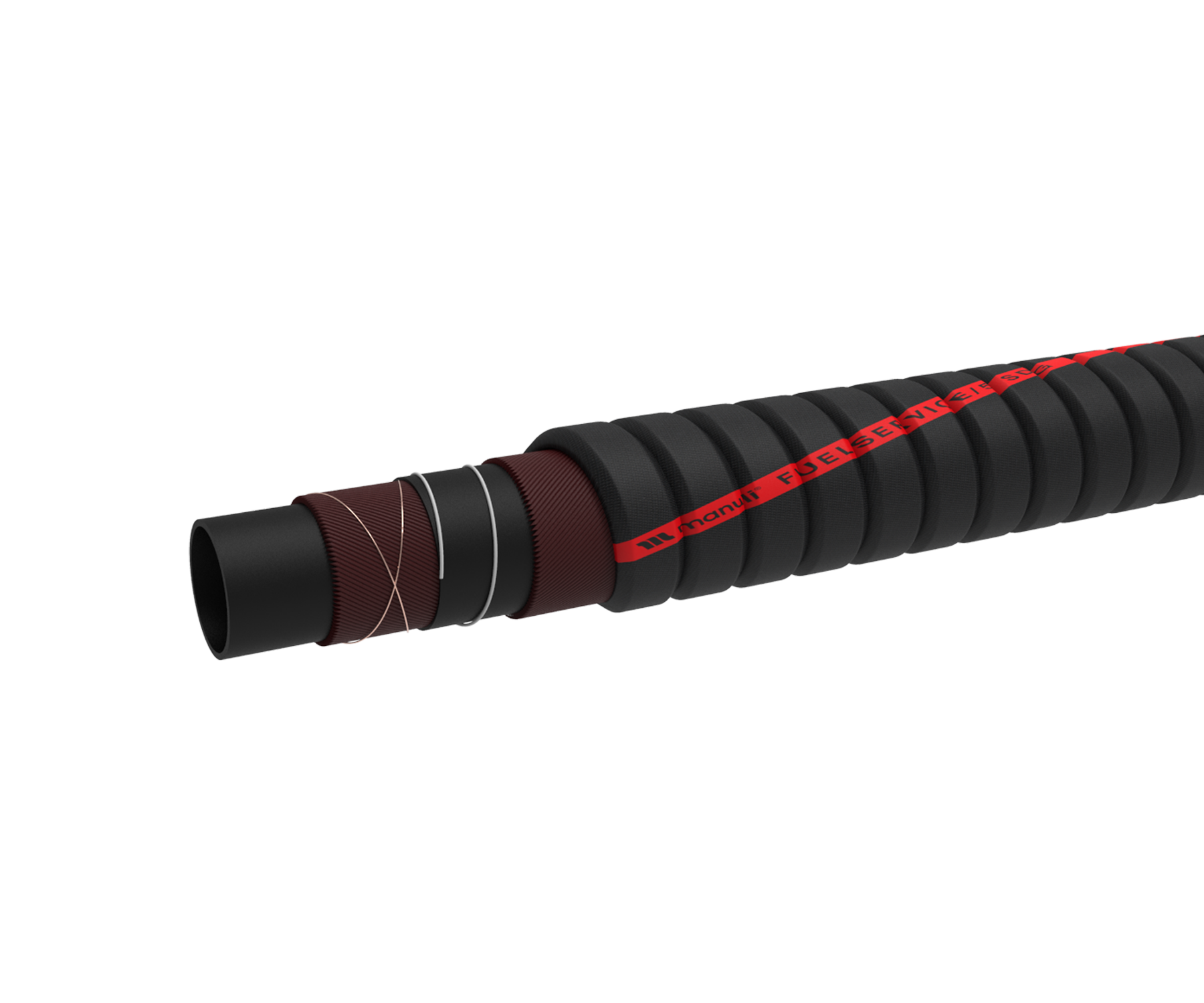

FUELSERVICE/5 SDC

FUEL SUCTION & DELIVERY HOSE WITH HIGH FLEXIBILITY

KEY FEATURES
• Hardwall suction and delivery structure
• Normal corrugated cover offers lowest bend radius in category
• Compact, lightweight and extremely flexible
• Robust hose structure for longer life in severe applications
• Long length assemblies available – Max length: 40m

APPLICATIONS & FLUIDS
• Fuels, oils, petroleum & its derivatives with aromatic content up to 50%

CONTINUOUS SERVICE TEMPERATURE RANGE
-30 °C, -22 °F
100 °C, 212 °F

TUBE
Black NBR rubber

REINFORCEMENT
High tensile synthetic cord with steel helix body wire and 2 crossing copper wires for grounding

COVER
Black synthetic, normal corrugated CR rubber, anti-static (R<106 Ohm/m), oil, fuel, abrasion and weathering resistant

APPLICABLE SPECS
Manuli design, safety factor 3:1

STANDARD PACKAGING
Coil

TECHNICAL DATA

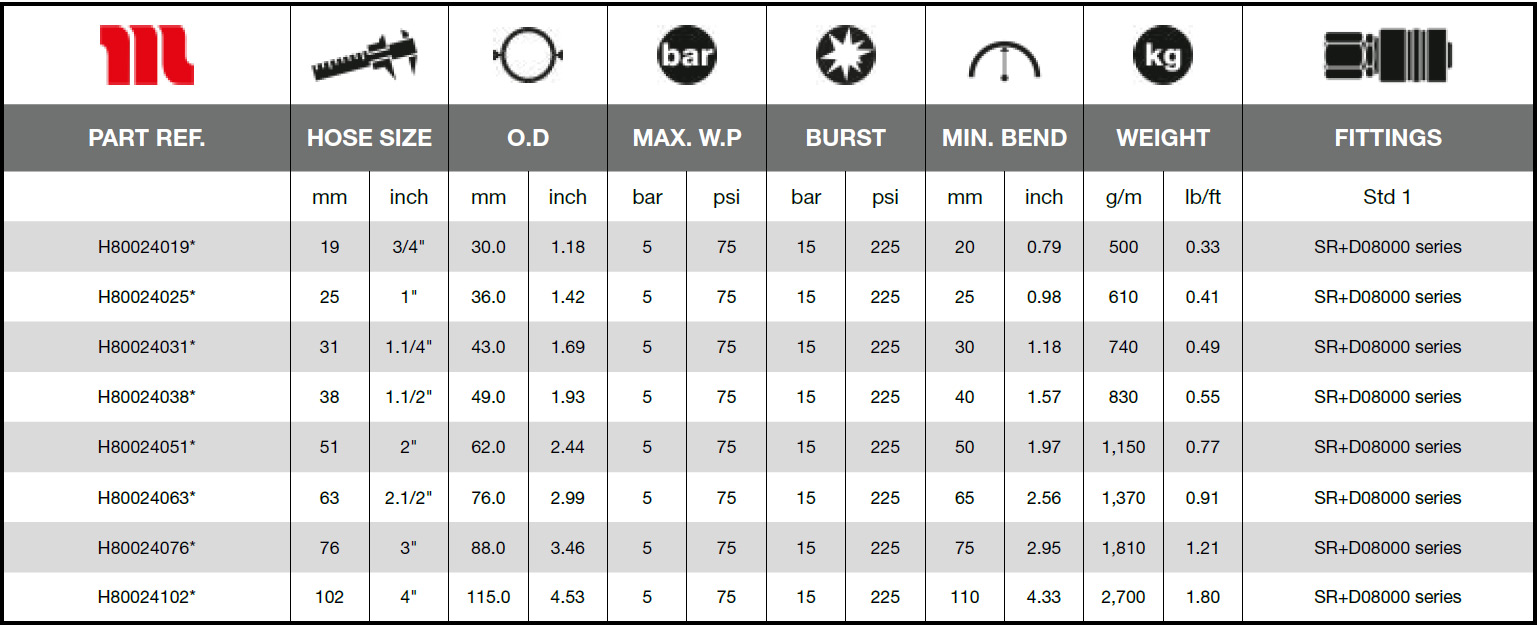

PART REF.	HOSE SIZE		O.D		MAX. W.P		BURST		MIN. BEND		WEIGHT		FITTINGS
	mm	inch	mm	inch	bar	psi	bar	psi	mm	inch	g/m	lb/ft	Std 1
H80024019*	19	3/4″	30.0	1.18	5	75	15	225	20	0.79	500	0.33	SR+D08000 series
H80024025*	25	1″	36.0	1.42	5	75	15	225	25	0.98	610	0.41	SR+D08000 series
H80024031*	31	1.1/4″	43.0	1.69	5	75	15	225	30	1.18	740	0.49	SR+D08000 series
H80024038*	38	1.1/2″	49.0	1.93	5	75	15	225	40	1.57	830	0.55	SR+D08000 series
H80024051*	51	2″	62.0	2.44	5	75	15	225	50	1.97	1,150	0.77	SR+D08000 series
H80024063*	63	2.1/2″	76.0	2.99	5	75	15	225	65	2.56	1,370	0.91	SR+D08000 series
H80024076*	76	3″	88.0	3.46	5	75	15	225	75	2.95	1,810	1.21	SR+D08000 series
H80024102*	102	4″	115.0	4.53	5	75	15	225	110	4.33	2,700	1.80	SR+D08000 series

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
