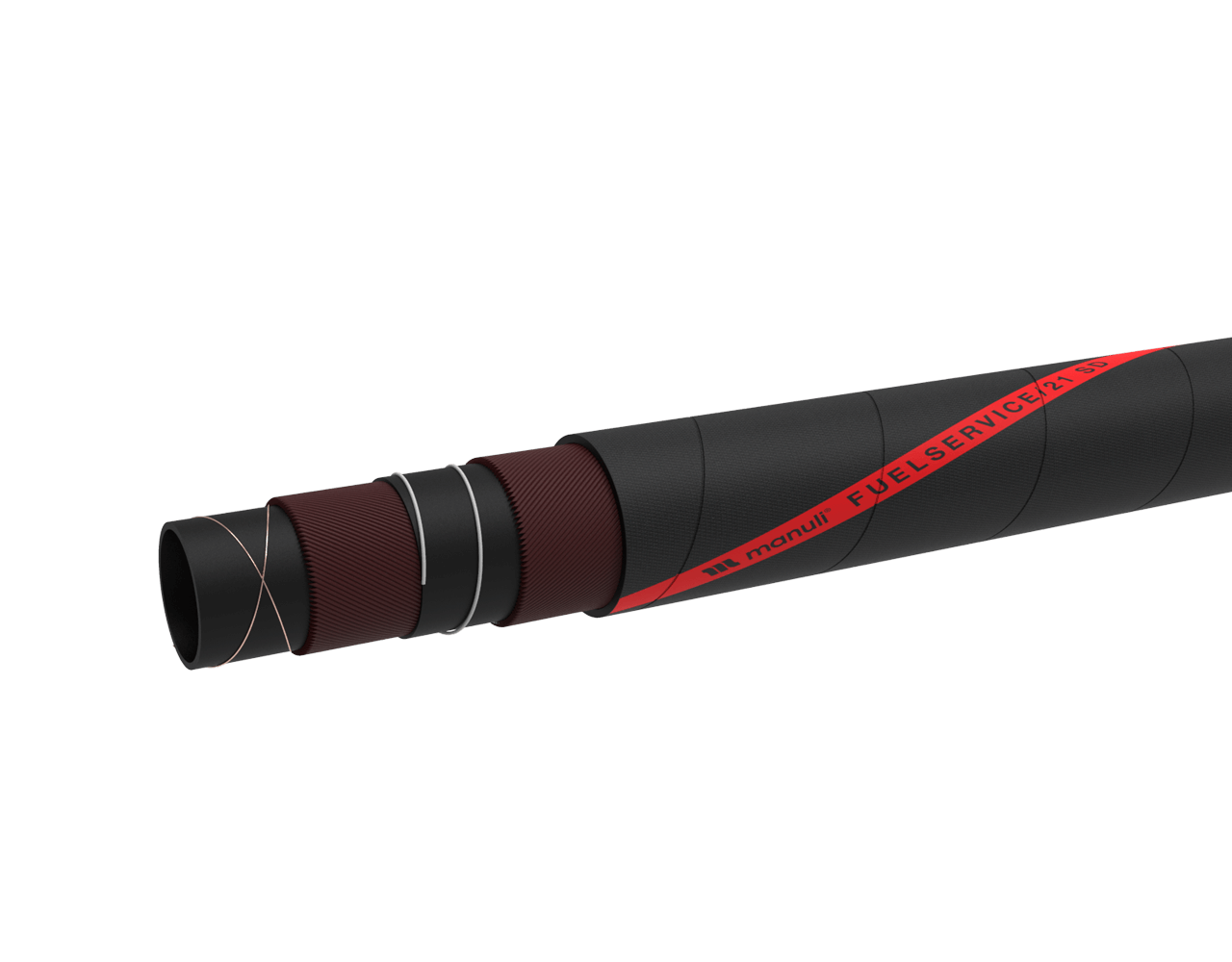

FUELSERVICE/21 SD

FUEL & OIL HOSE, HEAVY DUTY

KEY FEATURES
• Hardwall suction and delivery structure
• Compact, lightweight and flexible
• Robust hose structure for longer life in severe applications
• Long length assemblies available – Max length: 60m

APPLICATIONS & FLUIDS
• Fuels, oils & diesel with aromatic content up to 50%

CONTINUOUS SERVICE TEMPERATURE RANGE
-30 °C, -22 °F
90 °C, 194 °F

TUBE
NBR rubber, abrasion resistant, thick tube

REINFORCEMENT
High tensile synthetic cord and steel helix body wire, and 2 crossing copper wires for grounding

COVER
Black synthetic SBR rubber, long lasting, weathering and ozone resistant

APPLICABLE SPECS
Manuli design, safety factor 3:1

STANDARD PACKAGING
Coil

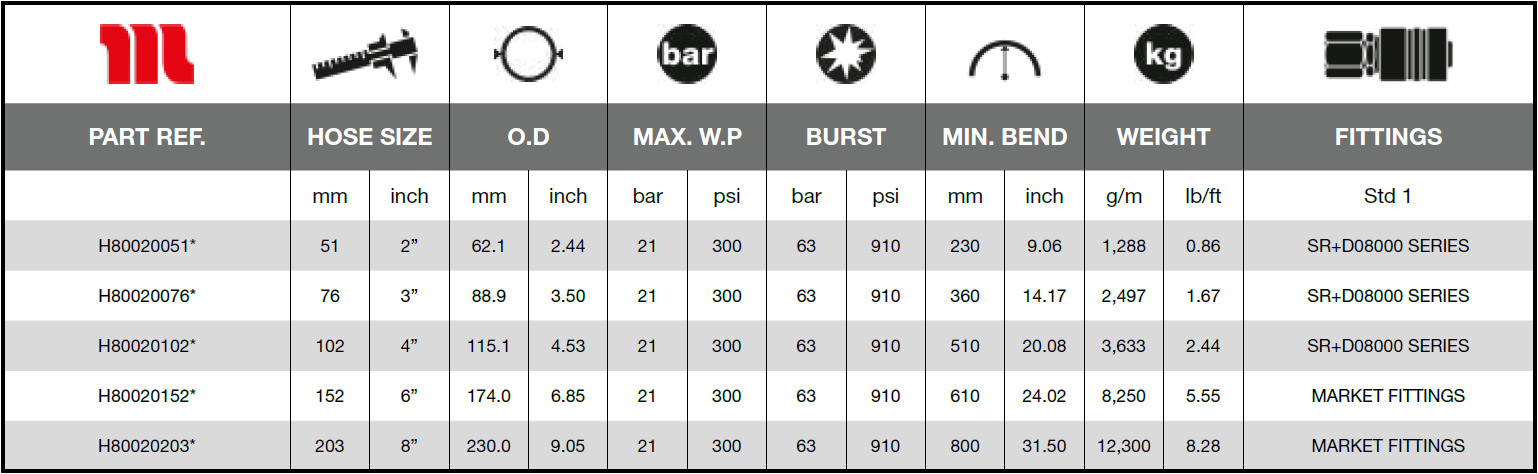

TECHNICAL DATA

PART REF.	HOSE SIZE		O.D		MAX. W.P		BURST		MIN. BEND		WEIGHT		FITTINGS
	mm	inch	mm	inch	bar	psi	bar	psi	mm	inch	g/m	lb/ft	Std 1
H80020051*	51	2”	62.1	2.44	21	300	63	910	230	9.06	1,288	0.86	SR+D08000 SERIES
H80020076*	76	3”	88.9	3.50	21	300	63	910	360	14.17	2,497	1.67	SR+D08000 SERIES
H80020102*	102	4”	115.1	4.53	21	300	63	910	510	20.08	3,633	2.44	SR+D08000 SERIES
H80020152*	152	6”	174.0	6.85	21	300	63	910	610	24.02	8,250	5.55	MARKET FITTINGS
H80020203*	203	8”	230.0	9.05	21	300	63	910	800	31.50	12,300	8.28	MARKET FITTINGS

DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
