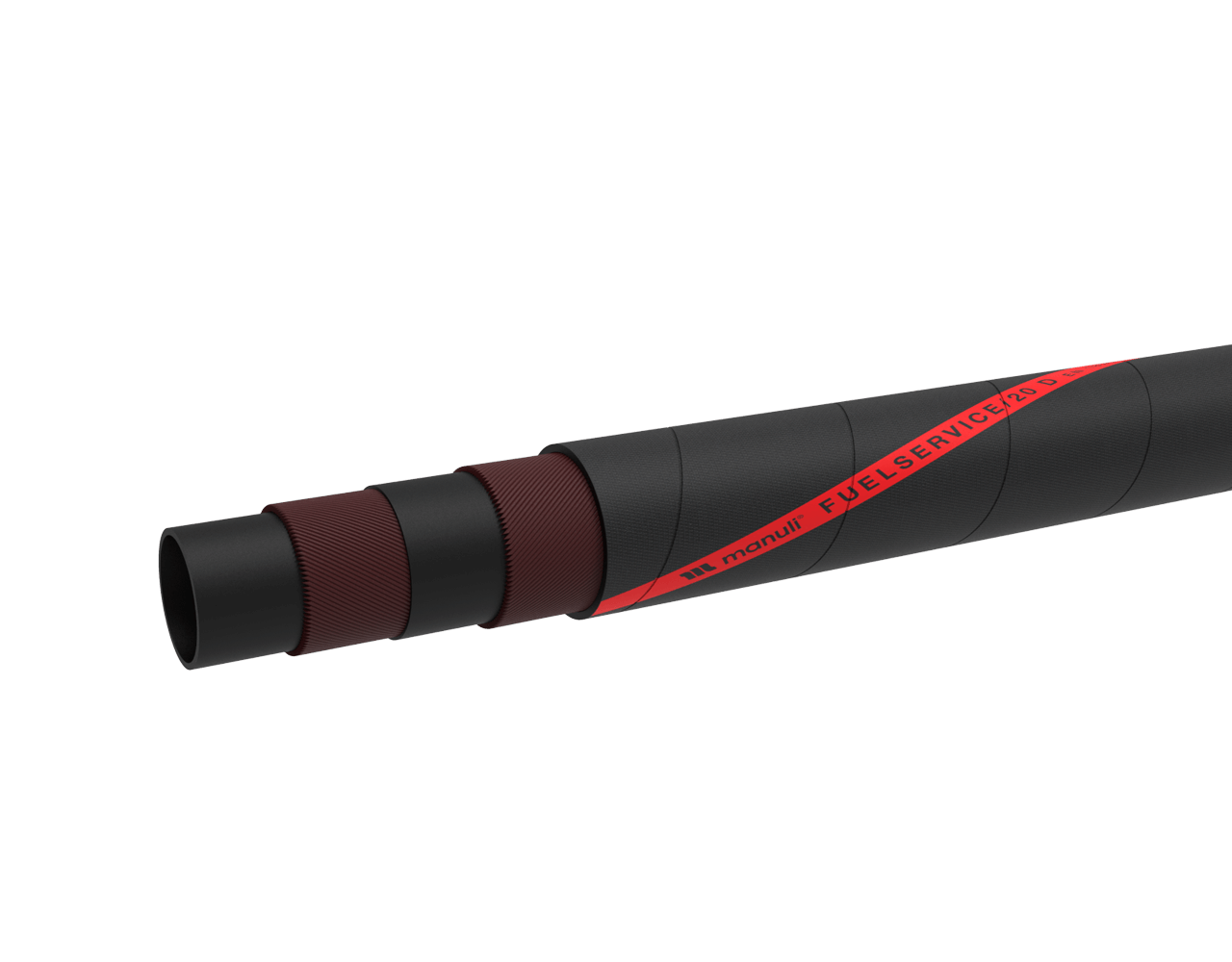

FUELSERVICE/20 D EN 1825-C

Technical Specifications:

Delivery hose for fuels, oils and petroleum and its derivatives with aromatic content up to 50%. Use for aircraft ground refuelling.

WORKING PRESSURE: 20 bar / 300 psi.

TUBE: Black NBR conductive rubber.

REINFORCEMENT: High tensile synthetic cord.

COVER: Black, synthetic CR rubber; fireproof and anti-static (R<106 Ohm/m), chemical, ozone and weathering resistant. Mylar layline for positive, permanent identification.

FEATURES: Hardwall delivery structure; Compact, lightweight and flexible. Highly robust hose structure; Long lasting in severe applications.

Long length assemblies available – Max. length: 61m

APPLICABLE SPECS: EN 1825 Type C / TRbF

TEMPERATURE RANGE: From -30°C to +70°C (-22°F to +158°F).

Description

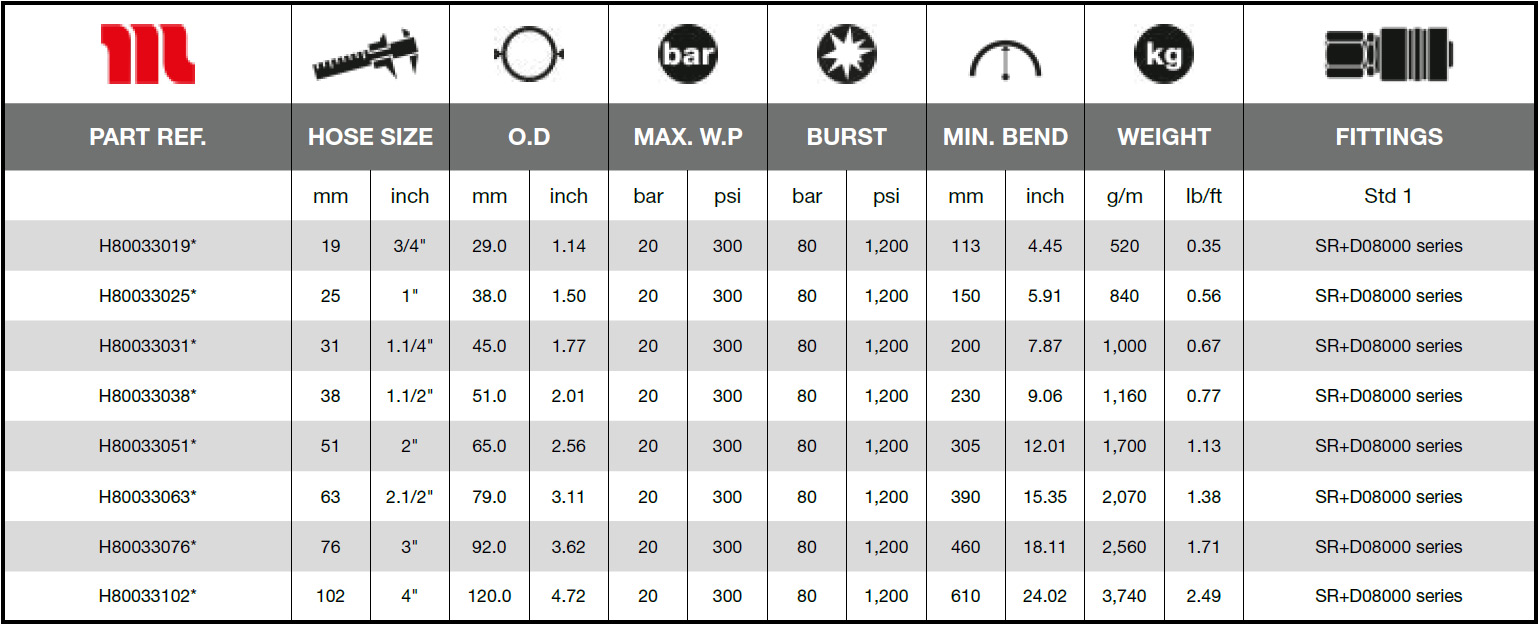

FUELSERVICE/20 D EN 1825-C MATCH COUPLING SERIES
PART NO HOSE SIZE TWO-PIECE
HOSE DN DASH SKIVE
H80033019 19 -12 SR+D08000 SERIES
H80033025 25 -16 SR+D08000 SERIES
H80033031 31 -20 SR+D08000 SERIES
H80033038 38 -24 SR+D08000 SERIES
H80033051 51 -32 SR+D08000 SERIES
H80033063 63 -40 SR+D08000 SERIES
H80033076 76 -48 SR+D08000 SERIES
H80033102 102 -64 SR+D08000 SERIES
