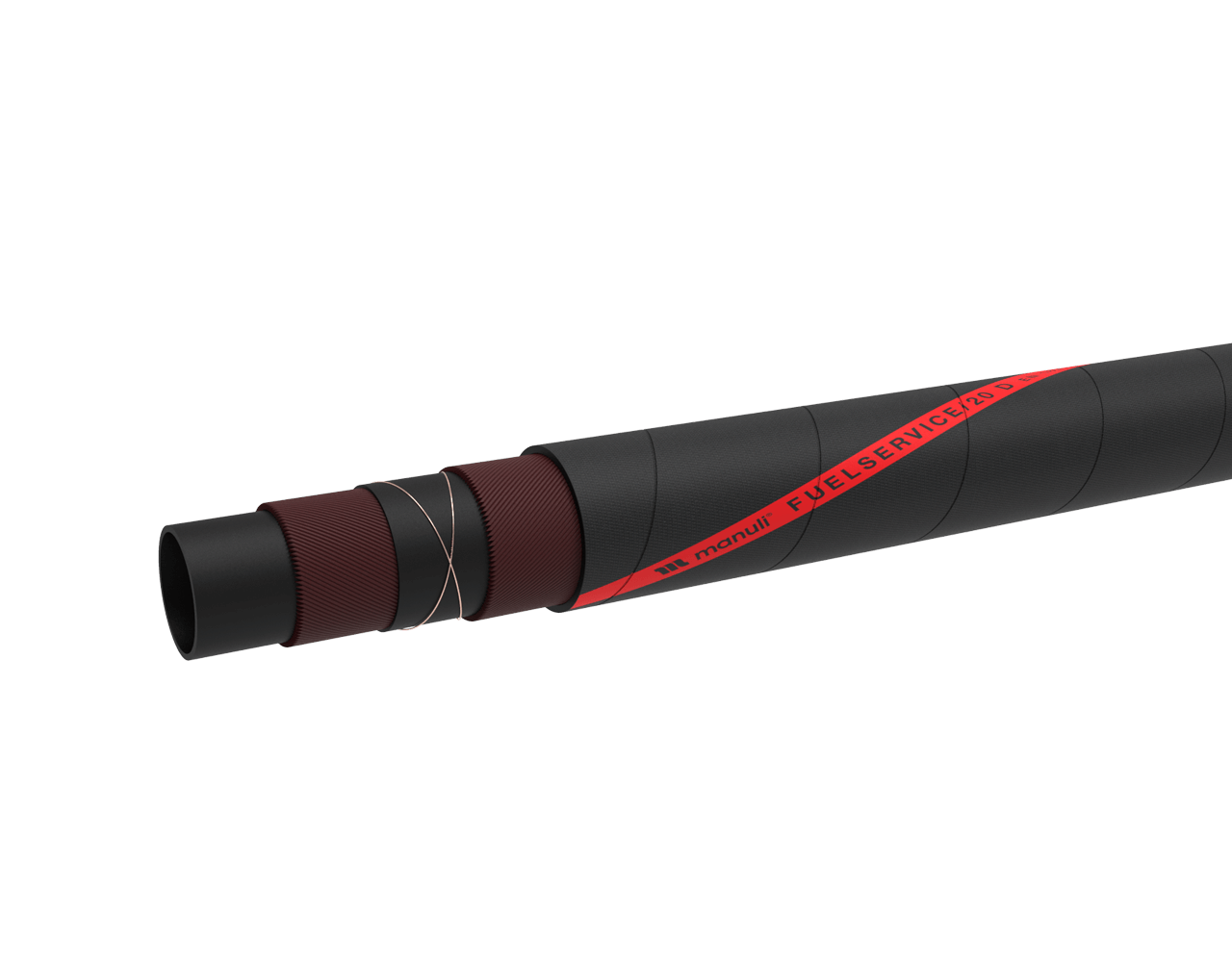

FUELSERVICE/20 D EN 1825-B

Technical Specifications:

Delivery hose for fuels, oils and petroleum and its derivatives with aromatic content up to 50%. Use for aircraft ground refuelling.

WORKING PRESSURE: 20 bar / 300 psi.

TUBE: Black NBR rubber.

REINFORCEMENT: High tensile synthetic cord and two crossing copper wires for grounding.

COVER: Black, synthetic CR rubber; fireproof and anti-static, chemical, ozone and weathering resistant. Mylar layline for positive, permanent identification.

FEATURES: Hardwall delivery structure; Compact, lightweight and flexible. Highly robust hose structure; Long lasting in severe applications.

Long length assemblies available – Max. length: 61m

APPLICABLE SPECS: EN 1825 Type B / TRbF

TEMPERATURE RANGE: From -30°C to +70°C (-22°F to +158°F).

Description

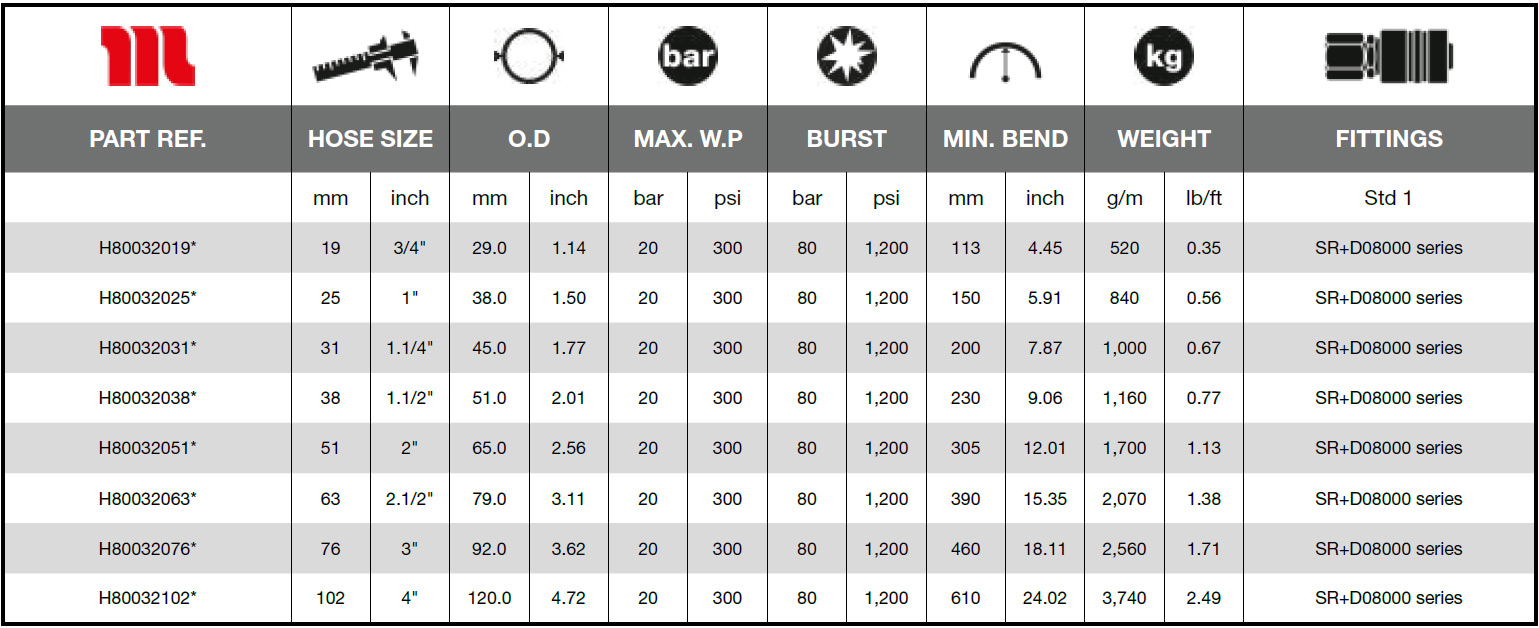

FUELSERVICE/20 D EN 1825-B MATCH COUPLING SERIES
PART NO HOSE SIZE TWO-PIECE
HOSE DN DASH SKIVE
H80032019 19 -12 SR+D08000 SERIES
H80032025 25 -16 SR+D08000 SERIES
H80032031 31 -20 SR+D08000 SERIES
H80032038 38 -24 SR+D08000 SERIES
H80032051 51 -32 SR+D08000 SERIES
H80032063 63 -40 SR+D08000 SERIES
H80032076 76 -48 SR+D08000 SERIES
H80032102 102 -64 SR+D08000 SERIES
