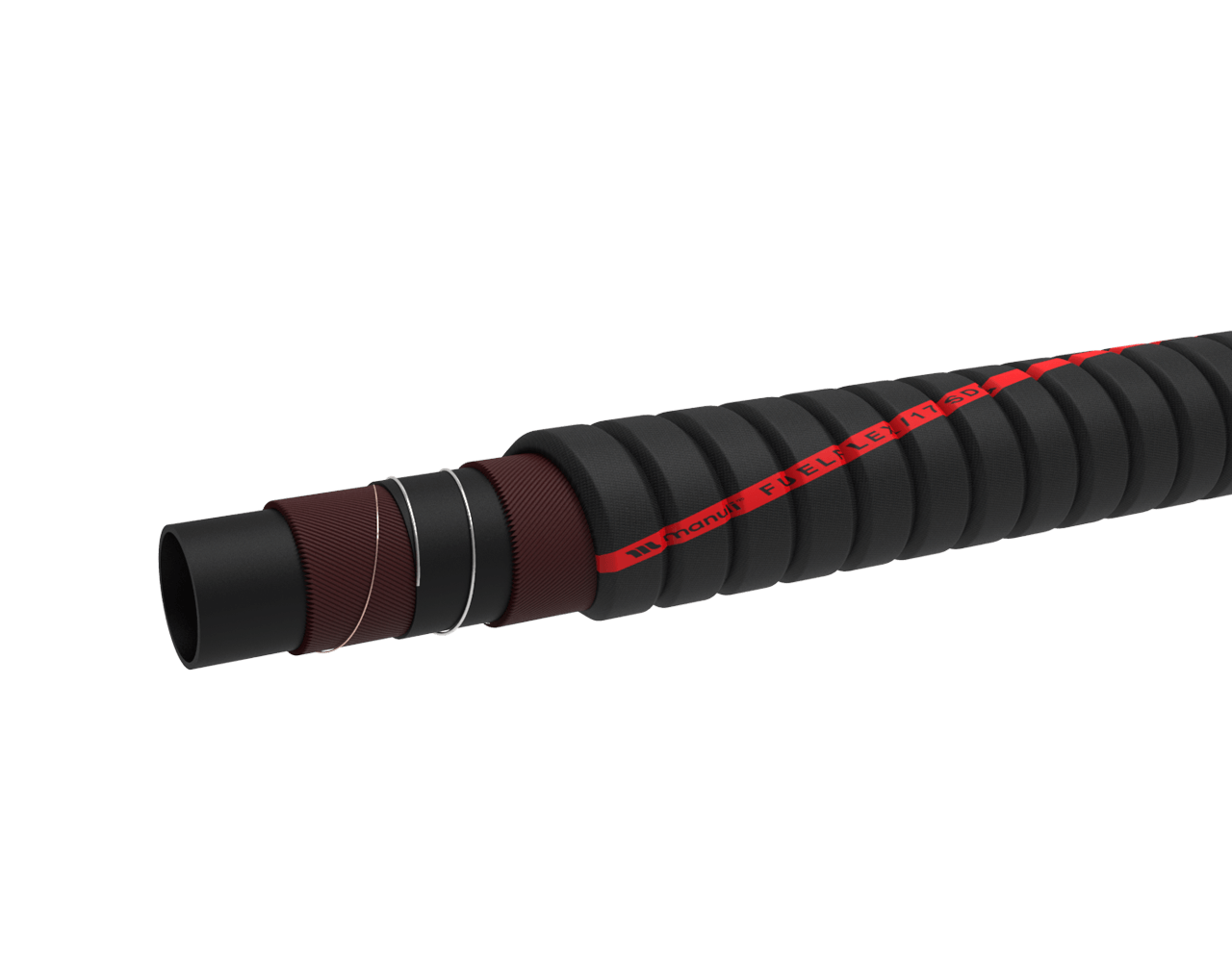

FUELFLEX/17 SDC

Technical Specifications:

Suction and delivery hose for fuels, oils and petroleum and its derivatives with aromatic content up to 60%.

WORKING PRESSURE: 17 bar / 255 psi.

TUBE: Black NBR rubber.

REINFORCEMENT: High tensile synthetic cord with steel helix body wire and two crossing copper wires for grounding.

COVER: Black, synthetic, convoluted CR rubber; anti-static (R<106 Ohm/m), oil, fuel, abrasion and weathering resistant. Mylar layline for positive, permanent identification.

FEATURES: Hardwall suction and delivery structure; Convoluted cover offers lowest bend radius in category; Compact, lightweight and extremely flexible. Outstanding abrasion resistance; Highly robust hose structure; Long lasting in severe applications.

Long length assemblies available – Max. length: 61m (DN 19 – DN 102); 30.5m (DN 152)

TEMPERATURE RANGE: From -30°C to +100°C (-22°F to +212°F).

Description

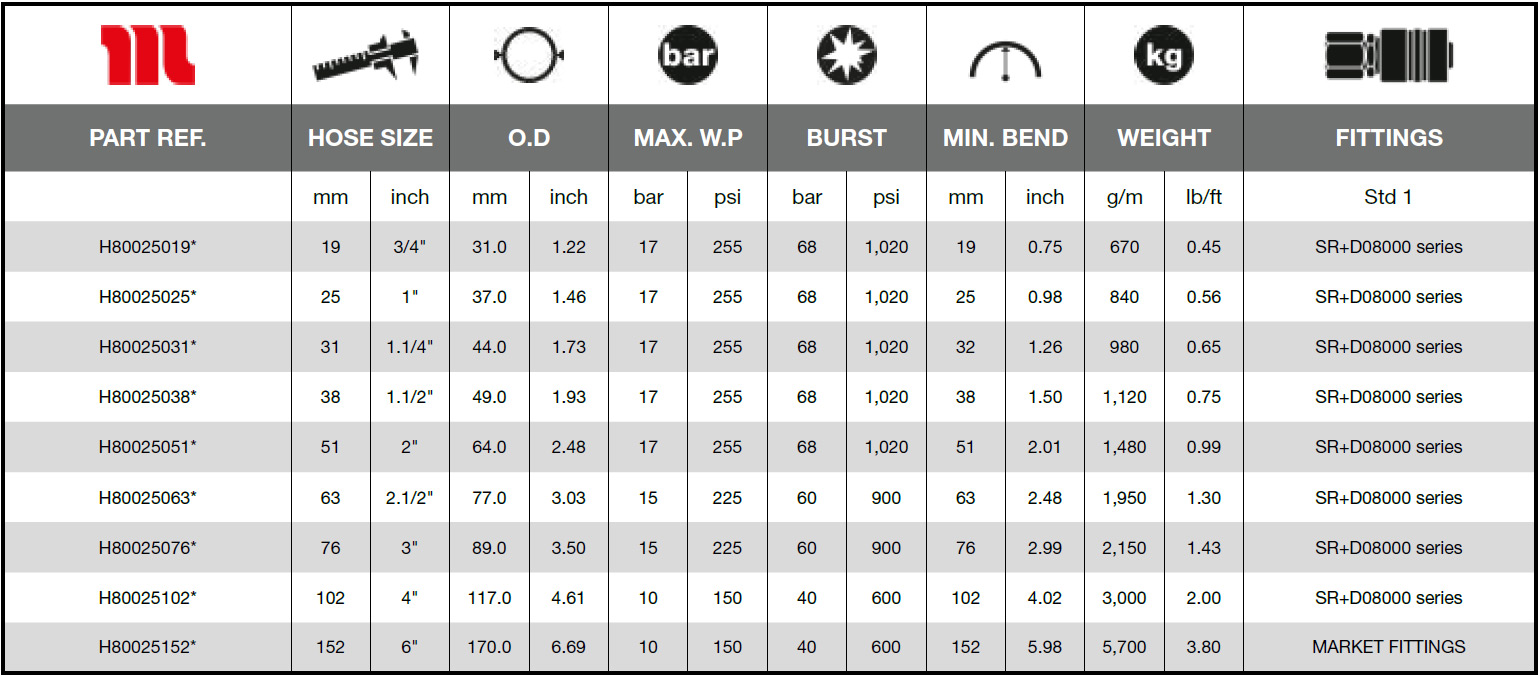

FUELFLEX/17 SDC MATCH COUPLING SERIES
PART NO HOSE SIZE TWO-PIECE
HOSE DN DASH SKIVE
H80025019 19 -12 SR+D08000 SERIES
H80025025 25 -16 SR+D08000 SERIES
H80025031 31 -20 SR+D08000 SERIES
H80025038 38 -24 SR+D08000 SERIES
H80025051 51 -32 SR+D08000 SERIES
H80025063 63 -40 SR+D08000 SERIES
H80025076 76 -48 SR+D08000 SERIES
H80025102 102 -64 SR+D08000 SERIES
H80025152 152 -96 MARKET FITTINGS
