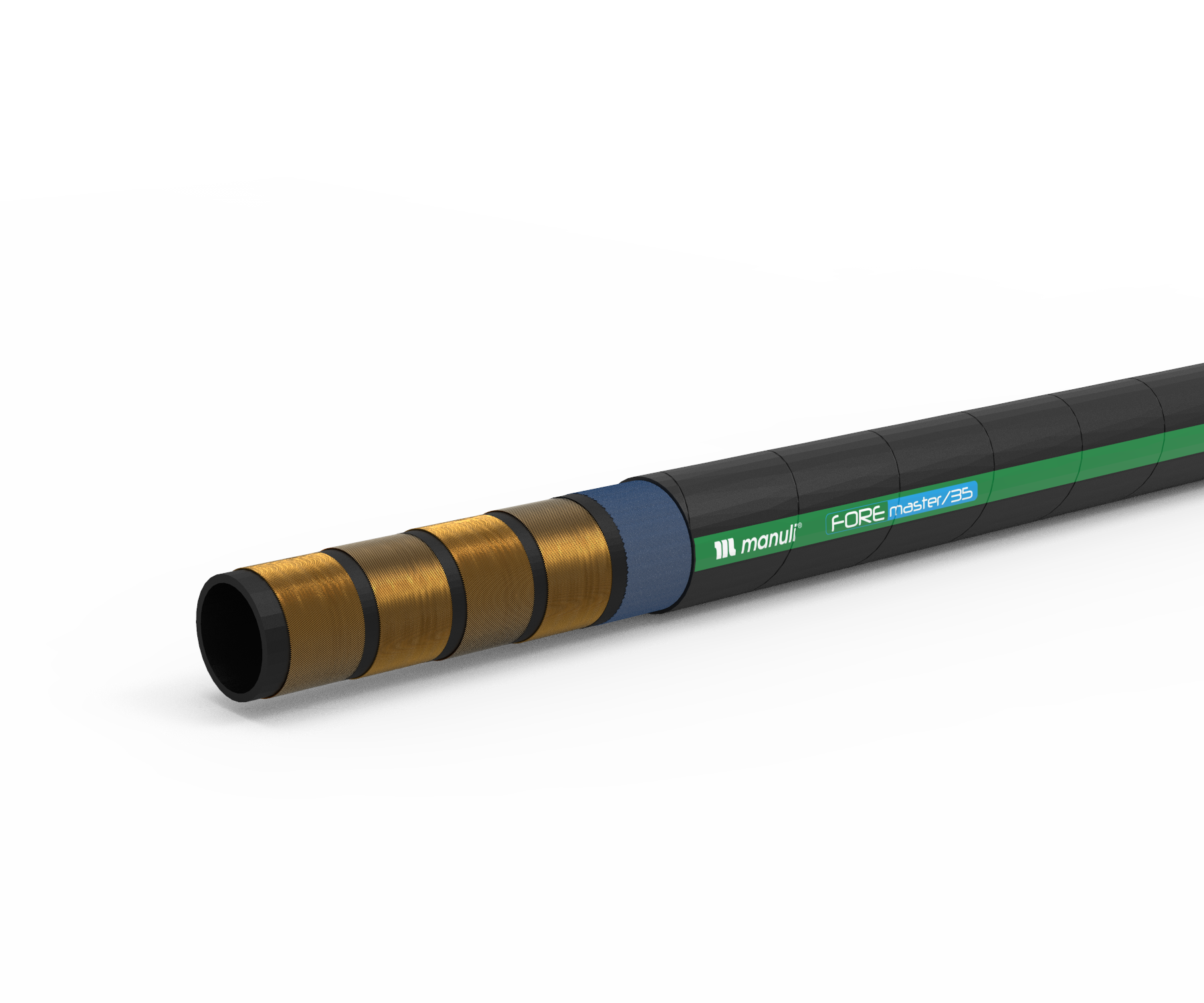

FOREMASTER/35
EXTREME SCRATCHING RESISTANCE
KEY FEATURES
• Extremely high abrasion resistance, long life before reinforcement scratching
• Special composite cover layer with textile reinforcement for maximum resistance in harsh environments
• Very low bend radius to suit restricted space installations
• Good flexibility across the whole temperature range
• Easy mounting in any installation
• Highly robust and compact hose structure compared to rated pressure
• High resistance to environmental agents
• High impulse resistance according to ISO 18752 requirements
APPLICATIONS & FLUIDS
- High pressure power lines for general hydraulics
- Designed for forestry machines, booms and harvester heads, harsh environments and severe abrasion
- Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-46 °C, -50 °F
121 °C, 250 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Four high tensile steel spirals
COVER
DN 10-12 – R.O.C.
Synthetic rubber with extreme abrasion and ozone resistance
DN 19 and larger – ARMOURED
Synthetic rubber composite cover with textile reinforcement, high abrasion and very high scratch resistance
APPLICABLE SPECS
Manuli® Design, ref. ISO 18752-C
TYPE APPOVALS
MSHA; CU-TR
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H10133010* | 10 | -6 | 3/8” | 15.5 | 0.61 | 17.1 | 0.67 | 350 | 5,070 | 1,400 | 20,300 | 65 | 2.56 | 440 | 0.30 | MF+M00120-06 | – |
| H10133012* | 12 | -8 | 1/2” | 18.6 | 0.73 | 20.6 | 0.81 | 350 | 5,070 | 1,400 | 20,300 | 80 | 3.15 | 573 | 0.39 | MF+M00120-08 | – |
| H10133019* | 19 | -12 | 3/4” | 27.5 | 1.08 | 31.7 | 1.25 | 350 | 5,070 | 1,400 | 20,300 | 140 | 5.51 | 1,251 | 0.84 | IP+M01500-12 | SP+M05400-12 |
| H10133025* | 25 | -16 | 1” | 34.6 | 1.36 | 38.8 | 1.53 | 350 | 5,070 | 1,400 | 20,300 | 190 | 7.48 | 1,843 | 1.24 | IP+M01500-16 | SP+M05400-16 |
| H10133031* | 31 | -20 | 1.1/4” | 42.1 | 1.66 | 47.1 | 1.85 | 350 | 5,070 | 1,400 | 20,300 | 230 | 9.06 | 2,484 | 1.67 | IP+M01500-20 | – |
| H10133038* | 38 | -24 | 1.1/2” | 52.9 | 2.08 | 57.9 | 2.28 | 350 | 5,070 | 1,400 | 20,300 | 300 | 11.81 | 4,268 | 2.87 | IP+M01600-24 | – |
| H10133051* | 51 | -32 | 2” | 66.8 | 2.63 | 72.2 | 2.84 | 350 | 5,070 | 1,400 | 20,300 | 360 | 14.17 | 6,278 | 4.22 | IP+M01800-32 | – |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
