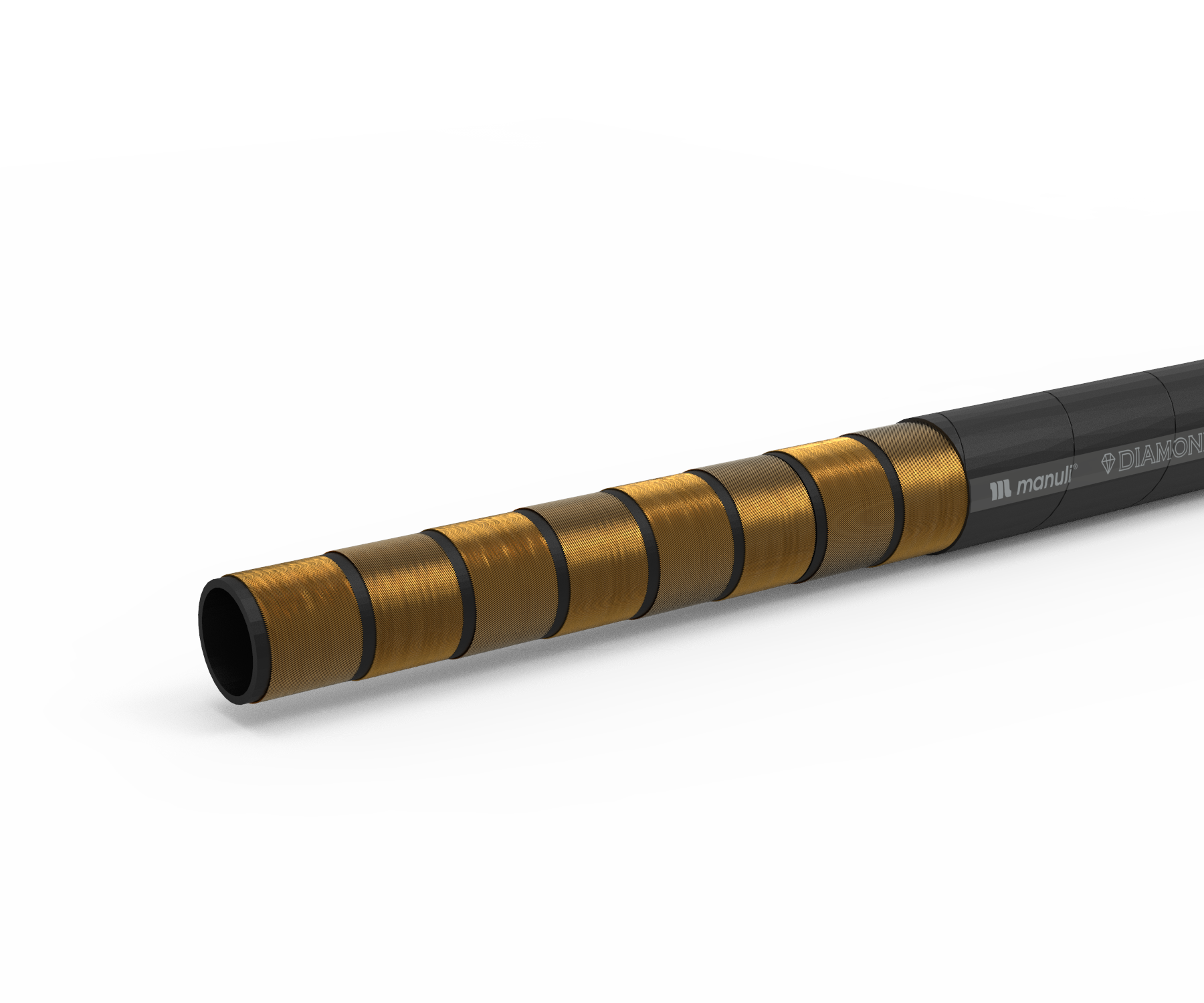

DIAMONDSPIR/62
VERY HIGH PRESSURE HYDRAULICS & JET GROUTING
KEY FEATURES
• Extremely robust structure for liquid concrete high pressure pumping, with safety factor 4:1
• Double-skive reliable fittings, also available in stainless steel
• Approved for very high pressure hydraulics with ISO 6803 fatigue test (200,000 cycles, T=100°C, WP)
APPLICATIONS & FLUIDS
- Liquid concrete, bentonite, for jet grouting (very high pressure)
- Hydraulic oils (heavy duty, high pressure)
- Water-based hydraulic oils, water
CONTINUOUS SERVICE TEMPERATURE RANGE
-40 °C, -40 °F
100 °C, 212 °F
TUBE
Oil resistant synthetic rubber
REINFORCEMENT
Multiple high tensile wire spirals
COVER
STRONG – TYPE “SC”
Synthetic rubber with high abrasion, ozone, weather and heat resistance and an extended operational temperature range
APPLICABLE SPECS
ISO 18752 Grade A Ext., EN 16228-6: safety factor 4:1
TYPE APPOVALS
MSHA; CU-TR
| TECHNICAL DATA | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||||||
| PART REF. | HOSE SIZE | R.O.D | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | |||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | Std 2 | |
| H10118031* | 31 | -20 | 1.1/4” | 51.2 | 2.02 | 54.4 | 2.14 | 621 | 9,005 | 2,484 | 36,018 | 600 | 23.62 | 5,638 | 3.79 | IP+M01900-20 | – |
| H10118038* | 38 | -24 | 1.1/2” | 59.3 | 2.33 | 63.2 | 2.49 | 621 | 9,005 | 2,484 | 36,018 | 800 | 31.50 | 7,100 | 4.77 | IS+M02900-24 | – |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
