CHEMKING/16 SDA

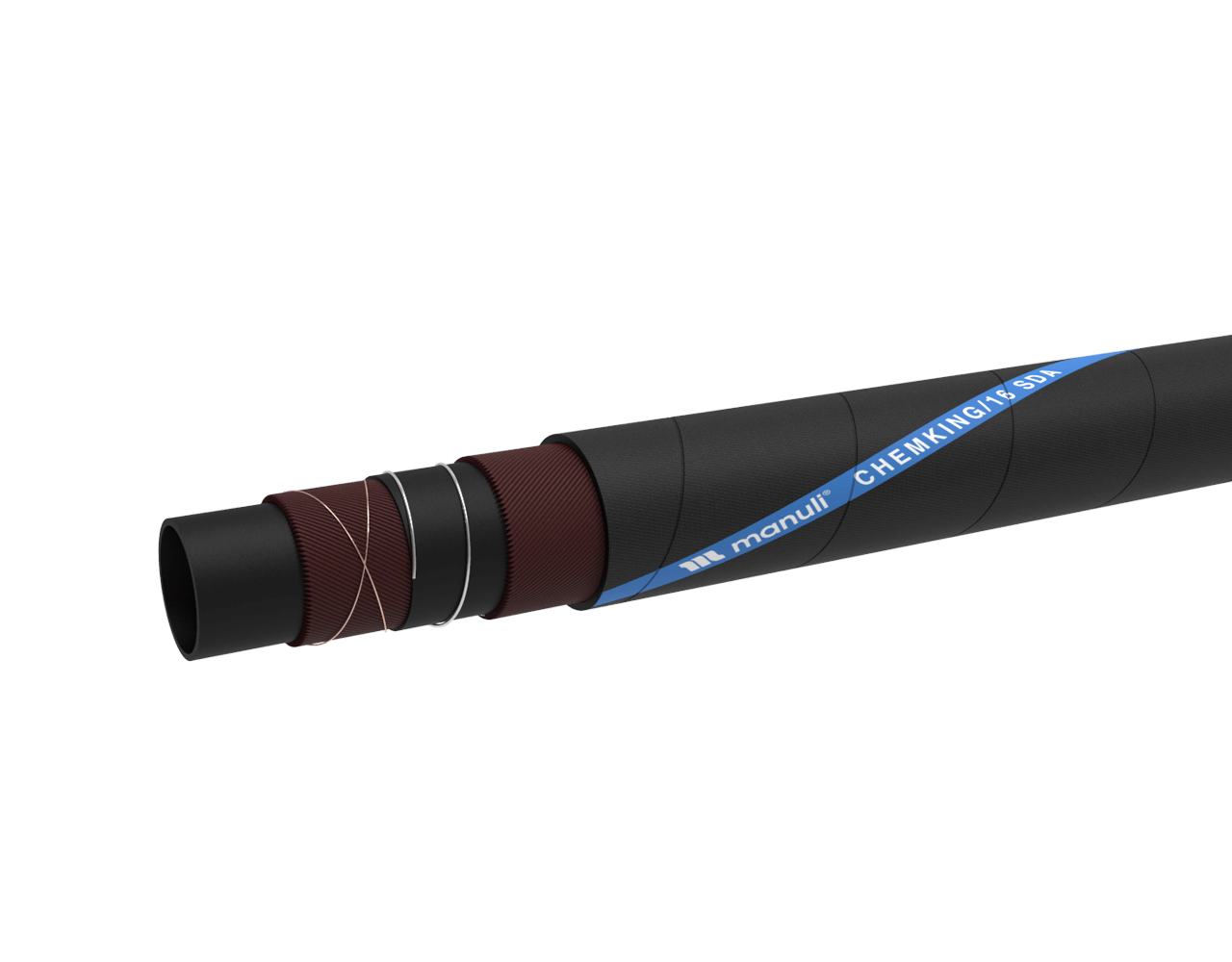

ANTI-STATIC UHMWPE SUCTION & DELIVERY HOSE FOR CHEMICAL
PRODUCTS – EN 12115
KEY FEATURES
• Hardwall suction and delivery structure
• Compact, lightweight and flexible
• Robust hose structure for longer life in severe applications
• Long length assemblies available – Max length: 61m
APPLICATIONS & FLUIDS
• Suction & delivery for chemicals, oils, fuels and bunkering
• Cover compound is tested an approved according to EN 60079-0:2012 (R ≤ 109 Ohm/m)
• Hose structure designed to assure and maintain the requirements for the ATEX working conditions
| CONTINUOUS SERVICE TEMPERATURE RANGE -20 °C, -4 °F 100 °C, 212 °F TUBE REINFORCEMENT COVER APPLICABLE SPECS STANDARD PACKAGING |

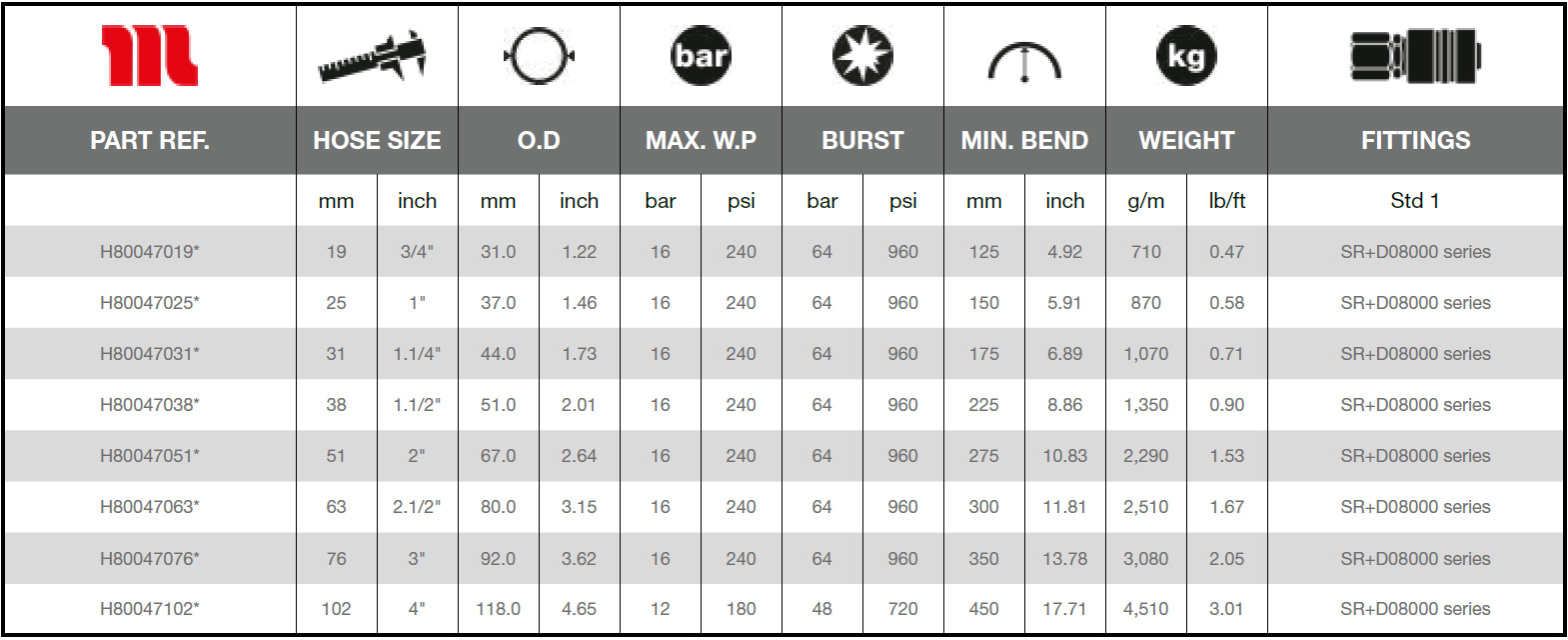

| TECHNICAL DATA | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
||||||
| PART REF. | HOSE SIZE | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | ||||||
| mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | |
| H80047019* | 19 | 3/4″ | 31.0 | 1.22 | 16 | 240 | 64 | 960 | 125 | 4.92 | 710 | 0.47 | SR+D08000 series |
| H80047025* | 25 | 1″ | 37.0 | 1.46 | 16 | 240 | 64 | 960 | 150 | 5.91 | 870 | 0.58 | SR+D08000 series |
| H80047031* | 31 | 1.1/4″ | 44.0 | 1.73 | 16 | 240 | 64 | 960 | 175 | 6.89 | 1,070 | 0.71 | SR+D08000 series |
| H80047038* | 38 | 1.1/2″ | 51.0 | 2.01 | 16 | 240 | 64 | 960 | 225 | 8.86 | 1,350 | 0.9 | SR+D08000 series |
| H80047051* | 51 | 2″ | 67.0 | 2.64 | 16 | 240 | 64 | 960 | 275 | 10.83 | 2,290 | 1.53 | SR+D08000 series |
| H80047063* | 63 | 2.1/2″ | 80.0 | 3.15 | 16 | 240 | 64 | 960 | 300 | 11.81 | 2,510 | 1.67 | SR+D08000 series |
| H80047076* | 76 | 3″ | 92.0 | 3.62 | 16 | 240 | 64 | 960 | 350 | 13.78 | 3,080 | 2.05 | SR+D08000 series |
| H80047102* | 102 | 4″ | 118.0 | 4.65 | 12 | 180 | 48 | 720 | 450 | 17.71 | 4,510 | 3.01 | SR+D08000 series |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Manuli Crimp App or Manuli Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our ‘Safety Guide’.
