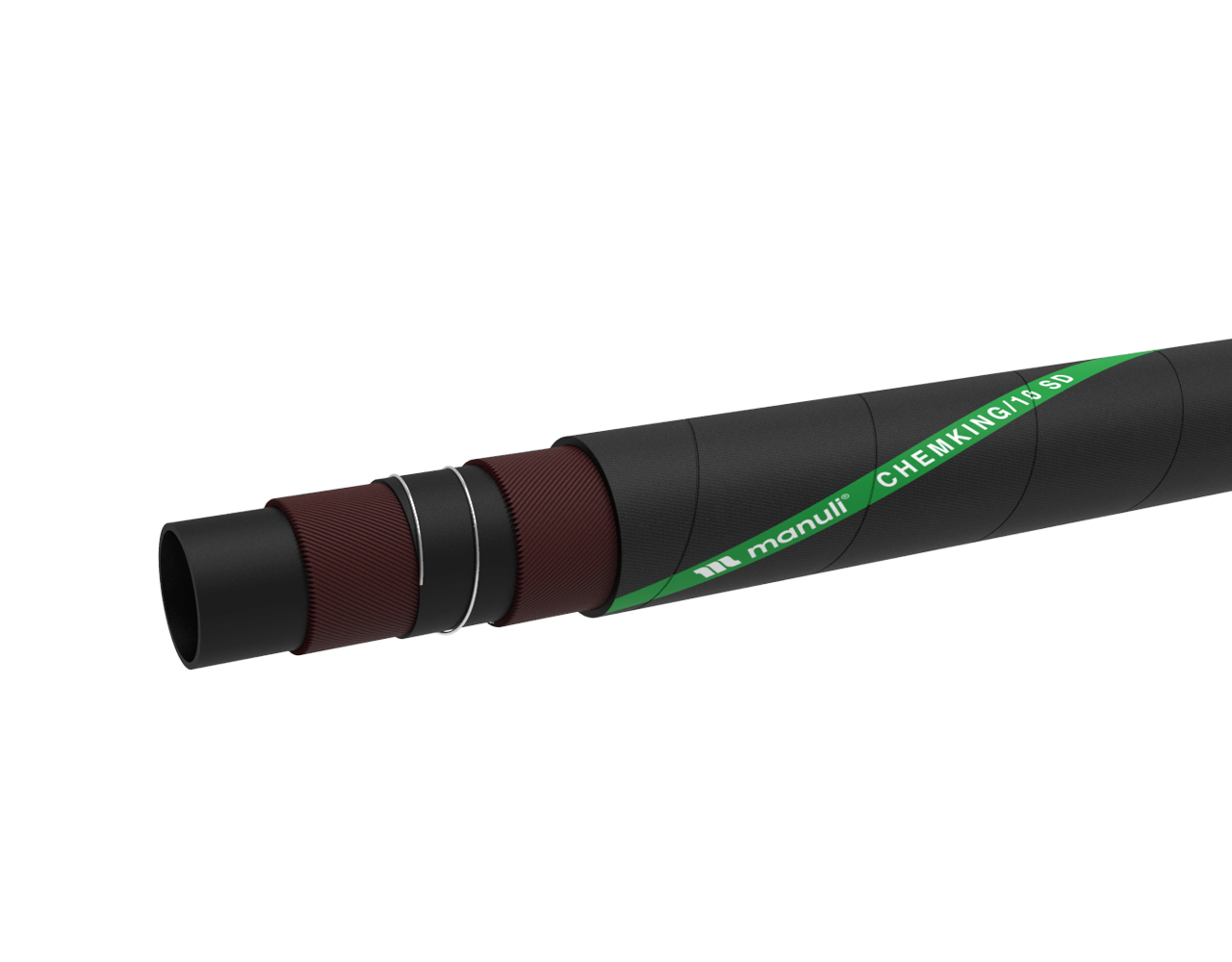

CHEMKING/10 SD
FKM SUCTION & DELIVERY HOSE FOR AGGRESSIVE CHEMICALS
KEY FEATURES
• Hardwall suction and delivery structure
• Compact, lightweight and flexible
• Robust hose structure for longer life in severe applications
• Long length assemblies available – Max length: 40m
APPLICATIONS & FLUIDS
• Suction & delivery of aggressive chemicals and acids in high concentrations
| CONTINUOUS SERVICE TEMPERATURE RANGE -35 °C, -31 °F 100 °C, 212 °F TUBE REINFORCEMENT COVER APPLICABLE SPECS STANDARD PACKAGING |

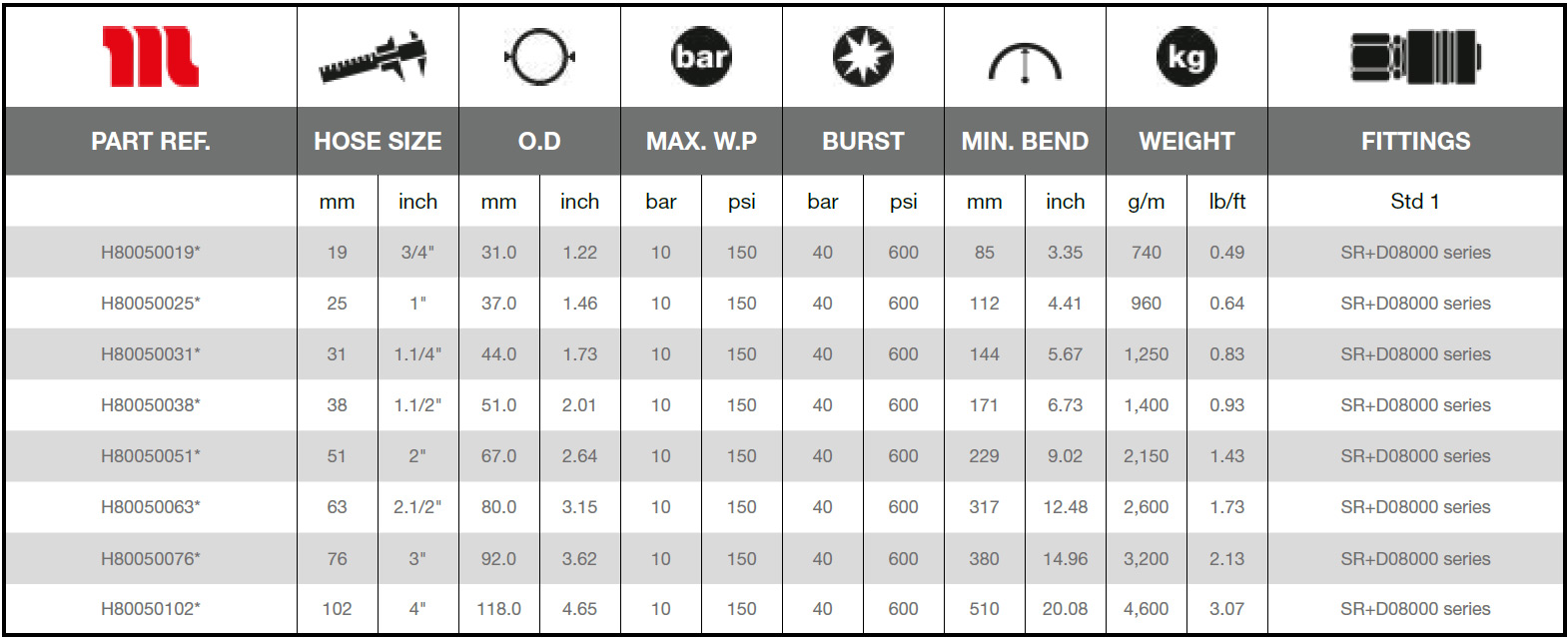

| TECHNICAL DATA | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
||||||
| PART REF. | HOSE SIZE | O.D | MAX. W.P | BURST | MIN. BEND | WEIGHT | FITTINGS | ||||||
| mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | Std 1 | |
| H80050019* | 19 | 3/4″ | 31.0 | 1.22 | 10 | 150 | 40 | 600 | 85 | 3.35 | 740 | 0.49 | SR+D08000 series |
| H80050025* | 25 | 1″ | 37.0 | 1.46 | 10 | 150 | 40 | 600 | 112 | 4.41 | 960 | 0.64 | SR+D08000 series |
| H80050031* | 31 | 1.1/4″ | 44.0 | 1.73 | 10 | 150 | 40 | 600 | 144 | 5.67 | 1,250 | 0.83 | SR+D08000 series |
| H80050038* | 38 | 1.1/2″ | 51.0 | 2.01 | 10 | 150 | 40 | 600 | 171 | 6.73 | 1,400 | 0.93 | SR+D08000 series |
| H80050051* | 51 | 2″ | 67.0 | 2.64 | 10 | 150 | 40 | 600 | 229 | 9.02 | 2,150 | 1.43 | SR+D08000 series |
| H80050063* | 63 | 2.1/2″ | 80.0 | 3.15 | 10 | 150 | 40 | 600 | 317 | 12.48 | 2,600 | 1.73 | SR+D08000 series |
| H80050076* | 76 | 3″ | 92.0 | 3.62 | 10 | 150 | 40 | 600 | 380 | 14.96 | 3,200 | 2.13 | SR+D08000 series |
| H80050102* | 102 | 4″ | 118.0 | 4.65 | 10 | 150 | 40 | 600 | 510 | 20.08 | 4,600 | 3.07 | SR+D08000 series |
